Quick Details
-
Voltage:
-
As request
-
Power:
-
0.47KW-8.2KW
-
Weight:
-
3046 kg
-
Dimension(L*W*H):
-
1816*750*1040mm
-
Name:
-
Automatic screw press sludge dewatering machine
-
Control:
-
Automatic Control Box
-
Material:
-
Stainless Steel 304
-
Function:
-
Liquid Solid Fine Filteration
-
Application:
-
food processing wastewater, industrial wastewater plant
-
Advantage:
-
High efficiency,Low Noise
-
Initial moisture:
-
94-97%
-
Moisture after treatment:
-
75-82%
-
Working principle:
-
Screw press, without filter cloth
-
Type of the sales:
-
Factory directory sales
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nigeria, Tajikistan
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE, ISO9001, CE
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TIANLANG
-
Voltage:
-
As request
-
Power:
-
0.47KW-8.2KW
-
Weight:
-
3046 kg
-
Dimension(L*W*H):
-
1816*750*1040mm
-
Name:
-
Automatic screw press sludge dewatering machine
-
Control:
-
Automatic Control Box
-
Material:
-
Stainless Steel 304
-
Function:
-
Liquid Solid Fine Filteration
-
Application:
-
food processing wastewater, industrial wastewater plant
-
Advantage:
-
High efficiency,Low Noise
-
Initial moisture:
-
94-97%
-
Moisture after treatment:
-
75-82%
-
Working principle:
-
Screw press, without filter cloth
-
Type of the sales:
-
Factory directory sales
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nigeria, Tajikistan
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE, ISO9001, CE
Factory price multi purpose sludge dewatering screw press screw oil press palm oil screw press
Product Overview

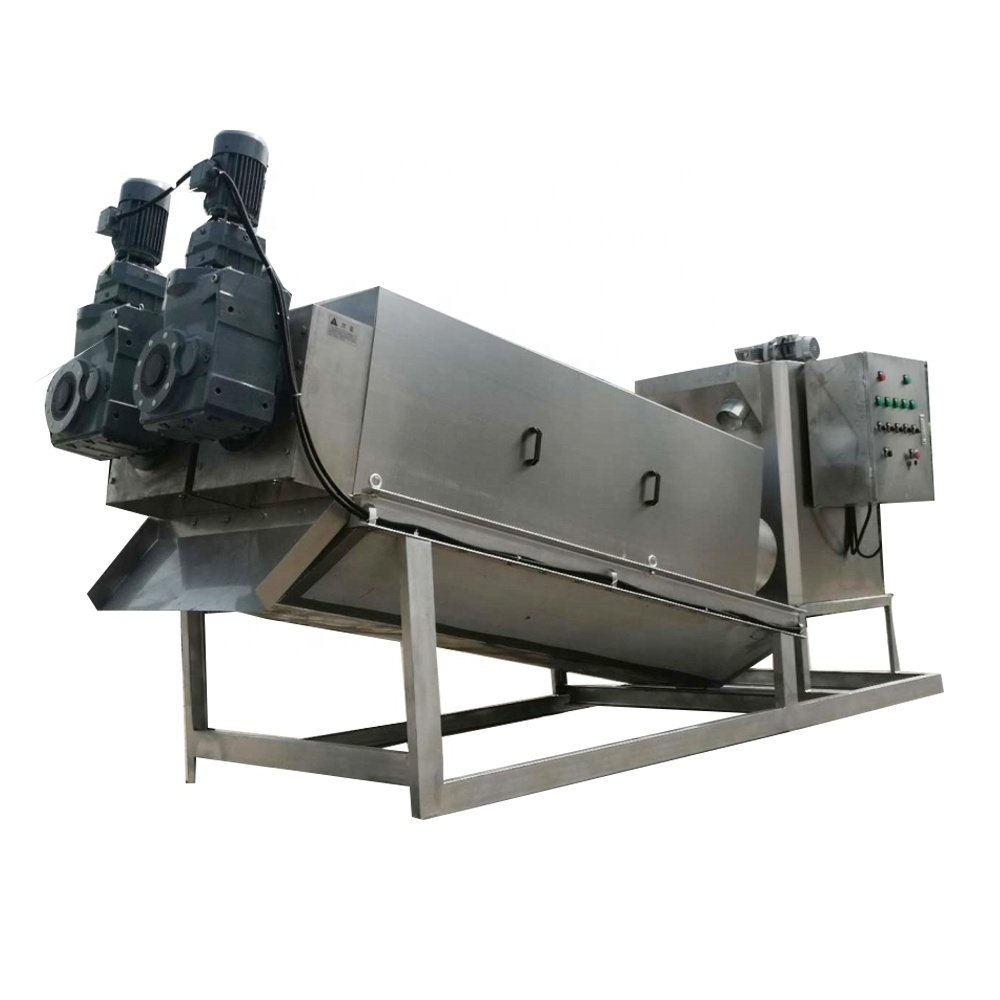

Automatic screw press sludge dewatering machine
is a screw press dewatering equipment.
It can be used to effectively concentrate and dewater sludge wastewater.
Our dewatering screw press can thicken sludge water to 20% of the dry matter content of municipal sludge, and more for minerals and industrial sludge, which can provide efficient decontamination effects. In terms of quality, the equipment surpasses traditional sedimentation sludge removal and other technologies.
Features
1. Automatic continuous operation
2. Compact design with flocculation and dewatering
3. Low power and water consumption
4. Low operation cost
5. No filter cloth, no clogging
6. No need for sludge thickener
7. Easy operation and maintenance
8. No vibration and noise
2. Compact design with flocculation and dewatering
3. Low power and water consumption
4. Low operation cost
5. No filter cloth, no clogging
6. No need for sludge thickener
7. Easy operation and maintenance
8. No vibration and noise
Working Priciple
Concurrent forced water; thin-layer dehydration; moderately extend the dehydration path
Thickening:
When the shaft is driven by a screw, the ring moving around the shaft will move up and down relatively. Most of the water is pressed out of the concentration zone and falls into the filtrate tank to maintain gravity.
Dehydration:
The thickened sludge continuously advances from the thickening zone to the dewatering zone. As the thread pitch of the screw shaft becomes narrower, the pressure in the filter chamber becomes higher and higher. In addition to the pressure generated by the back pressure plate, the sludge is also under great pressure, and a dry sludge cake is produced.
Self-cleaning:
The moving ring is continuously rotated up and down under the push of the moving screw shaft, and the gap between the fixed ring and the moving ring is cleaned at the same time to prevent the blocking phenomenon that often occurs during traditional dehydration.
Model parameter
|
Model
|
Conventional processing capacity(m3/h)
|
DS standard treating capacity
|
Power consumption(KW)
|
Dimensions(mm)
|
|
|
|
Low-High consistency
|
|
|
|
TLDL131
|
0.1-3
|
6-10 kg/h
|
0.47
|
1816*750*1040
|
|
TLDL132
|
0.2-6
|
12-20 kg/h
|
0.57
|
2065*900*1040
|
|
TLDL201
|
0.3-4.5
|
15-25 kg/h
|
0.74
|
2500*630*1350
|
|
TLDL202
|
0.2-5
|
18-30 kg/h
|
0.74
|
2500*680*1450
|
|
TLDL301
|
0.6-9
|
30-50 kg/h
|
1.11
|
2500*930*1350
|
|
TLDL302
|
1.0-1.5
|
60-100 kg/h
|
0.92
|
3200*970*1790
|
|
TLDL303
|
2-30
|
90-150 kg/h
|
1.65
|
3600*1200*1790
|
Application Range
Wide ranges of a
pplications such as :
wastewater treatment plants, food processing industry, chemical industry and industrial wastewater and
aquaculture wastewater treatment products.For example:
1. Agricultural wastewater
2. Breeding plant/Farming wastewater
3. Chemical wastewater
4. Electric power wastewater
5. Municipal sewage treatment plant
6. Food and beverage sewage
7. Leather sewage
8. Pharmaceutical wastewater
9. Welding material sewage
10. Papermaking wastewater
11. Printing and dyeing wastewater
12. Glue wastewater
2. Breeding plant/Farming wastewater
3. Chemical wastewater
4. Electric power wastewater
5. Municipal sewage treatment plant
6. Food and beverage sewage
7. Leather sewage
8. Pharmaceutical wastewater
9. Welding material sewage
10. Papermaking wastewater
11. Printing and dyeing wastewater
12. Glue wastewater
Effect after sewage sludge treatment
