Quick Details
-
Max. Spindle Speed (r.p.m):
-
4200 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
11-15
-
Max. Turned Length (mm):
-
1000
-
Travel (X Axis)(mm):
-
270 mm
-
Travel (Z Axis)(mm):
-
810 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2100*1386*1435
-
Brand Name:
-
BTMC
-
Model Number:
-
BR570DY
-
Voltage:
-
380V, Customers' Requirement
-
Weight (KG):
-
2700
-
CNC or Not:
-
CNC
-
Name:
-
CNC Slant Bed Lathe
-
Color:
-
Customers' Requirement
-
Main motor power:
-
11KW
-
Product name:
-
CNC Lathe Mechine
-
Keyword:
-
Automatic CNC Lathe Machine
-
Function:
-
Machining Metal
-
Machine Type:
-
Horizontal CNC Turning Lathe
-
Spindle speed:
-
4200rpm
Quick Details
-
Type:
-
TURNING CENTER
-
Max. Length of Workpiece (mm):
-
750
-
Year:
-
NEW
-
Max. Spindle Speed (r.p.m):
-
4200 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
11-15
-
Max. Turned Length (mm):
-
1000
-
Travel (X Axis)(mm):
-
270 mm
-
Travel (Z Axis)(mm):
-
810 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2100*1386*1435
-
Brand Name:
-
BTMC
-
Model Number:
-
BR570DY
-
Voltage:
-
380V, Customers' Requirement
-
Weight (KG):
-
2700
-
CNC or Not:
-
CNC
-
Name:
-
CNC Slant Bed Lathe
-
Color:
-
Customers' Requirement
-
Main motor power:
-
11KW
-
Product name:
-
CNC Lathe Mechine
-
Keyword:
-
Automatic CNC Lathe Machine
-
Function:
-
Machining Metal
-
Machine Type:
-
Horizontal CNC Turning Lathe
-
Spindle speed:
-
4200rpm

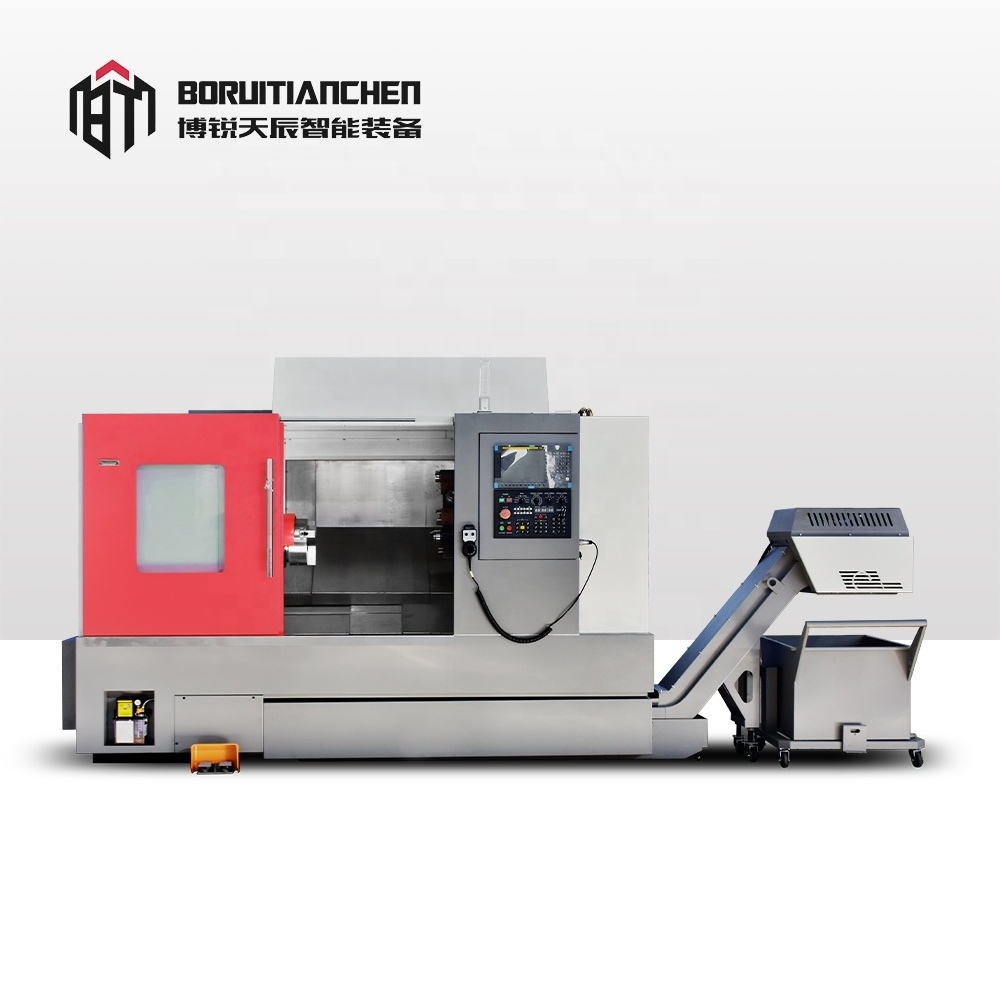

BR-570DY Cheap Price Slant Bed Lathe
Products Description
Features:
1. The series CNC lathe is designed with high strength, rigidity and with advanced machine structure, defense,and security.
2.The machine adopt the high rigidity cast iron, base and lathe bed monolithic structure, high precision through-hole structure, vibration resistance designed and high range spindle motor.
3.The bearings and feeding screw adopt the world famous brand, equipped with multi-position tool post, tools are easily changed and changed fast with high precision.
.
Application
：
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.
Specification
|
Machine Model
|
Model
|
BR-570DYx750
|
|
Major parameter
|
The maximum turning diameter on the bed
|
Φ650
|
|
|
maximum machining diameter
|
Φ400 (SHDY16BR Cutter to edge 330)
|
|
|
Maximum machining diameter on the tool holder
|
Φ360
|
|
|
Maximum processing length
|
720
|
|
Spindle and chuck parameters
|
Spindle head form (optional chuck)
|
A2-6 ( 8″)
|
|
|
Recommended spindle motor power
|
11-15KW
|
|
|
Spindle speed
|
4200rpm
|
|
|
Spindle hole diameter
|
66
|
|
|
Bar diameter
|
52
|
|
Feed section parameters
|
X/Z axis screw specifications
|
3210/4010
|
|
|
X/Z axis limit travel
|
270/830
|
|
|
Recommended X/Z axis motor torque
|
11N.M/15N.M
|
|
|
X/Z axis rail specifications
|
45/45
|
|
|
X/Z axis connection method
|
Direct link
|
|
Turret
|
Turret type
|
Power Turret
|
|
|
Recommended turret center height dimension
|
170
|
|
Tailstock
|
Maximum travel of tailstock
|
750
|
|
|
Tailstock sleeve diameter
|
80
|
|
|
Tailstock sleeve travel
|
80
|
|
|
Tailstock sleeve tapered hole
|
MT5
|
|
Overall Dimension
|
Bed type and inclination
|
30°
|
|
|
Machine size（L * W * H)
|
2077 ×1297 ×1427
|
|
Weight
|
Weight (approx. weight)
|
2800kg
|
