Quick Details
-
Rated Voltage:
-
≥40Kv
-
Tensile Strength:
-
Good
-
Product name:
-
3841 Epoxy Laminated Glass Cloth Rod
-
Color:
-
Green Yellow
-
Density:
-
1.7-1.8g/cm3
-
Diameter:
-
8-200mm
-
Length:
-
1000mm/1200mm
-
Axial Compressive Strength:
-
≥175Mpa
-
Insulation Resistance After Immersion:
-
≥1000MΩ
-
Dielectric Loss Factor(50Hz):
-
≤0.03
-
Water Absorption:
-
≤3Mg/cm2
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hitex
-
Model Number:
-
3841
-
Rated Voltage:
-
≥40Kv
-
Tensile Strength:
-
Good
-
Product name:
-
3841 Epoxy Laminated Glass Cloth Rod
-
Color:
-
Green Yellow
-
Density:
-
1.7-1.8g/cm3
-
Diameter:
-
8-200mm
-
Length:
-
1000mm/1200mm
-
Axial Compressive Strength:
-
≥175Mpa
-
Insulation Resistance After Immersion:
-
≥1000MΩ
-
Dielectric Loss Factor(50Hz):
-
≤0.03
-
Water Absorption:
-
≤3Mg/cm2

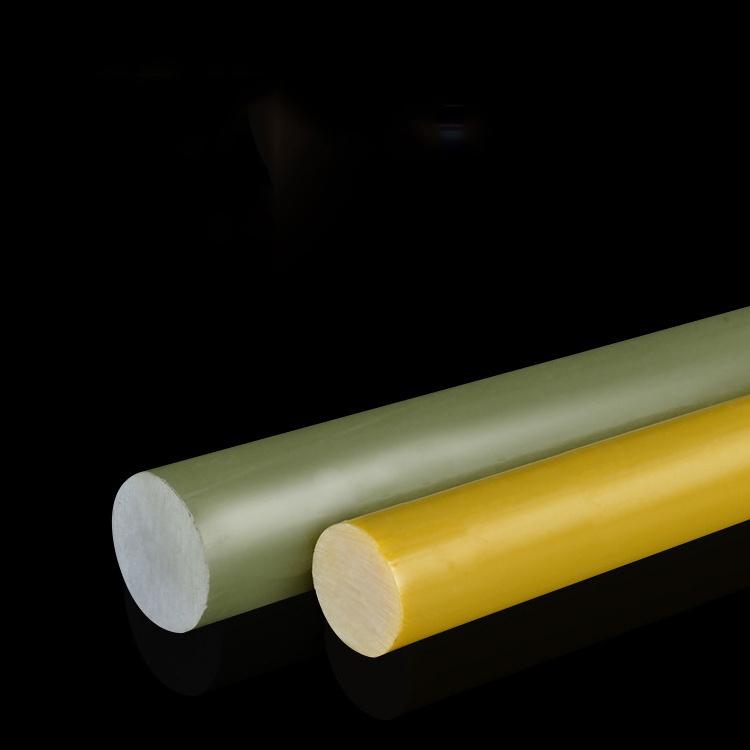

3841 Epoxy Laminated Glass Cloth Rod
Epoxy glass cloth laminated rod is a rod formed by immersing an alkali-free glass fiber cloth in an epoxy resin and then thermally drying to form a prepreg. After being wound with the prepreg, it is put into a specific abrasive tool and hot-pressed.
Feature:
l Has high mechanical and electrical performance
l Excellent mechanical processing performance, high degree of automatic processing
l Good water absorption resistance, can be used in humid environment and transformer oil
Suitable for use as insulation structural parts in motors and electrical equipment, and can be used in humid environments and transformer oils.
|
Item No. |
Color |
Diameter |
Density |
Length |
|
3841-Y |
Light Yellow |
8-200mm |
1.7-1.8g/cm 3 |
1000mm/1200mm |
|
3841-G |
Light Green |
8-200mm |
1.7-1.8g/cm 3 |
1000mm/1200mm |
*Specific products could be made according to customers’requirements.
|
Epoxy Laminated Glass Cloth Rod(3841) |
|
|
Properties |
Value |
|
Density |
1.7-1.8g/cm 3 |
|
Flexural Strength At Perpendicular Lamination (Under Normal) |
≥220Mpa |
|
Axial Compressive Strength |
≥175Mpa |
|
Breakdown Voltage At Parallel Lamination(Transformer Oil At 90 °C) |
≥40Kv |
|
Insulation Resistance After Immersion |
≥1000MΩ |
|
Dielectric Loss Factor(50Hz) |
≤0.03 |
|
Water Absorption |
≤3Mg/cm 2 |
|
Thermal Index |
155 |
*Executive Standard : GB-T 5132.1-2009 IEC61212-1:2006
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
If you have any inquiry, welcome to ask for quote and we will relpy you as soon as possible.
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A
