Quick Details
-
Model Number:
-
60A
-
Output Frequency:
-
/
-
Size:
-
L315*W157*H70(MM)
-
Weight:
-
2.4KG
-
Factory:
-
IDEALPLUSING
-
Name:
-
12v dc battery charger
-
Material of shell:
-
Aluminum
-
Protection:
-
Overload
-
Conversion Efficiency:
-
96%
-
Certificate:
-
CE ROHS, CE & Rohs
-
Warranty:
-
1 Year
Quick Details
-
Output Current:
-
60A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IDEALPLUSING
-
Model Number:
-
60A
-
Output Frequency:
-
/
-
Size:
-
L315*W157*H70(MM)
-
Weight:
-
2.4KG
-
Factory:
-
IDEALPLUSING
-
Name:
-
12v dc battery charger
-
Material of shell:
-
Aluminum
-
Protection:
-
Overload
-
Conversion Efficiency:
-
96%
-
Certificate:
-
CE ROHS, CE & Rohs
-
Warranty:
-
1 Year

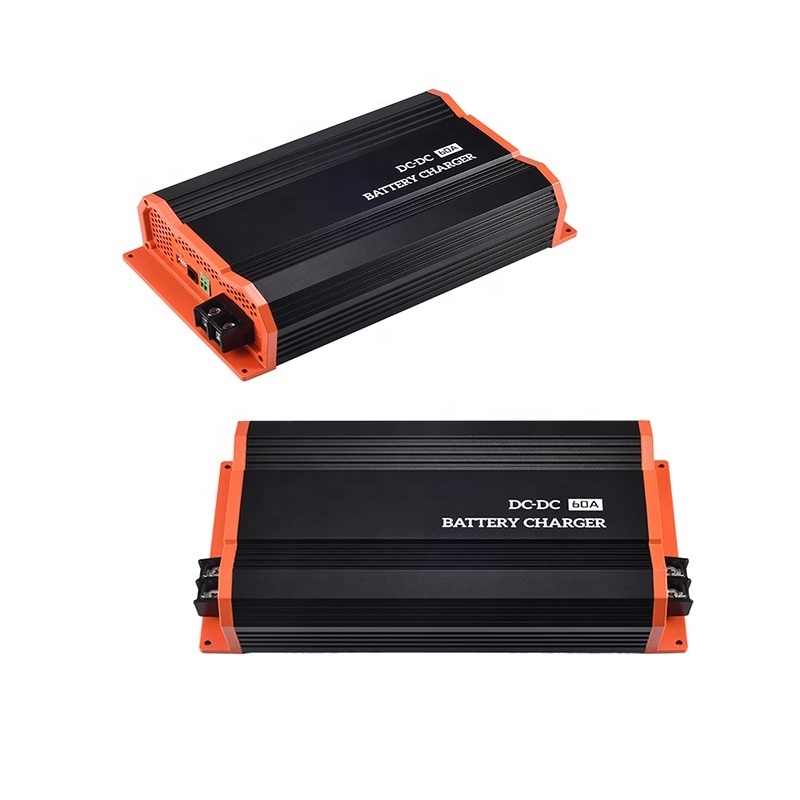

12V TO 12.6V 14.6V 14.7V 60A DC DC CONVERTER
Specification :
- Input: 12VDC(8~16VDC)
- Output: 1 2.6/14.6/14.7 VDC 60A
- Max power: 60A
- Material of shell: Aluminum
- Size:L315*W157*H70(MM)
- NW:2.4KG,GW: 2.8KG
- Design: Non-isolated
I . INTRODUCTION
|
1 |
DC-DC series battery charger is the most effective way to charge auxiliary or household batteries from alternator/starter batteries. |
|
2 |
DC-DC is compatible with a variety of alternator types and provides the correct charging for AGM, immersion, gel even deep circulating batteries. |
|
3 |
With a three-level charger and a variety of electronic protection, car owners can be sure that their batteries are charging automatically in the best way. |
|
4 |
Compact and rugged vehicles can be easily installed on RVs, commercial vehicles, ships, yachts, and more. |
II . KEY FEATURE
|
1 |
compatible with a variety of 12V batteries: AGM, flood cell, gel battery, and lithium battery. |
|
2 |
Intelligent protection functions include overvoltage, ultra temperature, and reverse polarity. |
|
3 |
It integrates battery isolation and battery charger |
|
4 |
Compact structure, but strong under all conditions |
|
5 |
The 3-level battery charger makes your battery power reach 100%. |
III
. M
AIN SPECIFICATION
|
Brand |
IDEALPLUSING |
||||
|
Model |
IPS-DTDC12S1220 |
IPS-DTDC12S1240 |
IPS-DTDC12S1260 |
||
|
Rate input voltage |
12VDC |
||||
|
Input voltage range |
8-16VDC |
||||
|
Rated charging current |
20A |
40A |
60A |
||
|
Max rated output power |
240W |
480W |
720W |
||
|
Residual ripple of output voltage at rated current |
≤50mV@20A |
≤50mV@40A |
≤50mV@60A |
||
|
Charging voltage range |
13.2VDC~14.7VDC depending on DIP switch |
||||
|
Apply Battery type |
Lithium(3S) |
12.6VDC |
|||
|
Apply Battery type |
LiFePO4(4S) |
14.6VDC |
|||
|
Apply Battery type |
lead Acid(1S) |
14.7VDC |
|||
|
Efficiency |
≤90% |
||||
|
Idle power consumption |
≤0.4A |
||||
|
Operational temperature |
-20°C~+50°C |
||||
|
Humidity |
<95% Non-condensing |
||||
|
Dimension (W*H*L) |
L215*W175*H70(MM) |
L265*W175*H70(MM) |
L315*W157*H70(MM) |
||
|
Net Weight |
1. 4KG |
1. 9KG |
2. 4KG |
||
|
Gross Weight |
1.8KG |
2.3KG |
2.8KG |
||
