Quick Details
-
OEM:
-
OEM Service Accepted
-
Packing:
-
First in foam, then in carton
-
Product name:
-
Windsock
-
Flag Material:
-
Waterproof Oxford cloth
-
Size:
-
1.5m
-
Type:
-
Printed
-
Flagpole Material:
-
304 stainless steel
Quick Details
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
KORAYEN
-
Color:
-
orange/red/white
-
OEM:
-
OEM Service Accepted
-
Packing:
-
First in foam, then in carton
-
Product name:
-
Windsock
-
Flag Material:
-
Waterproof Oxford cloth
-
Size:
-
1.5m
-
Type:
-
Printed
-
Flagpole Material:
-
304 stainless steel
Specification

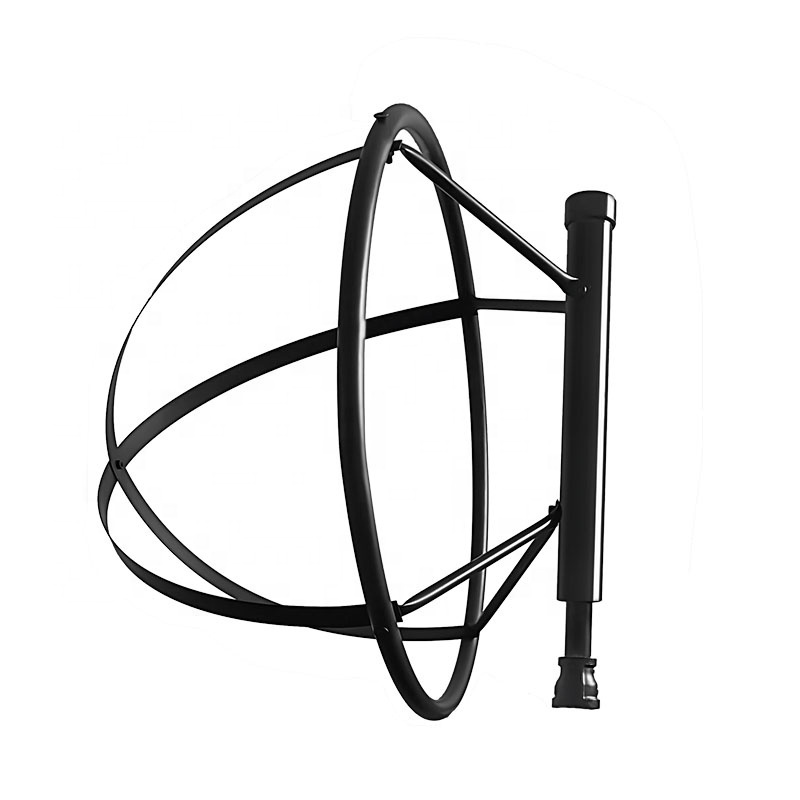

Integrated Windward Bag
.
The integrated wind direction bag is made of base, main rod, moving rod and wind bag; the main part is high quality stainless steel material, the moving rod part adopts high quality stainless steel waterproof bearing with small starting wind speed and durable, etc. The cloth wind bag is made of imported thick cloth, nylon and other lightweight and high strength waterproof cloth, which has the advantages of high flexibility and long service life. The product installation is simple, the transportation is convenient. Widely used in meteorology, chemical industry, mining area, agriculture, oil field exploration and other industries. Wind bags can be customized according to customer needs. For example: red and white, with reflective strip (yellow or red), size customization, etc.
Installation guide
Installation location selection
: this product is suitable for installation on the flat top of the building or the plane of the iron tower, the surrounding should be open, the ground personnel are easy to observe.
Installation:
cement ground with 8×80 expansion bolts fixed base; iron tower plane with screw fixed base; main rod and base installed in place, in turn installed on the rod / support ring.
Attention
: the main rod should be installed perpendicular to the ground. If the slope of the installation is large, a 30×30 cement platform should be cast first, such as only a small angle of inclination can be adjusted in the lower part of the base.
Lightning protection measures:
such as high, the base and lightning rod, lightning belt can be firmly connected.
Product Description
item
|
value
|
Place of Origin
|
Shandong,China
|
Brand Name
|
KORAYEN
|
Color
|
orange/red/white
|
OEM
|
OEM Service Accepted
|
Packing
|
First in foam, then in carton
|
