Quick Details
-
Brand Name:
-
SZFAST
-
Model Number:
-
FLOW SENSOR
-
Material:
-
Nylon and fibre
-
Product Color:
-
Black
-
Product Type:
-
Latched Hall Element
-
Output Signal:
-
Pulse waves (Hz)
-
Working Voltage:
-
3V~18V DC
-
Max. Current:
-
25MA(DC12V)/15MA(DC5V)
-
Start-up Flow:
-
≥1L/Min.
-
Flow Feature:
-
F=4N (F=HZ, N=L/Min.)
-
Keyword:
-
flow sensor
-
WARRANTY:
-
1years
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZFAST
-
Model Number:
-
FLOW SENSOR
-
Material:
-
Nylon and fibre
-
Product Color:
-
Black
-
Product Type:
-
Latched Hall Element
-
Output Signal:
-
Pulse waves (Hz)
-
Working Voltage:
-
3V~18V DC
-
Max. Current:
-
25MA(DC12V)/15MA(DC5V)
-
Start-up Flow:
-
≥1L/Min.
-
Flow Feature:
-
F=4N (F=HZ, N=L/Min.)
-
Keyword:
-
flow sensor
-
WARRANTY:
-
1years

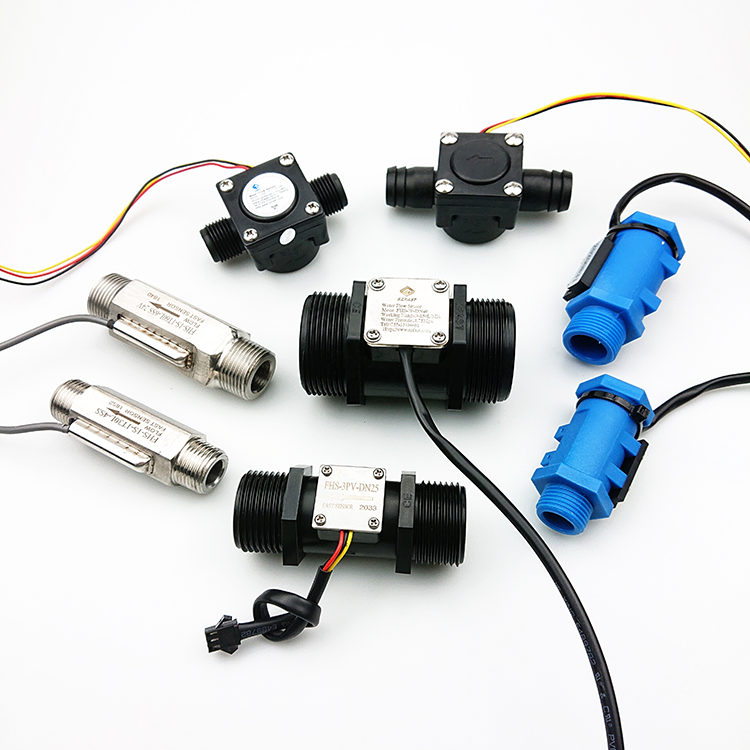

Product Description
|
Product Name
|
water flow sensor
|
|
Application
|
chillers,water heater and other circulating water system.
|
|
Material
|
Nylon,Stainless Steel,Brass
|
|
Flow range
|
2-30L/min
0.3-5L/min
|
|
Electrical Data
|
4-24 VDC
|
|
Max pressure
|
1 MPa ~ 2MPa
|
|
Cable type
|
UL1007-AWG24
|
|
Output
|
red wire connect to "+", black wire connect to "-", yellow wire is pulse signal output.
|
|
Connection size
|
1/4'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''.
|
|
Sensor
|
Hall sensor
|
