Quick Details
-
Range of Spindle Speed(r.p.m):
-
20 - 6000
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Model Number:
-
XK7124
-
Table Travel (mm):
-
425/245/530mm
-
Year:
-
brand new
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1376x1296x1974mm
-
Weight (KG):
-
700
-
Spindle Motor Power(kW):
-
3.7KW
-
Max. Table Load(kg):
-
300 kg
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
CNC milling machine
-
Logo printing:
-
Available
-
Spindle taper:
-
BT30
-
CNC mchine price:
-
Wholesale Price
-
Machine type:
-
Machining center
-
Spindle speed:
-
6000rpm
-
Weight:
-
600kgs
-
Application:
-
Metal Machining
-
After Warranty Service:
-
Online support
Quick Details
-
Table Travel (X) (mm):
-
425 mm
-
Table Travel (Y) (mm):
-
245 mm
-
Table Travel (Z) (mm):
-
530 mm
-
Range of Spindle Speed(r.p.m):
-
20 - 6000
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Model Number:
-
XK7124
-
Table Travel (mm):
-
425/245/530mm
-
Year:
-
brand new
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1376x1296x1974mm
-
Weight (KG):
-
700
-
Spindle Motor Power(kW):
-
3.7KW
-
Max. Table Load(kg):
-
300 kg
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
CNC milling machine
-
Logo printing:
-
Available
-
Spindle taper:
-
BT30
-
CNC mchine price:
-
Wholesale Price
-
Machine type:
-
Machining center
-
Spindle speed:
-
6000rpm
-
Weight:
-
600kgs
-
Application:
-
Metal Machining
-
After Warranty Service:
-
Online support
Product Description

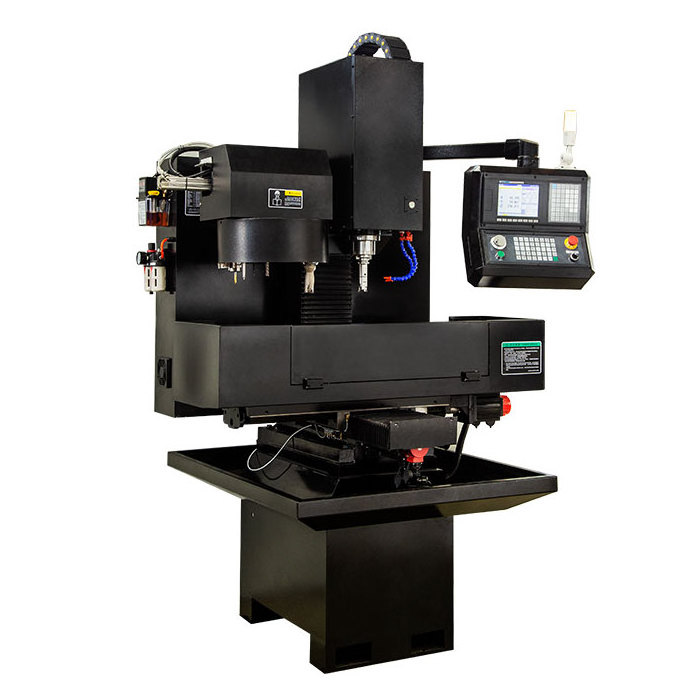

XK7124 auto tool change cnc milling machine 3 axis in sale main a pplication:
The machine can be used in factory and workshop to make molds.
Main Features:
1. XK7124 Small size vertical CNC milling machine with CE certificate:
2. BT30 spindle.
3. Function: drilling , tapping, chamfering, bearing, milling face thread, handle and tower
4. Aesthetic and elegant modeling.
5. High efficiency for automatic knife changing.
6. The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
|
Specification
|
XK7124
|
|
Worktable size(LxW)
|
800x240mm
|
|
X axis travel
|
425mm
|
|
Y axis travel
|
245mm
|
|
Z axis travel
|
530mm
|
|
Distance from spindle nose to worktable surface
|
105-635mm
|
|
Rapid feed speed(X/Y/Z)
|
10/10/10 m/min
|
|
Spindle taper
|
BT30
|
|
Max.spindle speed
|
6000rpm
|
|
Main motor power
|
3.7kw
|
|
Machine size(LxWxH)
|
1540x1300x1960mm/1730x1330x2060mm
|
|
Machine weight
|
600kgs/750kgs
|
Detailed Images
Rigid Worktable
6000rpm Spindle
