- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
L1 brackets
-
Description:
-
Thin type safety light curtain, Senmatrix
-
Manufacturing Date Code:
-
2024
-
Model Number:
-
Senmatrix
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Senmatrix
-
Theory:
-
Thru-beam
-
Output:
-
NPN/ PNP(NC/NO)
-
Beam center spacing/Optical axis spacing:
-
30mm
-
Number of beams:
-
6-40
-
protective height:
-
200-1560
-
Product name:
-
Light Curtain Safety Beam Sensors
-
Material:
-
Aluminum Alloy
-
MOQ:
-
100 Sets
-
Warranty:
-
1 Year
-
Output method:
-
PNP NPN
-
Light source:
-
Infrared LED
-
Application:
-
Mechanical Safety Operation Protection
Quick Details
-
Use:
-
safe protection
-
Series:
-
Thin type
-
Features:
-
Thin
-
Mounting Type:
-
L1 brackets
-
Description:
-
Thin type safety light curtain, Senmatrix
-
Manufacturing Date Code:
-
2024
-
Model Number:
-
Senmatrix
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Senmatrix
-
Theory:
-
Thru-beam
-
Output:
-
NPN/ PNP(NC/NO)
-
Beam center spacing/Optical axis spacing:
-
30mm
-
Number of beams:
-
6-40
-
protective height:
-
200-1560
-
Product name:
-
Light Curtain Safety Beam Sensors
-
Material:
-
Aluminum Alloy
-
MOQ:
-
100 Sets
-
Warranty:
-
1 Year
-
Output method:
-
PNP NPN
-
Light source:
-
Infrared LED
-
Application:
-
Mechanical Safety Operation Protection

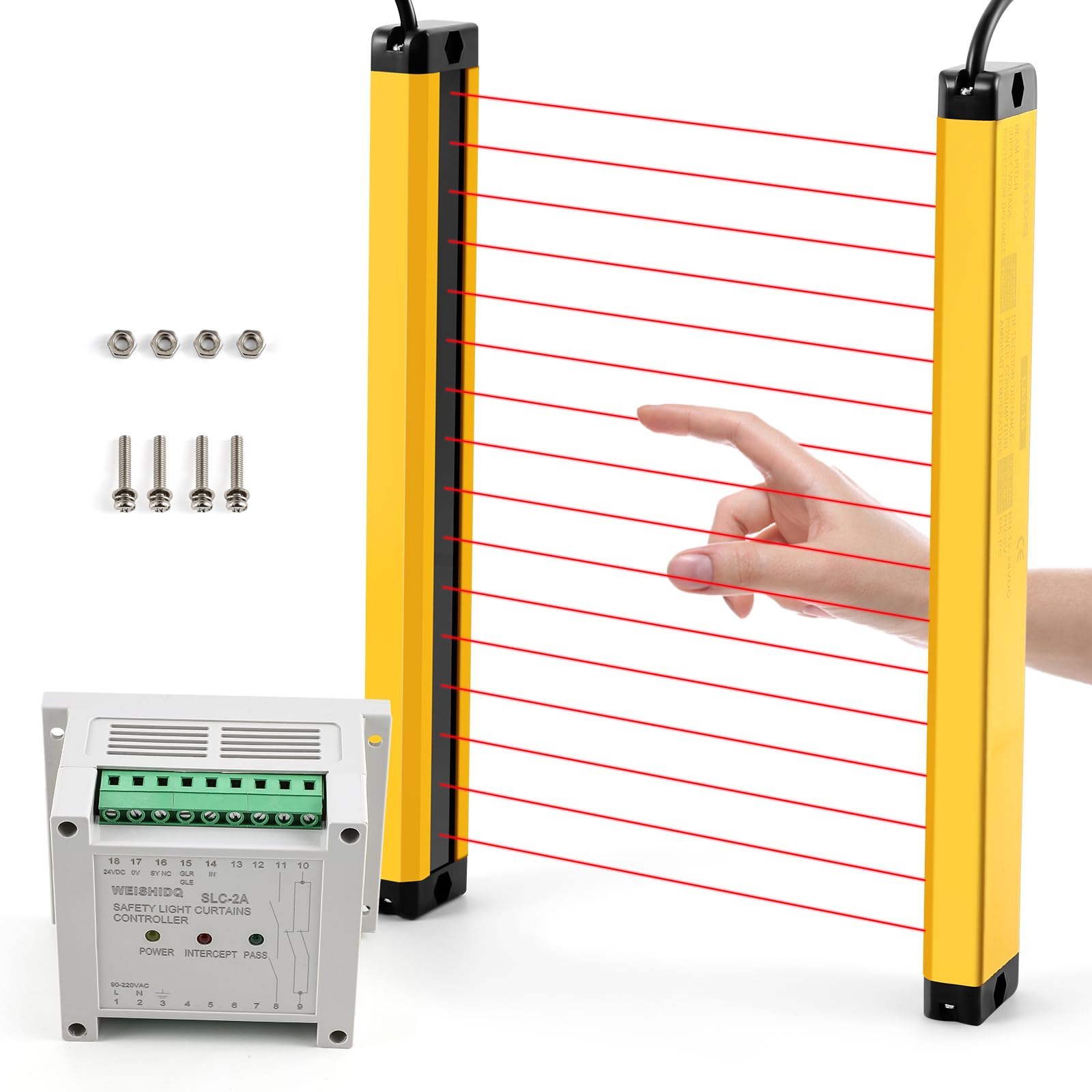

Safety Light Curtain Barrier Sensor Machine Guarding Hand Protection Working Machinery Safety Scanner Area Sensor
Products Description
*
Designed in accordance with
IEC 61496 Class IV
standard.
*Obtained safety
level IV
certification.
*Adopts
MCU redundancy
design: dual MCUs are used internally for detection.
*Adopts self-test cross-mutual detection design: Periodic
double mutual detection
to improve safety.
*
Independent redundant dual outputs
: preventing the failure of a single circuit from causing safety hazards.
*Internal independent dual power supply: Adopt dual power supply to provide power to internal MCU respectively.
*
Strong anti-electromagnetic interference capability
: group pulse interference above 2KV does not affect normal operation.
*
Adopting line synchronization technology
: it can effectively avoid the interference of external infrared light.
