Golden Supplier Photovoltaic Solar Panel 430W 440W 450W Hjt N Type Mono Solar Panel Made In Germany

Golden Supplier Photovoltaic Solar Panel 430W 440W 450W Hjt N Type Mono Solar Panel Made In Germany

FOB Reference Price: Get Latest Price

≥5000 Pieces

US $0.19

≥50000 Pieces

US $0.17

≥300000 Pieces

US $0.16

≥1500000 Pieces

US $0.15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 25YEARS

Brand Name:: Sunpal

Model Number:: HiMAX5N HJT 430-450W

Place of Origin:: Jiangsu, China

Panel Dimensions:: 1722 x 1134 x 30mm

Keyword:: N-type HJT Solar Module

Maximun System Voltage:: 1500 VDC (IEC)

Packaging:: 31pcs/box, 186pcs/20'GP, 806pcs/40'HQ

F Side Glass:: 2.0mm anti-reflective solar glass

B Side Glass:: 2.0mm solar glass

Junction Box:: IP68 Rated, 3 Diodes

Cable:: MC Compatible

Frame:: Silver / Black, anodized aluminium alloy

Connector:: MC Compatible

M echanical load test:: 5400Pa

Certificate:: CE / CB / TUV

Quick Details

Cell size:: 182mmx182mm

Type:: PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, BIPV

Panel Efficiency:: 26%

Warranty:: 25YEARS

Brand Name:: Sunpal

Model Number:: HiMAX5N HJT 430-450W

Place of Origin:: Jiangsu, China

Panel Dimensions:: 1722 x 1134 x 30mm

Keyword:: N-type HJT Solar Module

Maximun System Voltage:: 1500 VDC (IEC)

Packaging:: 31pcs/box, 186pcs/20'GP, 806pcs/40'HQ

F Side Glass:: 2.0mm anti-reflective solar glass

B Side Glass:: 2.0mm solar glass

Junction Box:: IP68 Rated, 3 Diodes

Cable:: MC Compatible

Frame:: Silver / Black, anodized aluminium alloy

Connector:: MC Compatible

M echanical load test:: 5400Pa

Certificate:: CE / CB / TUV

Products Description

HJT 2.0 Technology

Combining gettering process and single-side μc-Si technology to ensure higher cell effciency and higher module power.

Maximum Power (Pmax/W)	430	435	440	445	450
Maximum Power Voltage (Vmpp/V)	34.60	34.86	35.12	35.38	35.63
Maximum Power Current (Impp/A)	12.43	12.48	12.53	12.58	12.63
Open Circuit Voltage (Voc/V)	41.37	41.64	41.91	42.18	42.44
Short Circuit Current (Isc/A)	12.95	13.00	13.05	13.10	13.15
Module Efficiency (%)	22.02	22.28	22.53	22.79	23.04
Power Output Tolerance (W)	0~+5
Temperature Coefficient of Isc	+0.04%°C
Temperature Coefficient of Voc	-0.24%/°C
Temperature Coefficient of Pmax	-0.26%/°C

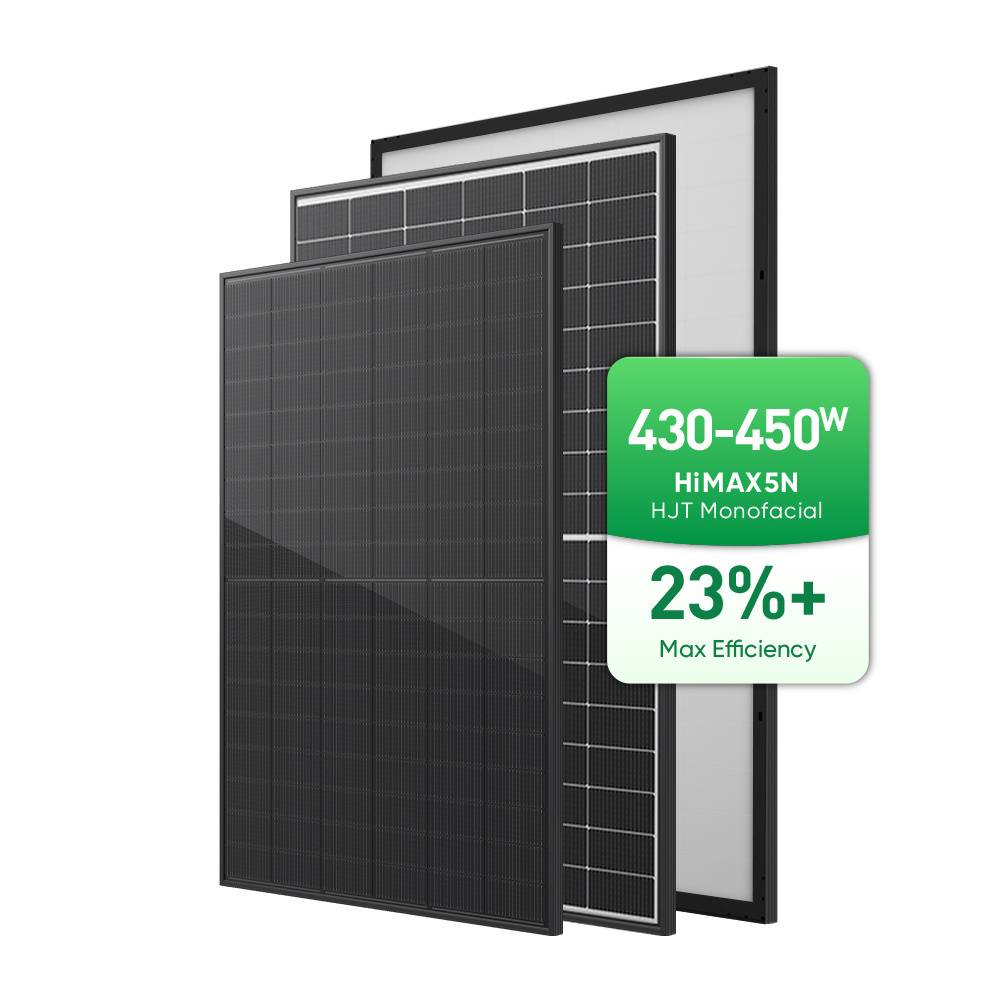

HiMAX5N HJT 430-450W

Power Range: 430-450W

No. of Cells: 108 cells
Dimension: 1722 × 1134 × 35mm
Weight: 21.0 kg
Modules per box: 31pcs
Modules per 40' container: 806pcs

Certifications

Smart Manufacturing

Modularized fully automated production lines enable fast delivery and cost savings. To achieve high utilization rate and
efficiency, SunPal divided the whole production chain into separate but closely united automated production sectors.

Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.

Professional Packing

Sunpal Project Case

Utility Scale

With years of professional experience, SunPal can provide you the perfect module product for your perfect projects so as to maximize your benefits of investments.

Commercial

Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And SunPal was, is, and will always be a reliable partner which you won`t regret to choose.

Residential

Thousands of houses around the globe are equipped with SunPal solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.

OEM

SUNPAL has a complete PV product system: solar cells, PV modules and PV systems, etc. The goal of SUNPAL is to create a new first-class PV product brand, provide clean energy to the world, and assume future responsibility.

Excellent quality, SUNPAL manufacturing!

Get Free Quote Now

FAQ

A: What are your main products?

We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.

B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.

C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.

D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.

E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.

F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately

If you want to know more information, you can send inquiry to our team, we will cover more details.
