25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter
25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter
25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter
25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter
25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter
25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter
25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter
25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter

25Ton Force 6.5HP Gasoline Engine 4inches Ram Automatic Return Hydraulic Log Splitter

FOB Reference Price: Get Latest Price
≥10 Pieces
US $580
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Engine:
Gasoline
Usage:
automatic veritical and horizontal
Product name:
Gasoline Log Splitter

Quick Details

Place of Origin:
Zhejiang, China
Color:
Customized
Power:
6.5hp
Engine:
Gasoline
Usage:
automatic veritical and horizontal
Product name:
Gasoline Log Splitter
Product Description

Product Application

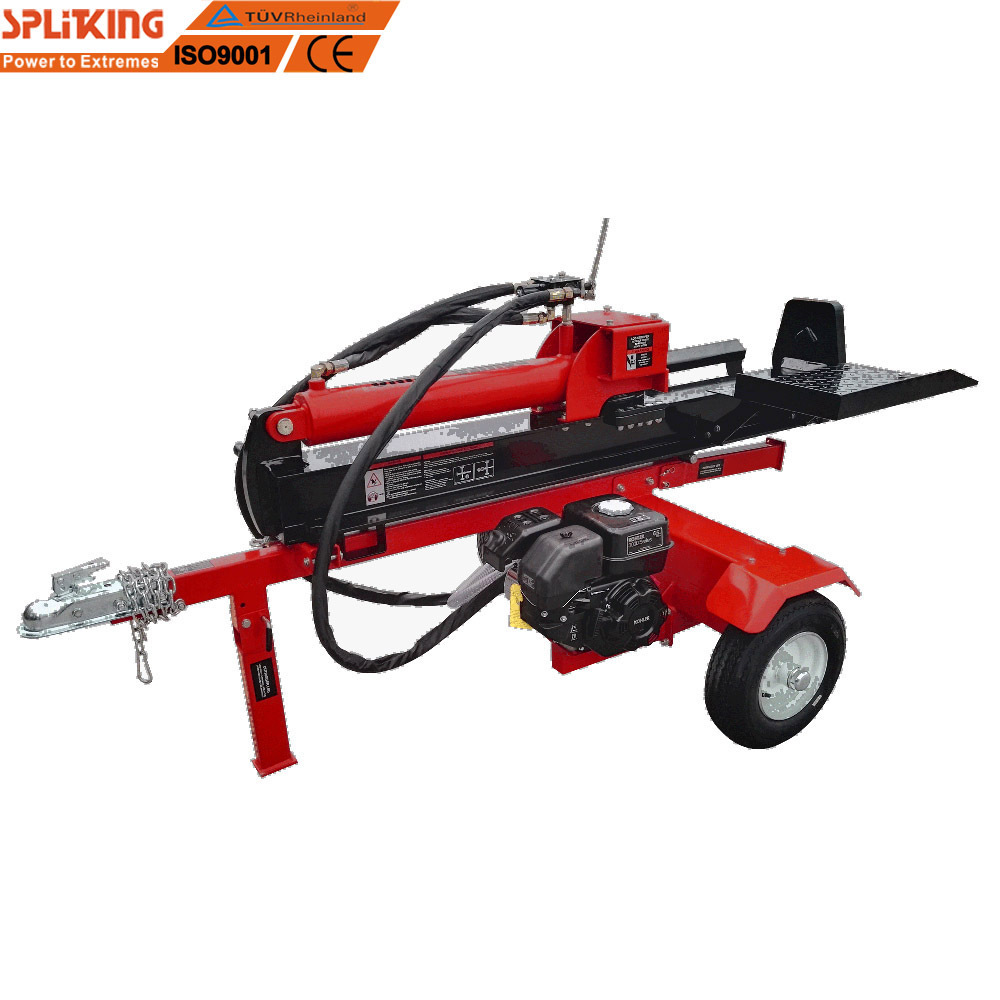

LS25T-610MM is a powerful petrol hydraulic log splitter that is able to cut logs that are up to 25 1/2 inches in length and up to 19 1/2 inches in diameter approximately,with 6.5mhp petrol engine it features a 22Tons splitting force.

SPLITKING is a Log Splitter registered brand belongs to WUYI ZHISHENG TOOL CO.,LTD, who had been keeping on search and study the best solutions for speed and force along with the longevity and durability of each piece of our productions from parts to assemble and shipping.

Another feature of this petrol hydraulic log splitter LS25T-610MM is that it offers options of coupling hitch US2”/AU 50mm /NZ 1 7/8 with DOT approved tires, making it extremely portable,with 11GPM gallon hydraulic oil reservoir, powered by OHV engine that features a cast iron sleeve you can be sure that the LS25T-610MM SPLITKING log splitter is sure to deliver the power you need for the toughest of logs.

SPECIFICATIONS
Model/Item Number:
LS25T-610MM





Main Spec.
Splitting Force:
25 ton
Engine:
6.5HP petrol
Max SPlitting Length
650mm
25 1/2 inches
Max Splitting Diameter
500mm
19 1/2 inches
Cylinder Dia
4.5 inches
Tires
16*4.8" -8 D.O.T Approved
Pump Flow
11GPM




Additional Spec.
Control Valve
Automatic Return Control Valve
Wedge
Removeable 4way cross cast steel wedge
Coupling Hitch
Options:US2'/AU50MM/NZ 1 7 /8 coupling hitch

Other Features
Log Stripper
to remove stuck wood
Hydraulic Oil guage
Big wood table

Package & Loading
Weight
N.W./G.W.:
240kgs/275kgs
Packing Size
L.W.H
215*50.5*57cm
Container Load
40pcs/20ft container

Main Features

1) 11GPM gallon hydraulic oil reservoir, powered by 6.5HP OHV engine

2) Adopting advanced famous brand components and parts ,engine parts and operation parts.

3) able to cut logs that are up to 25 1/2 inches in length and up to 19 1/2 inches in diameter approximately

4) Running in a high automatization and intellectualization,no pollution

5) 215*50.5*57cm wood individual package per unit which makes it could be loaded 40pcs per 20ft container.

Certifications
Detailed Images

Machine Parts

Name: Petrol Engine

Brand: KOHLER

Original: China

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.

Steel Blade

Name: 4way cast steel wedge
Brand: ZHISHENG
Original: China
Our own factory brand cast steel wedge, more than 8years expricence makes we care all details for whole machine reputation

Machine details

Name: working table
Brand: None
Original: China
Big and steady, from the thickness we can make sure it

features enough strong for 40Ton splitting force working

Machine details

Name: Working Area
Brand: None
Original: produced by ourselves
Nice finishing for all surface makes our clients

like the looking as well as they use it.

Packing & Delivery
Packaging
Size
215 (L) * 50.5 (W) * 57 (D)cm
Weight
285KGS



Packaging Details
The normal package is wood crate  or pack it according to customers special request.

This picture is for showing a regular wood crate packing for some shipped orders from other customer.Not  always fits the currency item you are checking now.
