Quick Details
-
Model Number:
-
TB-45
-
Max. Current:
-
16A
-
Battery life:
-
3 years (Lithium battery)
-
Rated Voltage:
-
AC 110-240V
-
Frequency:
-
50/60 Hz
-
Switch Capacity:
-
AC 250V 15A
-
Installation type:
-
DIN rail
-
Time accuracy:
-
≤±2S/day (25℃)
-
Program:
-
Daily program
-
Set-up times:
-
96Times
-
Dimension:
-
90*18*64mm
-
Ambient Temperature:
-
-10℃~+50℃
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Elsine
-
Model Number:
-
TB-45
-
Max. Current:
-
16A
-
Battery life:
-
3 years (Lithium battery)
-
Rated Voltage:
-
AC 110-240V
-
Frequency:
-
50/60 Hz
-
Switch Capacity:
-
AC 250V 15A
-
Installation type:
-
DIN rail
-
Time accuracy:
-
≤±2S/day (25℃)
-
Program:
-
Daily program
-
Set-up times:
-
96Times
-
Dimension:
-
90*18*64mm
-
Ambient Temperature:
-
-10℃~+50℃
-
Certification:
-
CE

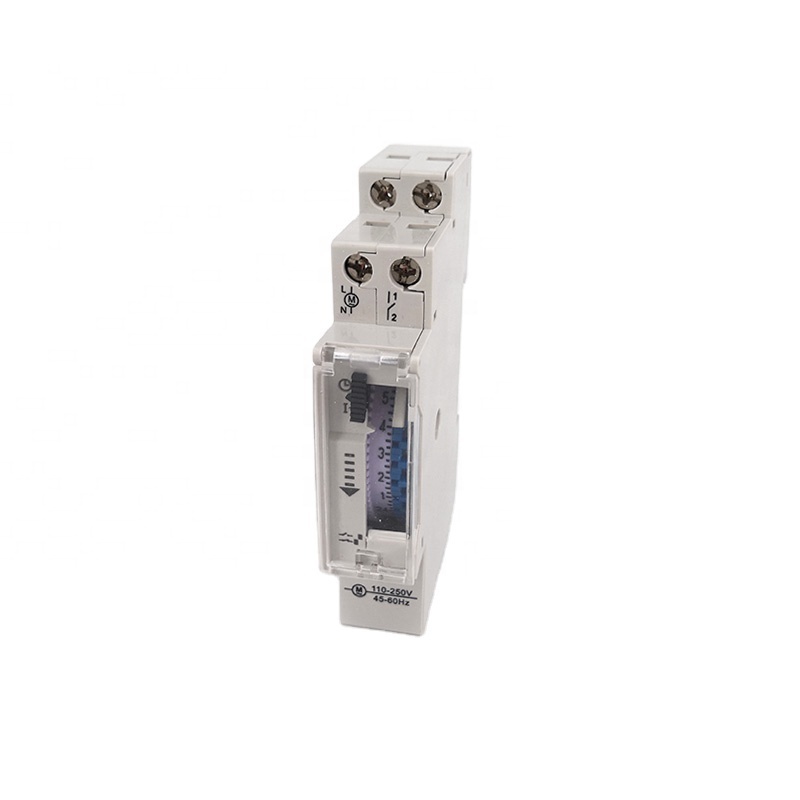

Multi-certificate mechanical programmable timer switch small electric timer and switch 15 Minutes timer TB-45
TB 45 according to the time set by the user, automatically turn on and turn off the variety of electrical equipment, agr i culture, aquaculture,war e house exhaust dehumidifier automatically preheat optimal control products, such as radio and television equipment.
Used for to demonstrate the machine, the equipment, the device accumulation operating time. It is mechanical type accumulation, the longest time for accumulation time can be 11 years. It still can maintain the data after the power cut.
BASIC FEATURES
-
Sensitive and smart
-
Salable and durable
-
Reasonable price and high quality
TECHNICAL DATA
Auxiliary power supply: 220~240VAC± 10% 45/60Hz
Switching contact: 16(4)A 250V AC
Burden: 0.5W
Precision: ± 3sec/day at 22 ℃
Back-up time: 100 hours
Type of dial: daily 96 pins
Minimum setting interval: daily 15 minutes
Temperature: working -10℃ to +50 ℃
storage 25℃ +70 ℃
Manual operating switch 2 positions: ON- Automatic
Movement: quartz
Terminal wires: 2x2.5mmq
Sealable front
Dimensions: 1DIN
Protection degree: IP20 as per EN60529
Protection class: ll as per EN60335 under
correct assembling conditions
Standards: IEC669-1; EN60730
WIRING CONNECTION
STAND WORKSHOP
Q 1. What's the payment term?
A. We accept T/T, L/C, Western Union, Cash
Q 2. What's the delivery time ?
A. Usually it would take about 25 days for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
Q 4. What kind of product quality your factory offer?
A. We offer most competitive prices with best quality, copper coil with silver contact.
Q 5. Do you accept OEM and ODM business?
A. We do,for OEM service please send us your authorization, also your quantity should large enough.
Q 6. Could you offer certificate of origin?
A. We can prepare relative documents to foreign affairs office or other office to apply the certificate.
Q7. What kind of certificate you have ?
A. Our company already achieve ISO, and for products, we have CE, SEMKO,CB, BSI, GS, TUV, VDE.
