Quick Details
-
Color Temperature(CCT):
-
3000-6500k
-
Model Number:
-
HNX-TM65
-
Product Name:
-
vapor tight suspended ceiling light
-
Power:
-
50W
-
Length:
-
1200MM OR 1500MM
-
Material:
-
Alumimum + PC Cover
-
Beam angle:
-
120 Degree
-
Color Temperature:
-
4000k/5000k
-
Mounting Height:
-
1-5 meters
-
Function:
-
Daylight Sensor
-
CCT:
-
3000/4000/5000/6500k
-
Mounting:
-
Suspended Ceiling Mount
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
LED Tri-proof Lights
-
Application:
-
Warehouse
-
Color Temperature(CCT):
-
3000-6500k
-
Model Number:
-
HNX-TM65
-
Product Name:
-
vapor tight suspended ceiling light
-
Power:
-
50W
-
Length:
-
1200MM OR 1500MM
-
Material:
-
Alumimum + PC Cover
-
Beam angle:
-
120 Degree
-
Color Temperature:
-
4000k/5000k
-
Mounting Height:
-
1-5 meters
-
Function:
-
Daylight Sensor
-
CCT:
-
3000/4000/5000/6500k
-
Mounting:
-
Suspended Ceiling Mount

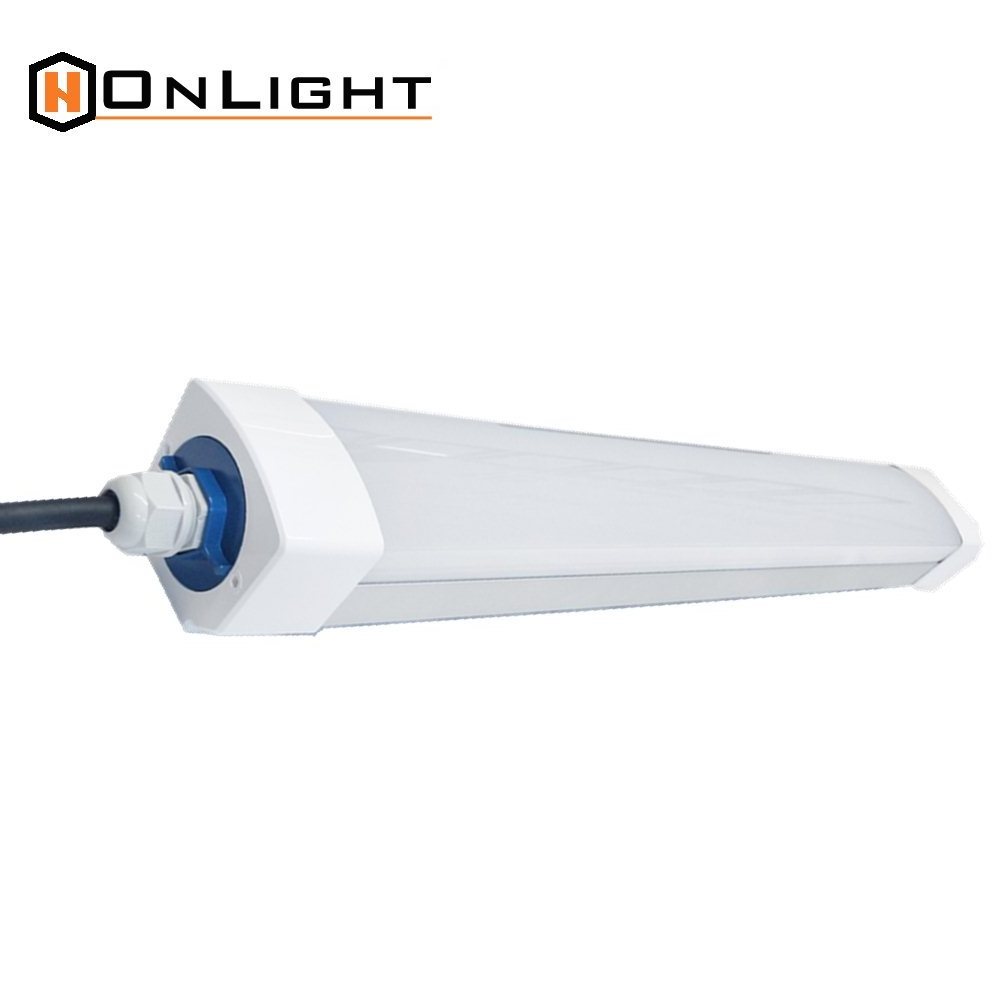

Led tri proof high power 50w led surface vapor tight suspended ceiling light
- Aluminum Housing with Opal Frosted and Clear Strip Diffuser for option
- Available in different sizes from 0.6 m /2ft to 1.8 m / 6ft and powers from 20 watt to 80 watt
- Cable self-mounted, plug-and-play connection, detachable end cap fit for self-wiring connection
- 100~110 lm/w , 130~140 lm/w
- IP65 waterproof, IK07, Mini size for special area .
- L80B50 (Ta = 25℃): 75,000 hrs
With 6 years of continuous improvement and innovation, Macro Series led tri proof light has been evolved to be one of HonLight products series to offer an extensive application range from commercial to industrial for any retrofit or new installation, also it is a genuine champion for being energy-efficient and cost-effective.
If you are looking for an ideal luminaire for your parking lot, garage, warehouse, supermarket, workshop, corridor, shop, etc, it will be your best option.
| Model Name | Macro Series | ||
| Model Number | HNX-TM65-20W2F | HNX-TM65-40W4F | HNX-TM65-60W5F |
| Material | Aluminum Housing + PC Diffuser | ||
| Power | 20 Watt | 40 Watt | 60 Watt |
| Length | 600mm / 2ft / 24 inch | 1200mm / 4ft / 48 inch | 1500mm / 5ft / 60 inch |
| Beam Angle | 120 degree | ||
| CRI | > 83ra | ||
| Power Factor | >0.95 | ||
| Lumen Efficacy | 90-140lm/w | ||
| IP Rate | IP65 | ||
| IK Rate | IK08 | ||
| Working Temperature | -25~+45℃ | ||
| Storage Temperature | -40~+70℃ | ||
| Microwave Motion Sensor | Optional | Optional | Optional |
| 1-10V Dimmable | Optional | Optional | Optional |
| Emergency (Built-in) | Optional | Optional | Optional |
| Installation | Ceiling Mounted or Suspened Mounted | ||
| Power Supply | Single end power wiring or Double end power wiring (linkable) | ||
| Certificate | CE ROHS LVD EMC ETL CETL DLC FCC | ||
| Model No | Qty/CTN | GW/CTN (KG) | CTN Size (CM) |
| HNX-TM65-20W2F | 9 pcs | 10.5 | 68*34*31 |
| HNX-TM65-40W4F | 9 pcs | 17.5 | 128*34*31 |
| HNX-TM65-60W5F | 9 pcs | 20.0 | 158*34*31 |
