Quick Details
-
Warranty:
-
18 Months
-
Loading Capacity:
-
2300kg
-
Lifting height:
-
2100mm
-
Useful platform width:
-
2100mm
-
Lift width:
-
2559mm
-
Car capacity:
-
SUV+Sedan
-
Power pack:
-
2.2KW
-
Power supply:
-
110V-450V,50/60HZ,1/3PH
-
Operation mode:
-
Key Switch Panel
-
Operation voltage:
-
24V safety control voltage
-
Lock release:
-
17 stages lock position
-
Lifting time:
-
55S
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TPP105S
-
Warranty:
-
18 Months
-
Loading Capacity:
-
2300kg
-
Lifting height:
-
2100mm
-
Useful platform width:
-
2100mm
-
Lift width:
-
2559mm
-
Car capacity:
-
SUV+Sedan
-
Power pack:
-
2.2KW
-
Power supply:
-
110V-450V,50/60HZ,1/3PH
-
Operation mode:
-
Key Switch Panel
-
Operation voltage:
-
24V safety control voltage
-
Lock release:
-
17 stages lock position
-
Lifting time:
-
55S
Product Description

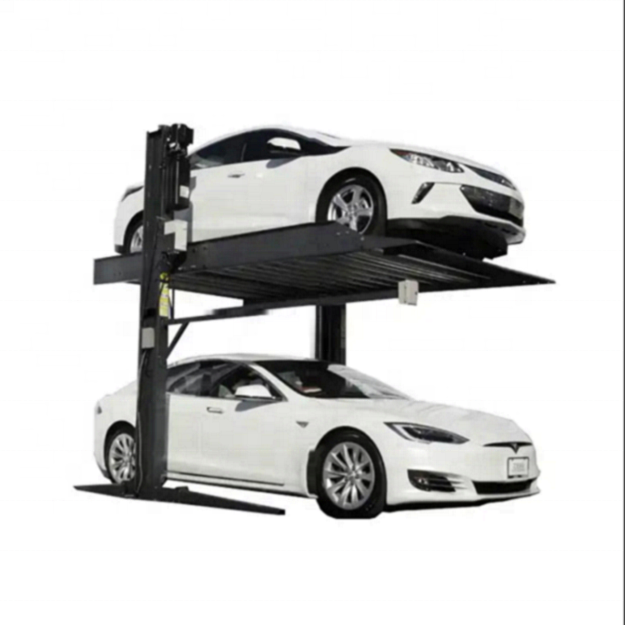

This type is most popular mechanical car parking lift among all the parking system due to its cost-efficiency and practicability.
Easy Installation, sharing post design and multiple safety features are highlights. It provides a simple and greatly
cost-effective way to create 2 dependent parking spaces above each other, suitable for permanent parking, valet parking, car
storage, or other places with attendant. Operation can be easily made by a key switch panel on control arm.
Easy Installation, sharing post design and multiple safety features are highlights. It provides a simple and greatly
cost-effective way to create 2 dependent parking spaces above each other, suitable for permanent parking, valet parking, car
storage, or other places with attendant. Operation can be easily made by a key switch panel on control arm.
Product Features
– One platform for 2 vehicles
– Faster lifting speed with single cylinder (two cylinders are optional)
– Lifting capacity: 2300kg/2700kg/3200kg
– 2100mm as standard platform width, customized up to 2500mm
– Sharing post feature allows side by side installations in minimum space
– 24v control voltage avoids electric shock
– Galvanized wave plates against water rain
– Automatic shut-off when operator releases key switch
– powder coating provides long lasting surficial protection
– CE&UKCA certification
– Faster lifting speed with single cylinder (two cylinders are optional)
– Lifting capacity: 2300kg/2700kg/3200kg
– 2100mm as standard platform width, customized up to 2500mm
– Sharing post feature allows side by side installations in minimum space
– 24v control voltage avoids electric shock
– Galvanized wave plates against water rain
– Automatic shut-off when operator releases key switch
– powder coating provides long lasting surficial protection
– CE&UKCA certification
Production Data
|
Model
|
TPP105S
|
|
Type
|
Parking Lift
|
|
Lifting capacity
|
2300kg
|
|
Lifting height
|
2100mm
|
|
Useful platform width
|
2100mm
|
|
Lift width
|
2559mm
|
|
Car capacity
|
SUV+Sedan
|
|
Power pack
|
2.2KW
|
|
Power supply
|
110V-450V,50/60HZ,1/3PH
|
|
Operation mode
|
Key Switch Panel
|
|
Operation voltage
|
24V safety control voltage
|
|
Lifting system
|
One cylinder&Chain lifting system OR Two cylinders direct lifting system
|
|
Lifting time
|
55S
|
|
Lock release
|
17 stages lock position
|
|
Treatment
|
Powder coating standard, hot galvanized optional
|
