1.High performance, open width speed factor up
to 850 (25rpm at 34”)
2.Single adjusting key per feeder
3.Three shafts transmission system, improve the reliability and durability of the transmission system, enhance the stability of the machine and high speed dynamic accuracy of the machine
4.The yarn guide ring can be adjusted as a whole, and the yarn guide can be adjusted separately
5.The unique big structure ensures the absolute engagement of the gears, and keeps the equipment stable and efficient
6.Unique yarn feeding aluminum disc anti-slip setting, avoid parallel lines
7.Independent patented take-down system
8.Large pattern range with up to 4 needles tracks in cylinder cam and a wide gauge fabric
9.Different frame types available for different production requirement
- Product Details
- {{item.text}}
Quick Details
-
Knitting Method:
-
Double
-
Computerized:
-
NO
-
Gauge:
-
16-44gg
-
Knitting width:
-
68 inch
-
Product Type:
-
Knitting machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Leadsfon
-
Power:
-
5.5 W
-
Weight:
-
3000 KG
-
Dimension(L*W*H):
-
240*220*237cm
-
Product Name:
-
Double Jersey Circular Knitting Machine
-
Application:
-
Fabric Knitting
-
Keywords:
-
Knitting Machine
-
Color:
-
Green&white
-
Speed:
-
High Speed
-
Quality:
-
Guaranteed
-
Brand:
-
Pilotelli Odm
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Turkey,Viet Nam,Brazil,Indonesia,etc
Quick Details
-
Type:
-
Double jersey knitting machine
-
Production Capacity:
-
High Speed
-
Knitting Style:
-
Weft
-
Knitting Method:
-
Double
-
Computerized:
-
NO
-
Gauge:
-
16-44gg
-
Knitting width:
-
68 inch
-
Product Type:
-
Knitting machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Leadsfon
-
Power:
-
5.5 W
-
Weight:
-
3000 KG
-
Dimension(L*W*H):
-
240*220*237cm
-
Product Name:
-
Double Jersey Circular Knitting Machine
-
Application:
-
Fabric Knitting
-
Keywords:
-
Knitting Machine
-
Color:
-
Green&white
-
Speed:
-
High Speed
-
Quality:
-
Guaranteed
-
Brand:
-
Pilotelli Odm
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Turkey,Viet Nam,Brazil,Indonesia,etc
Products Description
|

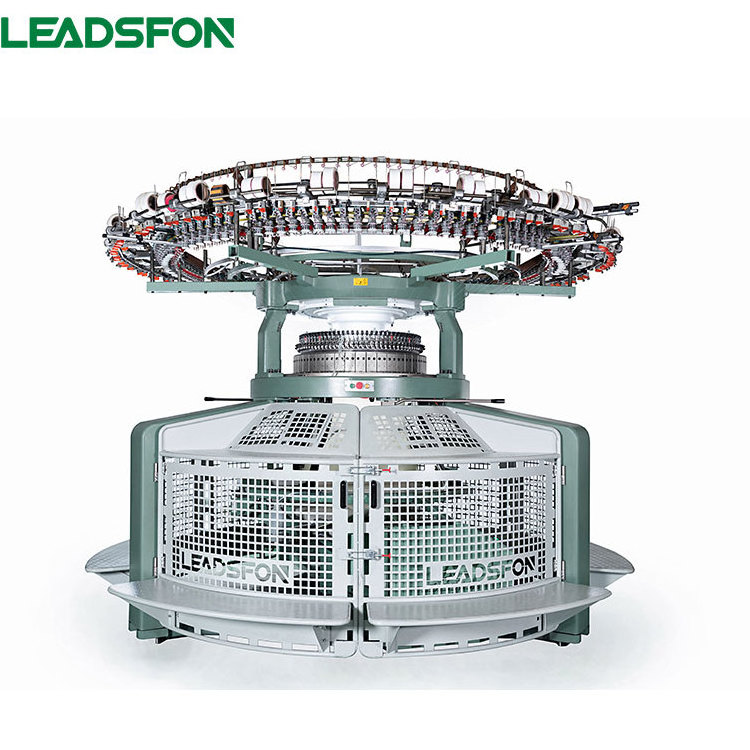

DJI 3.2 Double Jersey Machine Europe Model
|
DJI 3.2 Highly productive basic Double Jersey
|
|
|
High Productive, 3.2 feeder per inch, miss cam fixed on cam box, single key adjusting, flatter fabric
|
DJI 3.2
|
|
|
PRODUCTION EXAMPLE
|
|
|
|
|
||||
|
DJI3.2 108F for 34inch, open width and 25rpm [Efficiency,85%]
|
|
|
|
|
||||
|
Structure
|
Gauges (E)
|
Yarn
|
Weight (g/m2)
|
Production kg/h
|
||||
|
Interlock
|
24
|
Poluester
150/72/1 DEN
|
250
|
20
|
||||
|
TECHNICAL DETAILS
|
|
|
|
Type
|
DJI 3.2
|
|
|
Diameter [inch]
|
30” - 40”
|
|
|
No. Of feeders
|
98F - 128F [3.2 feeds per inch ]
|
|
|
Speed factor [max]
|
850
(Example : 25rpm at 34” ) |
|
|
Gauges [E]
|
14GG-44GG
|
|
PRODUCT FEATURE
