Quick Details
-
Weight (KG):
-
250
-
Voltage:
-
220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
K Snow
-
Dimension(L*W*H):
-
820*980*1680mm
-
suitable bag:
-
film roll
-
Microcomputer control:
-
yes
-
packing effect:
-
sides sealing, back central sealing
-
motor:
-
stepless type
-
photoelectric device:
-
to track the film
-
packed bag width:
-
2-15cm
-
packed bag length:
-
3-18cm
-
counting filling way:
-
slop auger device
-
suitable bag material:
-
Compound film, PET/PE,
-
date printer:
-
optional
Quick Details
-
Function:
-
FILLING, Sealing, weighing
-
Packaging Type:
-
Bags, Foil, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
250
-
Voltage:
-
220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
K Snow
-
Dimension(L*W*H):
-
820*980*1680mm
-
suitable bag:
-
film roll
-
Microcomputer control:
-
yes
-
packing effect:
-
sides sealing, back central sealing
-
motor:
-
stepless type
-
photoelectric device:
-
to track the film
-
packed bag width:
-
2-15cm
-
packed bag length:
-
3-18cm
-
counting filling way:
-
slop auger device
-
suitable bag material:
-
Compound film, PET/PE,
-
date printer:
-
optional
Products Description

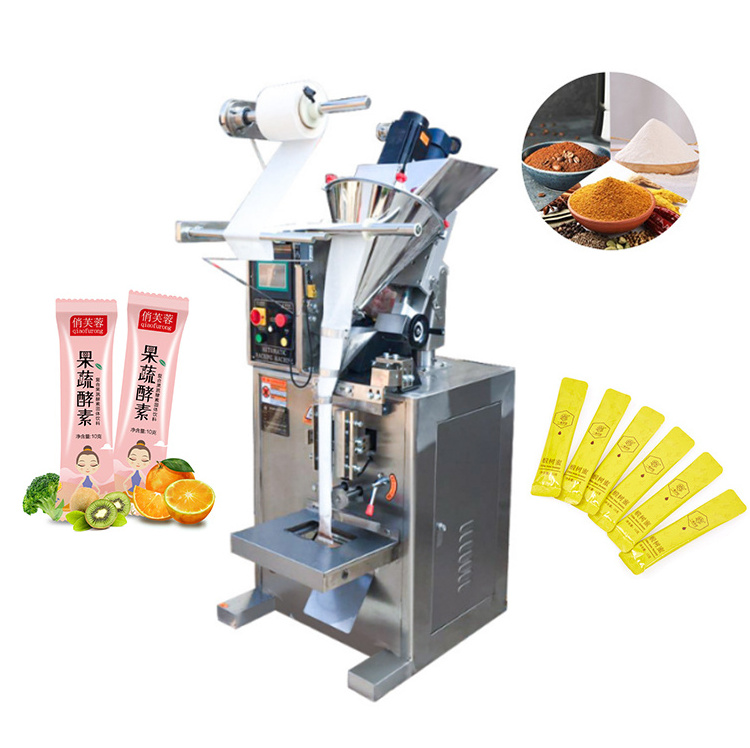

Vertical automatic stick bag coffee powder sachet filling packing machine
The
stick powder packing machine
is a fully computer-controlled pouch, vertical type; three-side and four-side
sealing;flat bag, pillow-shaped bag, and intermittent packaging machine newly developed and manufactured by
our company.
It can automatically complete the metering method, so the automatic auger protein powder packing machine
is suitable for the small bag packaging of powdery materials with good fluidity.
1: English display control system, stainless steel box, only need to set the required parameters (filling amount, bag length, etc.) in the displayable setting unit, and the control system will automatically optimize and match each action to achieve faster Packaging speed.
2: Adopt an intelligent temperature controller to control the horizontal and vertical sealing temperature in two ways, so that the sealing of the automatic auger powder packing machine is firm, the sealing is good, the bag shape is flat and beautiful, and the packaging efficiency is high.
3. The bag-making system of slop auger powder packing machine adopts stepper motor subdivision
technology, automatically tracks and locates the color code of the packaging bag, and easily completes the
bag-making operation and adjustment, with fast speed, stable operation and low noise.
4: Adopt advanced intelligent photoelectric tracking system and automatic compensation function to ensure
the automatic registration of the double-sided printing pattern of the packaging bag and increase the utilization rate of packaging materials.
5.: Steplessly adjust the packaging speed within the rated range, position the opening and stop the machine.
6.: C
offee powder sachet filling packing machine
can automatically complete all tasks such as bag making, measuring, filling, sealing, cutting, counting, and printing batch numbers.
7.P
owder filling and packing machine
adopts flat-push measuring cup type measurement, accurate measurement for the packed materials with uniform density, and conforms to the national measurement standard.
Uses: Suitable for medicine powder, milk powder, soybean powder, condiments, wettable pesticide powder, etc.
|
Model
|
KS-320
|
KS-350
|
KS-480
|
|
Power
|
AC220V 50/60Hz 2.0KW
|
AC220V 50/60Hz 2.5KW
|
AC220V 50/60Hz 2.5KW
|
|
Bag size
|
30-180mm(L)
30-150mm(W) |
50-280mm(L)
30-150mm(W) |
80-320mm(L)
80-220mm(W) |
|
Bag type
|
Three/four/pillow side sealing bag
|
Three/four/pillow side sealing bag
|
Three/four/pillow side sealing bag
|
|
Measure range
|
10-100g
|
50-300g
|
100-1000g
|
|
Film roll diameter
|
Max. 320mm
|
Max. 320mm
|
Max. 460mm
|
|
Packaging speed
|
40-80bag/min
|
30-60bag/min
|
20-40bag/min
|
|
Machine weight
|
380kg
|
450kg
|
480kg
|
|
Machine size
|
750*980*1780mm
|
820x980x1980(mm)
|
820x980x1980(mm)
|
Slop auger specially designed for powder material
with round edge cutting device match with vacuum adding pump
