Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
17D-GY-3B6OG2
-
Mechanical Life:
-
100000 Times
-
Material:
-
Brushed aluminum alloy panel with plastic middle part
-
Color:
-
Gray
-
technology:
-
dry contact
-
common style:
-
common anode or common cathode
-
voltage:
-
9-24V DC
-
Modular design:
-
1-5 panels connected
-
Screw center distance:
-
60mm
-
Working temperature:
-
-10℃~60℃
-
Working humdidity:
-
0~95%
Quick Details
-
Max. Current:
-
Blank
-
Max. Voltage:
-
12V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
17D-GY-3B6OG2
-
Mechanical Life:
-
100000 Times
-
Material:
-
Brushed aluminum alloy panel with plastic middle part
-
Color:
-
Gray
-
technology:
-
dry contact
-
common style:
-
common anode or common cathode
-
voltage:
-
9-24V DC
-
Modular design:
-
1-5 panels connected
-
Screw center distance:
-
60mm
-
Working temperature:
-
-10℃~60℃
-
Working humdidity:
-
0~95%

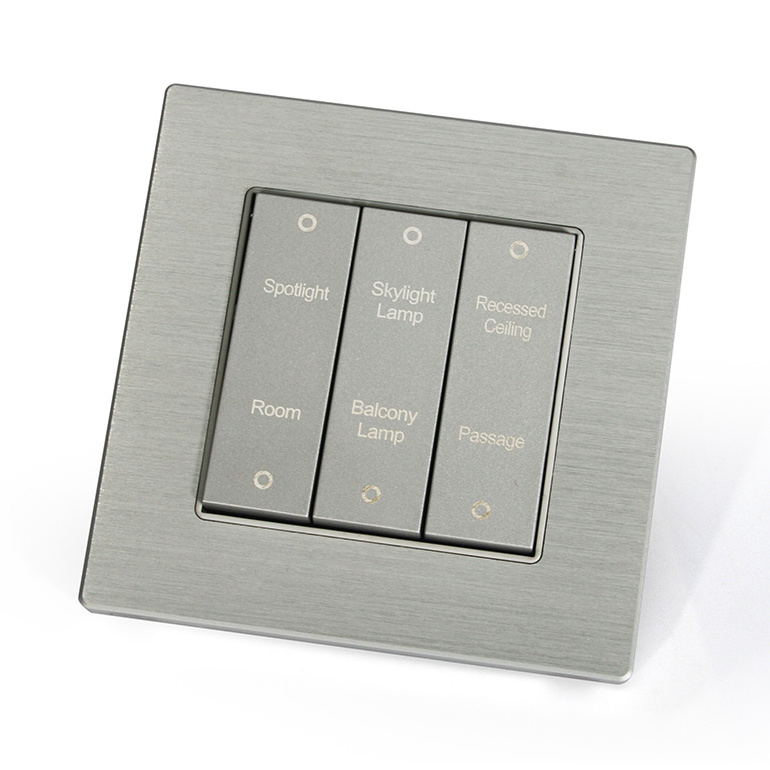

Silver Brushed Aluminum Alloy Dry Contact Reset Switch Panel with LED Customized Words and Indicator Bar
This product is our 12V DC low voltage reset button dry contact switch, it can be widely used in hotels, resorts, clubs, etc. Modular function keys can be freely combined at customer's request. Text content and colors can also be customized.
Low Voltage Dry Contact Signal
This product adopts low voltage dry contact signal hotel switch. Separation for strong and light current are arranged to enhance safety and reliability.
Brushed Aluminum Alloy Panel
Brushed aluminum alloy gives nice and delicate glazed quality to the panel. It is also slide-proof and easy to clean. Chamfering processing to the panel sides also greatly enhances safety.
Modular, Integrated Design
Optional 1 to 5 modular design can be applied in different space and venues. The panel is integrated in order to make it more firm and secure. Functions can be custom-designed, reset button is also available.
LED Indicator
LED indicators on the top and buttom can show status and makes it easy to spot at night. We can also make fluorescence indicators.
Cold Rolled Steel Support
The base utilizes a whole cold rolled steel to support function component, which enhances security and lengthen life of use.
Customizable Text Content, LOGO and Color
We can have text description on the button switch. Different languages suitable for any countries in the world. Customizable LOGO and optional color choices (white, champagne, gold, silver) at your request.
Excellent Fire-proofing PC Materials
The panel and mounting box both applies high-quality PC materials, fireproofing, flame retardant and strong security.
Rich Set of Components
This product has a rich set of components, motion detector, telephone, TV, computer socket, 5-7 hole socket, dimmer switch, speed -control switch. It can be combined in any way you like.
Optional Panel Materials
We can use different panel materials such as tempered glass, aluminum alloy, brushed aluminum, PC, etc.
Product Parameters
Fixed screw center distance: 60mm (applicable for 86 mounting box)
Working temperature: -10℃~60℃
Working humidity: 0~95%
Size: single module 86*86*7mm
2 connected modules 172*86*7mm
3 connected modules 258*86*7mm
4 connected modules 344*86*7mm
5 connected modules 430*86*7mm
