Quick Details
-
Spindle Taper:
-
ISO50
-
Range of Spindle Speed(r.p.m):
-
60 - 1800 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOJIE
-
Model Number:
-
HM1668
-
Table Travel (mm):
-
400*1110*450mm
-
Year:
-
2022
-
Spindle Motor Power(kW):
-
5.5
-
Voltage:
-
Customized option
-
Dimension(L*W*H):
-
2220*2600*1880mm
-
Weight (KG):
-
2400
-
Warranty of core components:
-
13 months
-
CNC or Not:
-
Normal
-
Color:
-
Opitional
-
Machine Type:
-
Universal Milling Machine
-
Precision:
-
High Precision
-
Application:
-
Metal Machining
-
Keyword:
-
Milling Machine Specifications
-
Local Service Location:
-
Egypt
-
Name:
-
Drilling Milling Machine
-
Product name:
-
Horizontal Universal Milling Machine
Quick Details
-
Table Travel (X) (mm):
-
1000
-
Table Travel (Y) (mm):
-
320
-
Table Travel (Z) (mm):
-
450
-
Spindle Taper:
-
ISO50
-
Range of Spindle Speed(r.p.m):
-
60 - 1800 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOJIE
-
Model Number:
-
HM1668
-
Table Travel (mm):
-
400*1110*450mm
-
Year:
-
2022
-
Spindle Motor Power(kW):
-
5.5
-
Voltage:
-
Customized option
-
Dimension(L*W*H):
-
2220*2600*1880mm
-
Weight (KG):
-
2400
-
Warranty of core components:
-
13 months
-
CNC or Not:
-
Normal
-
Color:
-
Opitional
-
Machine Type:
-
Universal Milling Machine
-
Precision:
-
High Precision
-
Application:
-
Metal Machining
-
Keyword:
-
Milling Machine Specifications
-
Local Service Location:
-
Egypt
-
Name:
-
Drilling Milling Machine
-
Product name:
-
Horizontal Universal Milling Machine

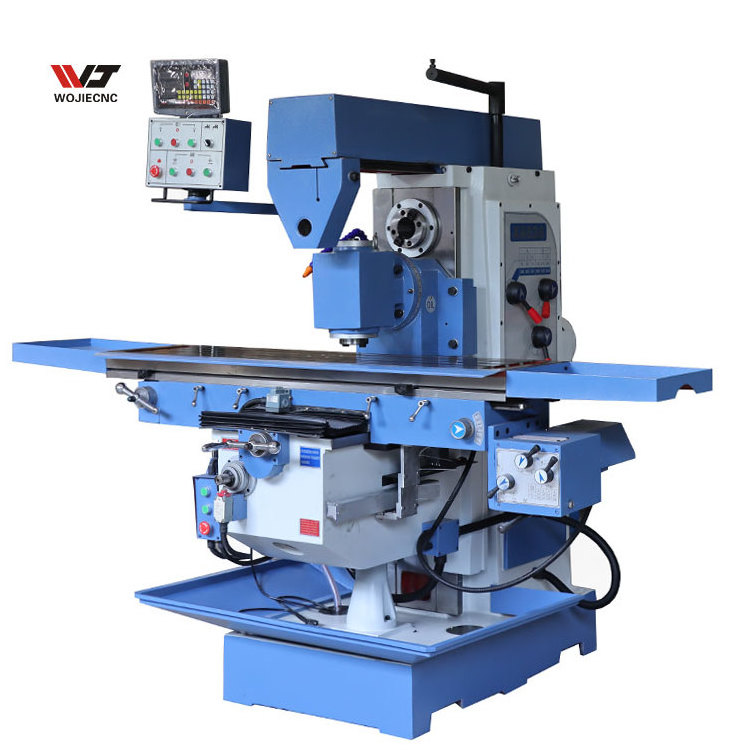

Detailed Images
Product Application
The main shaft has good rigidity and strong bearing capacity.Working table X, Y, Z three direction gear transmission automatic feed, X direction stroke 1000mm worktable guide rail pair ultra audio quenching, precision grinding.Manual lubrication device can be used for forced lubrication of lead screw and guide rail. The machine table can be vertical, horizontal, lifting, automatic manual, motor feed and equipped with fast retreat device, high efficiency.It is suitable for drilling, expanding, reaming, boring, hole processing;Such as disc milling machine, Angle milling cutter, forming milling cutter and end milling cutter, can be milling plane, inclined plane, vertical plane and groove, etc.
Product main technical specifications:
Product main technical specifications:
|
Specifications
|
Units
|
X6036/X6036A
|
||
|
Table size
|
mm
|
1500*360
|
||
|
Table travel (X.Y.Z)
|
mm
|
1000/320/400
|
||
|
T-type slot numbers / width /space
|
mm
|
3/18/80
|
||
|
Max. load working table
|
kg
|
320
|
||
|
Distance from spindle axis to table
|
mm
|
0-400
|
||
|
Spindle hole center to the sliding pillow plane distance
|
mm
|
175
|
||
|
vertical and horizontal motor feed speed
|
mm/min
|
8 steps 22—555(Fast forward 830)
|
||
|
Vertical lift speed of working table
|
mm/min
|
11/275
|
||
|
Ram stroke
|
mm
|
500
|
||
|
Spindle taper
|
|
ISO50(7:24)
|
||
|
Spindle speed range
|
rpm
|
60-1800(12steps)
|
||
|
Spindle motor power
|
KW
|
5.5
|
||
|
Table motor feed motor power
|
W
|
750
|
||
|
Motor power of elevating motor
|
KW
|
1.1
|
||
|
Cooling pump motor power
|
W
|
90
|
||
|
Cooling pump flow
|
L./min
|
25
|
||
|
Max. spindle torque
|
N. m
|
|
||
|
Overall dimensions(L*W* H)
|
mm
|
2360*1790*1860
|
||
|
Machine weight
|
Kg
|
2300
|
||
|
Configuration of vertical milling head parameters
|
|
|
||
|
Vertical Milling head spindle taper
|
/
|
ISO40 (7:24)
|
||
|
Distance from spindle center to column surface
|
mm
|
320
|
||
|
Spindle end face to table face dimensions
|
mm
|
0-290
|
||
