Quick Details
-
Type:
-
Aggregation Switch
-
Material:
-
Metal Shell
-
Fiber Optical Port:
-
8 x 1.25Gbps SFP
-
Networking Port:
-
2x 10/100/1000Mbps auto-adaptive RJ45
-
Bandwidth:
-
20Gbps
-
Communication Mode:
-
Communication Mode
-
Power Supply:
-
DC12V 3A
-
Installation:
-
Tesktop or Rackmount
-
Warranty:
-
3 Years
Quick Details
-
Brand Name:
-
Thinkwind
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TW-508F-2G
-
Type:
-
Aggregation Switch
-
Material:
-
Metal Shell
-
Fiber Optical Port:
-
8 x 1.25Gbps SFP
-
Networking Port:
-
2x 10/100/1000Mbps auto-adaptive RJ45
-
Bandwidth:
-
20Gbps
-
Communication Mode:
-
Communication Mode
-
Power Supply:
-
DC12V 3A
-
Installation:
-
Tesktop or Rackmount
-
Warranty:
-
3 Years

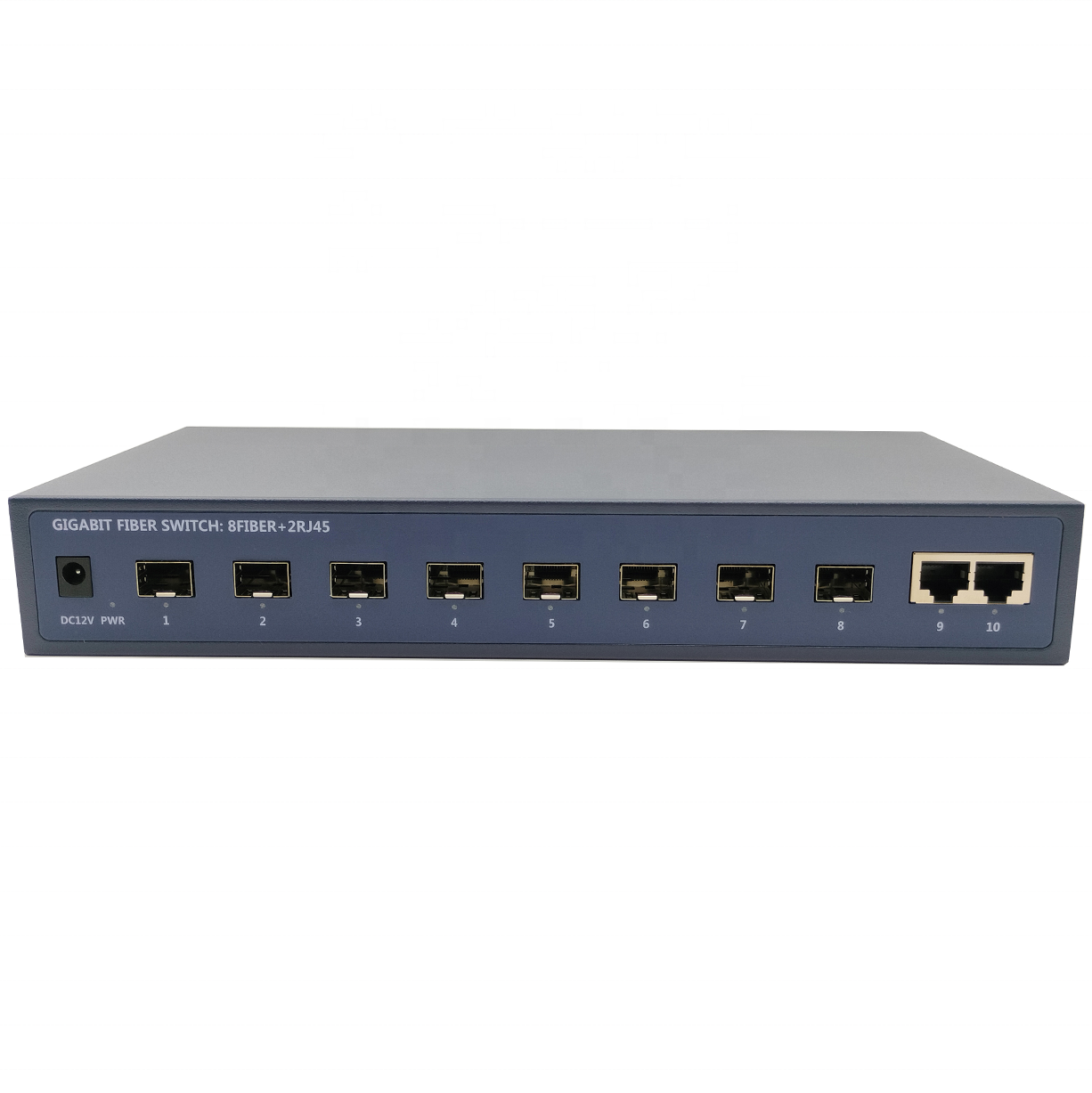

Aggregation Switch 8-10/100/1000M Fiber Optical with 2 Gigabit auto-adaptive RJ45 Uplink
Model No.:TW-508F-2G
Product Description
TW-508F-2G ,it has 8 SFP(1.25G) port and 2 10/100/1000M adaptive RJ45 interfaces, with 1U rack-mounted design. If user not choose a fixed RJ45 port, this switches is a style of Gigabit switch. also can choose different SFP,e.g. multi/single mode, single/dual fiber, single mode 20~100Km, etc. according to user needs. It can realize seamless connection between optical and electrical signals of 10M, 100M and 1000M Ethernet. It can be better meet the different needs of different users than Gigabit switches with fixed optical modules. The switch has stable performance, excellent quality, simple and convenient use, and high cost performance. suitable for small fiber optic Ethernet and some special fiber optic Ethernet networking.
Product Feature
l 8 x1.25Gbps SFP + 2x 10/100/1000Mbps auto-adaptive RJ45
l Desktop Design
l Support IEEE 802.3x half-duplex and full-duplex back pressure mode
l SFP port support 1000M full duplex
l 8x1.25G SFP optical port ( according to customer needs,Gigabit multi-mode, single-mode and single-fiber single-mode optical modules can be selected )
l Support Max.1632 bytes information packet
l Min.36W power consumption , less heat,good stability
Product Specification
|
Specification |
Description |
|
|
Model |
TW-508F-2G |
|
|
Product Introduce |
8x10/100/1000 SFP+2x10/100/1000 RJ45 convergence fiber optic switch |
|
|
Standard |
IEEE802.3/u/z/ab , 10Base-T, 100Base-TX, 1000Base-T&1000Base-X |
|
|
Port |
network ports |
1~8 : 1.25Gbps SFP uplink : 10/100/1000Mbps RJ45 Ethernet port |
|
Transmission distance |
9~10 : 100 meters SFP ports : According to different SFP |
|
|
Transmission Media |
Downlink port : SFP (1.25G) Uplink port : Cat5e/6 standard UTP cable |
|
|
Switch Parameter |
Network standard |
IEEE 802.3i , IEEE 802.3u , IEEE 802.3ab , IEEE 802.3z , IEEE 802.3x , IEEE 802.1Q(VLAN) , IEEE 802.1w(RSTP) , IEEE 802.3at |
|
Swap Mode |
Store-and- forward |
|
|
Backplane bandwidth |
20G |
|
|
frame memory |
1MKb share |
|
|
MAC Address List |
8K ( auto updated ) |
|
|
Status Indication |
Power LED |
1 power led ( Green ) |
|
(1~8 ) LED |
Gigabit optical port(Green ) |
|
|
(9~10) LED |
Green LED flashing:Data communication is normal Green LED : normal status |
|
|
Power Supply |
DC 12V3A |
|
|
Environmental Regulations |
Working Temperature |
-20 ℃ ~70 ℃ |
|
Storage Temperature |
-40 ℃ ~80 ℃ |
|
|
Humidity(non-congeal) |
0~95% |
|
|
Mechanical Attributes |
Dimensions ( L*W*H) |
280MM*153MM*44MM |
|
Color |
Black |
|
|
Reliability |
Mean time between failures ( MTBF ) |
> 50000h |
Product Dimension
Product Application
