Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YONGJIU / OEM
-
Model Number:
-
1.5mm 2.5mm 4mm 6mm
-
color:
-
red,bule,black,yellow
-
Conductor:
-
Copper Core
-
Insulation:
-
PVC Insulation Cable
-
Voltage:
-
300/500V 450/750V 0.6/1KV
-
Package:
-
100/roll
-
Certificate:
-
CE ROHS
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YONGJIU / OEM
-
Model Number:
-
1.5mm 2.5mm 4mm 6mm
-
color:
-
red,bule,black,yellow
-
Conductor:
-
Copper Core
-
Insulation:
-
PVC Insulation Cable
-
Voltage:
-
300/500V 450/750V 0.6/1KV
-
Package:
-
100/roll
-
Certificate:
-
CE ROHS
Products Description
Solid/Stranded Single Wire
I
tem: BV/ BLV
Standard: BS6004/ IEC60227
Voltage: 450/750 V
Conductor: Cu/ CCA/ AL
Material：PVC
Section: 0.5 mm²—240 mm²
FOB Ningbo or Shanghai
Technicale Date
|
Item Spec
|
Nominal corss section mm2
|
NO./Diameter of conductor mm
|
Insulation thickness mm
|
Max.outer Diameter mm
|
Ref.weight kg/km
|
Conductor resistance at 20°C≤(Ω/km）
|
|
H05V-U(2271EC05 BV)
|
0.5
|
1/0.8
|
0.6
|
2.4
|
8.44
|
36
|
|
H05V-U(2271EC05 BV)
|
0.75
|
1/0.97
|
0.6
|
2.6
|
11.02
|
24.5
|
|
H05V-U(2271EC05 BV)
|
1
|
1/1.13
|
0.6
|
2.8
|
13.85
|
18.1
|
|
H05V-R(2271EC05 BV)
|
1
|
7/0.43
|
0.6
|
2.8
|
14.97
|
18.1
|
|
H07V-U(2271EC01 BV)
|
1.5
|
1/1.38
|
0.7
|
3.3
|
20.2
|
12.1
|
|
H07V-R(2271EC01 BV)
|
1.5
|
7/0.52
|
0.7
|
3.4
|
21.62
|
12.1
|
|
H07V-U(2271EC01 BV)
|
2.5
|
1/1.78
|
0.8
|
3.9
|
31.9
|
7.41
|
|
H07V-R(2271EC01 BV)
|
2.5
|
7/0.68
|
0.8
|
4.2
|
34.89
|
7.41
|
|
H07V-U(2271EC01 BV)
|
4
|
1/2.25
|
0.8
|
4.4
|
46.95
|
4.61
|
|
H07V-R(2271EC01 BV)
|
4
|
7/0.85
|
0.8
|
4.8
|
50.2
|
4.61
|
|
H07V-U(2271EC01 BV)
|
6
|
1/2.76
|
0.8
|
4.9
|
66.8
|
3.08
|
|
H07V-R(2271EC01 BV)
|
6
|
7/1.04
|
0.8
|
5.4
|
71.04
|
3.08
|
|
H07V-U(2271EC01 BV)
|
10
|
1/3.58
|
1
|
6.4
|
111.62
|
1.83
|
|
H07V-R(2271EC01 BV)
|
10
|
7/1.35
|
1
|
6.8
|
118.61
|
1.83
|
|
H07V-R(2271EC01 BV)
|
16
|
7/1.7
|
1
|
8
|
178.68
|
1.15
|
|
H07V-R(2271EC01 BV)
|
25
|
7/2.14
|
1.2
|
9.8
|
280.51
|
0.727
|
|
H07V-R(2271EC01 BV)
|
35
|
7/2.52
|
1.2
|
11
|
378.97
|
0.524
|
|
H07V-R(2271EC01 BV)
|
50
|
19/1.78
|
1.4
|
13
|
508.07
|
0.387
|
|
H07V-R(2271EC01 BV)
|
70
|
19/2.14
|
1.4
|
15
|
715.76
|
0.268
|
|
H07V-R(2271EC01 BV)
|
95
|
19/2.52
|
1.6
|
17
|
989.79
|
0.193
|
|
H07V-R(2271EC01 BV)
|
120
|
374/2.03
|
1.6
|
19
|
1228.03
|
0.153
|
|
H07V-R(2271EC01 BV)
|
150
|
37/2.25
|
1.8
|
21
|
1509.8
|
0.124
|

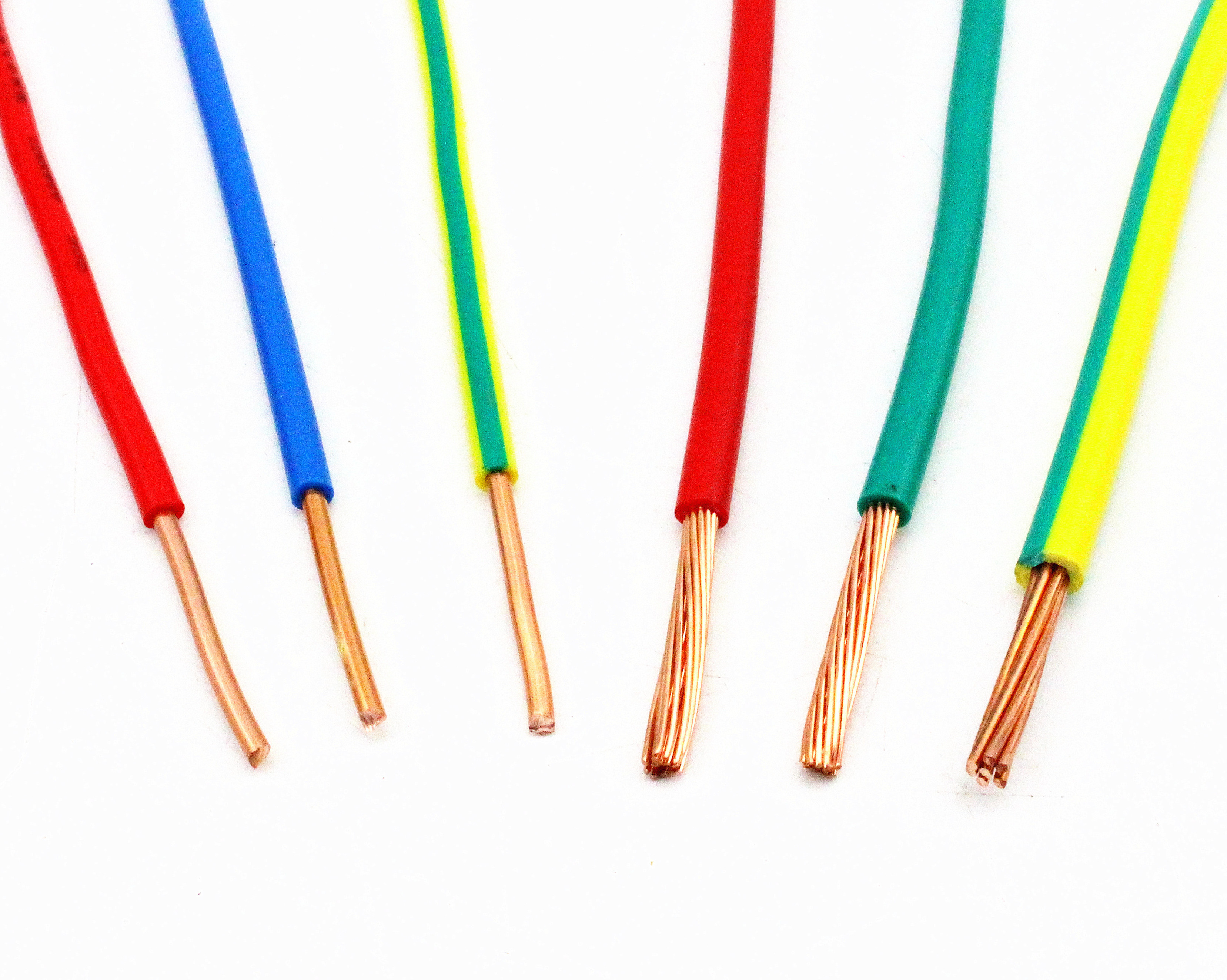

Product Pictures
