Quick Details
-
Rated Input Voltage:
-
230 V
-
Rated Output Current (MIG):
-
30-140A
-
Rated Output Voltage (MIG):
-
60 V
-
Welding Current/Voltage Range:
-
20-160A
-
Wire Feeding Speed:
-
8 m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
INWELT
-
Weight (KG):
-
8 KG
-
Input Voltage:
-
AC230V±15%
-
Input Power Frequency:
-
Single Phase 50/60Hz
-
Function:
-
MIG MAG MMA ARC Welding
-
Technology:
-
IGBT Technology
-
Accessories:
-
Mig Torch +electrode +earth Clamp
-
Current Range (TIG):
-
20-140A
-
Current Range (MMA):
-
20-140A
-
Applied Electrode:
-
1.6-3.2mm
-
Protection Class:
-
IP21S
Quick Details
-
Wire Melting Type:
-
Short Circuit Transfer
-
Max. Load Power Capacity:
-
8.6KVA
-
Rated Duty Cycle @40°C (MIG):
-
140A 30%,100A 100%, 140A 30%,100A 100%
-
Rated Input Voltage:
-
230 V
-
Rated Output Current (MIG):
-
30-140A
-
Rated Output Voltage (MIG):
-
60 V
-
Welding Current/Voltage Range:
-
20-160A
-
Wire Feeding Speed:
-
8 m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
INWELT
-
Weight (KG):
-
8 KG
-
Input Voltage:
-
AC230V±15%
-
Input Power Frequency:
-
Single Phase 50/60Hz
-
Function:
-
MIG MAG MMA ARC Welding
-
Technology:
-
IGBT Technology
-
Accessories:
-
Mig Torch +electrode +earth Clamp
-
Current Range (TIG):
-
20-140A
-
Current Range (MMA):
-
20-140A
-
Applied Electrode:
-
1.6-3.2mm
-
Protection Class:
-
IP21S
Product Description
Advantages
Multifunctional Control Panel
Adopt Unified Welding Setting The wire feed speed knob is used to set the welding current,wire feed speed and welding voltage.
|
1. Electrode Welding Mode - MMA
|
8. Output Voltage Fine-tuning Knob
|
|
2. Drawn Arc Welding with TIG Torch - TIG
|
9. Output Current Adjustment Knob
|
|
3. Welding Mode Toggle Switch with MIG Torch - MIG
|
10. MIG Welding Torch European Plug Connection Interface
|
|
4. MIG Welding - Connect CO2 Gas Welding Indicator
|
11. Air Plug Connector
|
|
5. MAG Welding - Connect CO2 + Ar Mixed Gas Welding Indicator
|
12. Positive Quick Plug Interface
|
|
6. FLUX Welding-Airless Self-shielded Flux-cored Welding Indicator Light
|
13. Negative Quick Plug Interface
|
|
7. Function Selection Adjustment Button
|
14. Connect The Wires
|

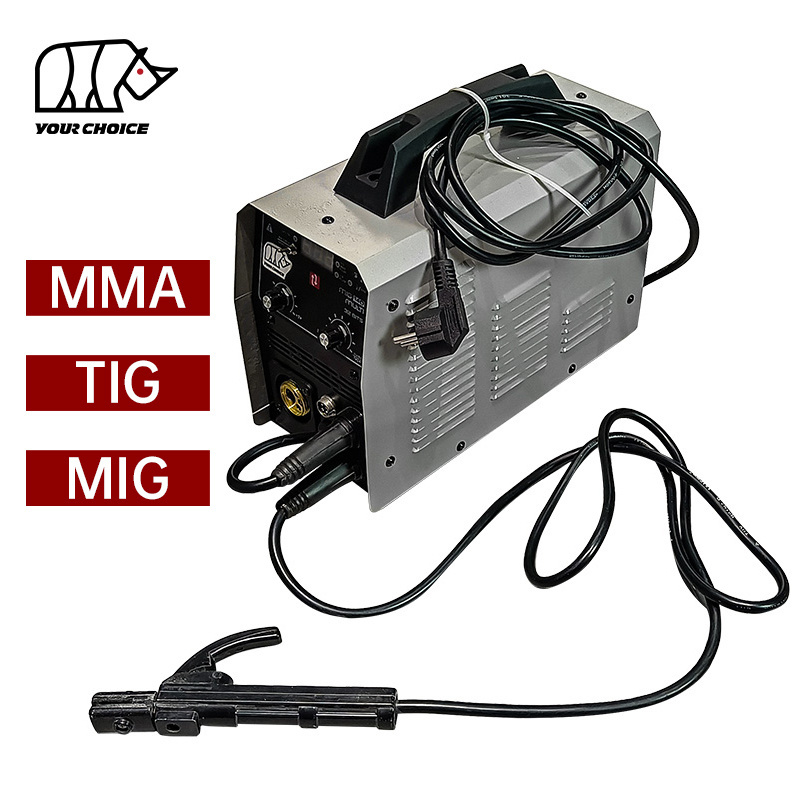

Portable Multifunctional Welding Machine
1KG Welding Wire Machine Both ordinary welding wire and flux cored welding wire can be welded.
Up-down structure
The machine adopts up-down structure, which can ensure that the fan will not easily suck the ground dust into the machine to achieve dust-proof effect.
Specification
|
Model No.
|
MIG-140E
|
MIG-160E
|
MIG-180E
|
|
|
Input Voltage
|
|
AC230V±15%, Single phase 50/60Hz
|
|
|
|
|
|
|
|
|
|
MIG
|
60V
|
65V
|
65V
|
|
|
TIG
|
40V
|
40V
|
40V
|
|
|
MMA
|
65V
|
70V
|
70V
|
|
|
Current Range
|
|
|
|
|
|
MIG
|
30-140A
|
30-160A
|
30-180A
|
|
|
TIG
|
20-140A
|
20-160A
|
20-180A
|
|
|
MMA
|
20-140A
|
20-160A
|
20-170A
|
|
|
Duty Cycle
|
|
|
|
|
|
MIG
|
140A@30% 100A@100%
|
160A@30%
|
180A@30%
|
|
|
|
|
120A@100%
|
130A@100%
|
|
|
TIG
|
140A@60% 120A@100%
|
160A@60%
|
180A@60%
|
|
|
|
|
130A@100%
|
140A@100%
|
|
|
MMA
|
140A@35%
|
160A@35%
|
170A@35%
|
|
|
|
90A@100%
|
120A@100%
|
130A@100%
|
|
|
Applied Electrode
|
1.6-3.2mm
|
1.6-3.2mm
|
1.6-4.0mm
|
|
|
Applied wire
|
|
|
|
|
|
|
|
|
|
|
|
Fe
|
0.6-0.8mm
|
0.6-1.0mm
|
0.6-1.0mm
|
|
|
Stainless Steel
|
0.3-1.0mm
|
0.3-1.5mm
|
0.3-2.0mm
|
|
|
Flux
|
0.6-0.8mm
|
0.6-1.0mm
|
0.6-1.0mm
|
|
|
Wire Diameter & Weight
|
|
|
|
|
|
Fe
|
200mm/5KG
|
200mm/5KG
|
200mm/5KG
|
|
|
Flux
|
100mm/0.5KG
|
100mm/0.5KG
|
100mm/0.5KG
|
|
|
Carton Size
|
49*30*37cm
|
|
|
|
|
Gross Weight
|
10kg
|
12kg
|
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
