Quick Details
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
64.6 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
58 g
-
Screw Speed (rpm):
-
1 - 205 rpm
-
Screw diameter (mm):
-
28 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
265MM
-
Weight (KG):
-
750 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
35 mm
-
Model Number:
-
CY-160ST-PP
-
Brand Name:
-
Zanyang
-
Power (kW):
-
2.2 kW
-
Opening Stroke:
-
190mm
-
Clamping Force (kN):
-
150
-
safe shot weight(PS):
-
2.4OZ
-
Pump motor power:
-
2.2KW/3HP
-
Clamping force:
-
15 tons
-
DIstance between tie bere:
-
265mm
-
Min. mold height:
-
158/58mm
-
number of temperature control:
-
3
-
Injection Rate:
-
105
-
Power(W):
-
4.2kw
Quick Details
-
Plasticizing Capacity(g/s):
-
40
-
Mold Height(mm):
-
58 - 158 mm
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
64.6 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
58 g
-
Screw Speed (rpm):
-
1 - 205 rpm
-
Screw diameter (mm):
-
28 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
265MM
-
Weight (KG):
-
750 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
35 mm
-
Model Number:
-
CY-160ST-PP
-
Brand Name:
-
Zanyang
-
Power (kW):
-
2.2 kW
-
Opening Stroke:
-
190mm
-
Clamping Force (kN):
-
150
-
safe shot weight(PS):
-
2.4OZ
-
Pump motor power:
-
2.2KW/3HP
-
Clamping force:
-
15 tons
-
DIstance between tie bere:
-
265mm
-
Min. mold height:
-
158/58mm
-
number of temperature control:
-
3
-
Injection Rate:
-
105
-
Power(W):
-
4.2kw

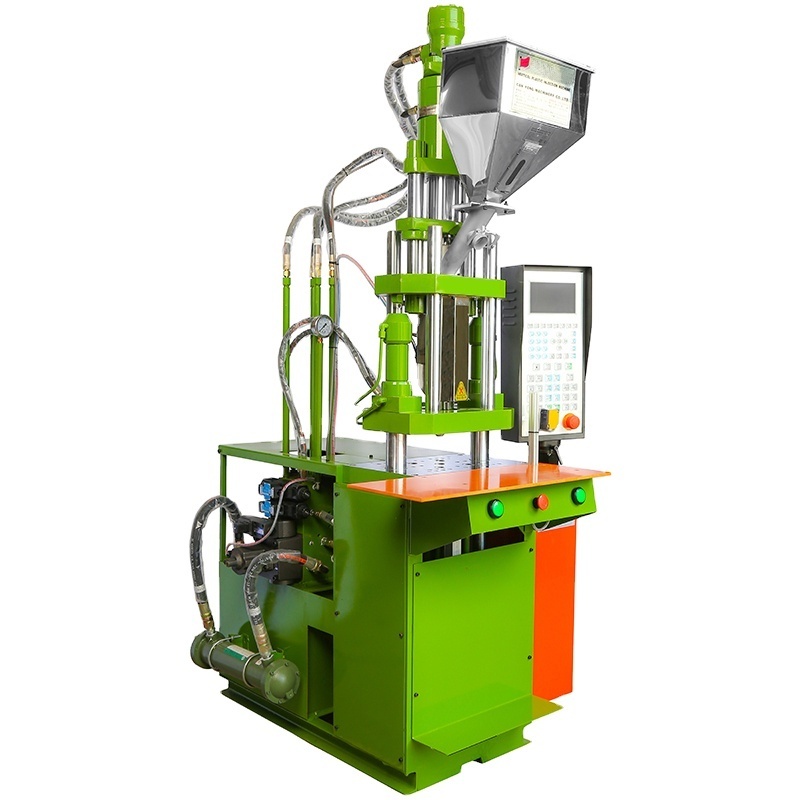

1.In-line screw type injection device.
2. Two (three) stage temperature control, injection speed, back pressure, screw speed without stage adjustment suitable for various precision plastic parts forming.
3. Lower mould fixed upper mould movable type, good positioning for inserted items, and finished product ejector device.
4. Low pressure mould closing device to protect the mould safety.
5. LCD display is adopted.
| MODEL | UNIT | CY-160ST-PP | ||
| INJECTION UNIT | Screw Diameter | Mm | 26 | 28 |
| lnjection Pressure | kg/cm' | 1183 | 1019 | |
| Theoretical Shot Volume | cm | 55.7 | 64.6 | |
| Max.Shot Weight(Ps) | g | 50 | 58 | |
| Safe Shot Weight(Ps) | oz | 1.7 | 2.0 | |
| Max.Shot Weight(PS) | cmlsec | 34.6 | 40 | |
| Injection Rate | mm | 105 | ||
| Screw Speed Max. | rpm | 0-215 | ||
| Nozzle Comtact Force | Tons | 4.45 | ||
| Nozzle Retraction Stroke | mm | 130 | ||
| Number of Temperature Control | 2 | |||
| CLAMPING UNIT | Clamping Force |
Tons
KN |
15
150 |
|
| Platen Size | mm | 450×280 | ||
| Distance Between Tie Bere | mm | 265 | ||
| Min.Mold Height | mm | 100/25 | ||
| Opening Stroke | mm | 190 | ||
| Max.Open daylight | mm | 290/215 | ||
| Ejetor Force | Tons | 1.3 | ||
| Ejetor Stoke | mm | 35 | ||
| POWER/HEADING UNIT | Max.Hydaulic Pressure | kg/cm' | 140 | |
| Pump Output | l/min | 17.5 | ||
| Oil Resservoir Capacity | l | 80 | ||
| Cooling Waer Consumption | l/hr | 400~600 | ||
| Pump Motor Power | KW/HP | 2.2/3HP | ||
| Berrel Heating Power | Kw | 1.8 | ||
| Total Weight | Kw | 4.2 | ||
| OTHER | Machine Weight | Tons | 0.95 | |
| Machine Dimensions(LxWxH) | m | 1.25 x 0.85 x 2.3 | ||
| Shipping weight | Tons | 1 | ||
| Shipping Measurements(LxWxH) | m | 1.6 × 1.0 × 2.23 | ||
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
