Quick Details
-
Insulation Material:
-
Rubber
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
woquan
-
Model Number:
-
YH
-
Rated voltage:
-
450/750v
-
Product name:
-
Flexible Copper Rubber Insulation Electric Welding Cable
-
Color:
-
Black or customize
-
Conductor:
-
Copper Core
-
Insulation:
-
rubber
-
Material:
-
copper+rubber sheath
-
Certification:
-
CCC/ISO/CE
-
Voltage:
-
450/750V
-
Standard:
-
IEC60245
-
Jacket:
-
Rubber Sheath
-
Shape:
-
Round
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
Rubber
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
woquan
-
Model Number:
-
YH
-
Rated voltage:
-
450/750v
-
Product name:
-
Flexible Copper Rubber Insulation Electric Welding Cable
-
Color:
-
Black or customize
-
Conductor:
-
Copper Core
-
Insulation:
-
rubber
-
Material:
-
copper+rubber sheath
-
Certification:
-
CCC/ISO/CE
-
Voltage:
-
450/750V
-
Standard:
-
IEC60245
-
Jacket:
-
Rubber Sheath
-
Shape:
-
Round
Products Description
Products characteristics
Temperature range: EPR insulated cables should not be higher than 65°C,EPT/EPDM insulated cables should not be higher than 90°C.
VOLTAGE RATING: 450/750V, 650/1100V
Application range:
These cables are used for lightweight hand and workshop tool while the other groups are suitable for increasingly higher levels of stress and heavy duty equipment.
-Hard-hold and power supply device acc
-Day and damp interiors, as well as for limited outdoor use acc
-Light and sound technology
Features
• EPDM insulation provides outstanding cut, abrasion and slag resistance
• Resistant to oil, chemicals, water, ozone, & solvents
• Red, Orange, Blue,Black jacket
• Other colors available upon request
|
450/750V Flexible Copper Rubber Insulation Electric Welding Cable
|
|
|
|
|
|
|
||||||
|
Specifications
|
Voltage: AC 200V~DC 400V
Standard: IEC60245
Uses:
This product is suitable for electric welding machines with a ground voltage not greater than 200V and a pulsating current value of 400V.
|
|
|
|
|
|
||||||
|
Conductor Nominal Section (mm2)
|
Number/Diameter of Core(mm)
|
Thickness of Section Sheath (mm)
|
Average Outer Diameter (mm2)
|
Minimum insulation resistance
(70℃)
|
Recommended value of carrying capacity
(A)
|
Reference weight
(KG,KM)
|
||||||
|
10
|
322/0.2
|
1.8
|
7.5
|
0.012
|
10
|
37
|
||||||
|
16
|
513/0.2
|
2.0
|
9.2
|
0.01
|
13
|
47
|
||||||
|
25
|
798/0.2
|
2.0
|
10.5
|
0.012
|
8
|
44
|
||||||
|
35
|
1121/0.2
|
2.0
|
11.5
|
0.01
|
10
|
58
|
||||||
|
50
|
1596/0.2
|
2.2
|
13.5
|
0.011
|
13
|
58
|
||||||
|
70
|
2214/0.2
|
2.4
|
15
|
0.01
|
16
|
66
|
||||||
|
95
|
2997/0.2
|
2.6
|
17
|
0.01
|
20
|
89
|
||||||
|
120
|
1702/0.3
|
2.8
|
19
|
0.009
|
27
|
137
|
||||||
|
150
|
2135/0.3
|
3.0
|
21
|
0.007
|
38
|
205
|
||||||

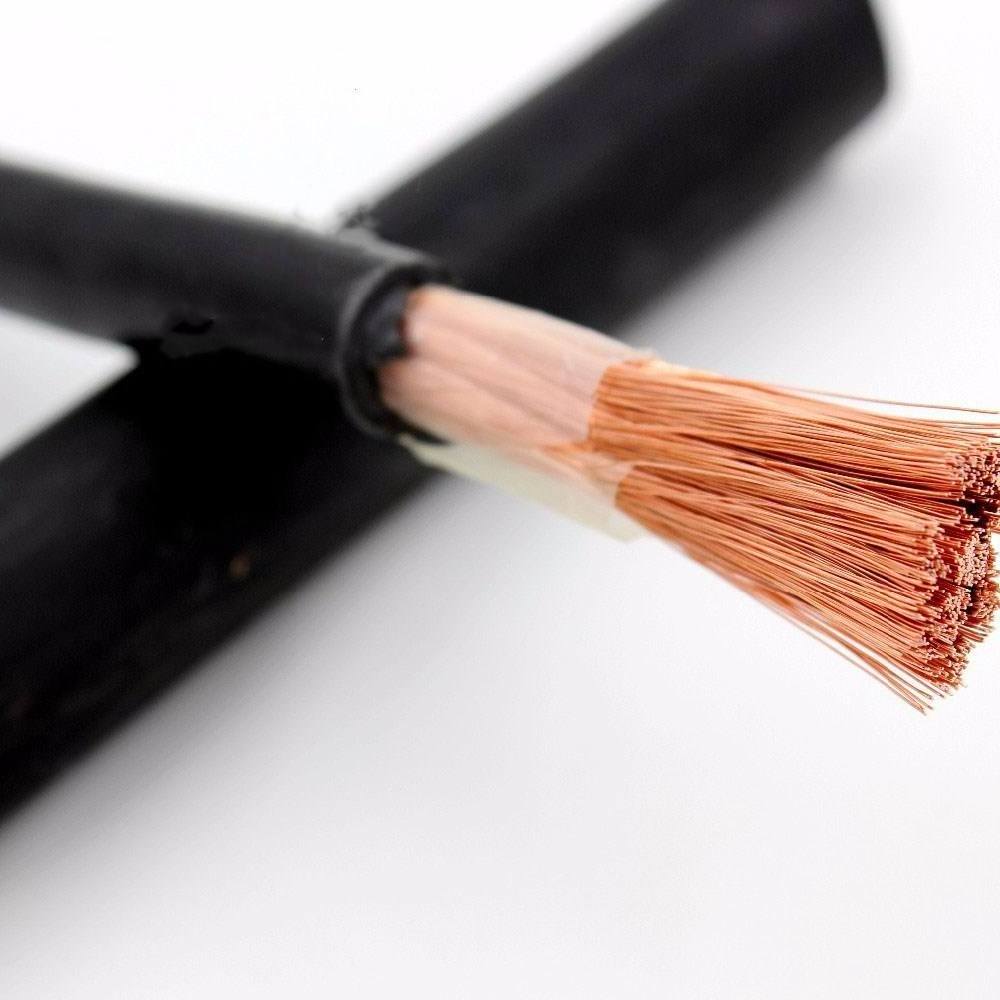

Details Images
