Quick Details
-
Application:
-
Office building,or other privacy area, Partition
-
Design Style:
-
Modern
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Valuesglass
-
Model Number:
-
PDLC Film
-
Product name:
-
PDLC Film in Roll
-
Thickness:
-
0.5mm
-
Keywords:
-
PDLC Film
-
Size:
-
Customer's Request
-
Usage:
-
Commercial Glass Doors
-
Glass thickness:
-
6+6mm
-

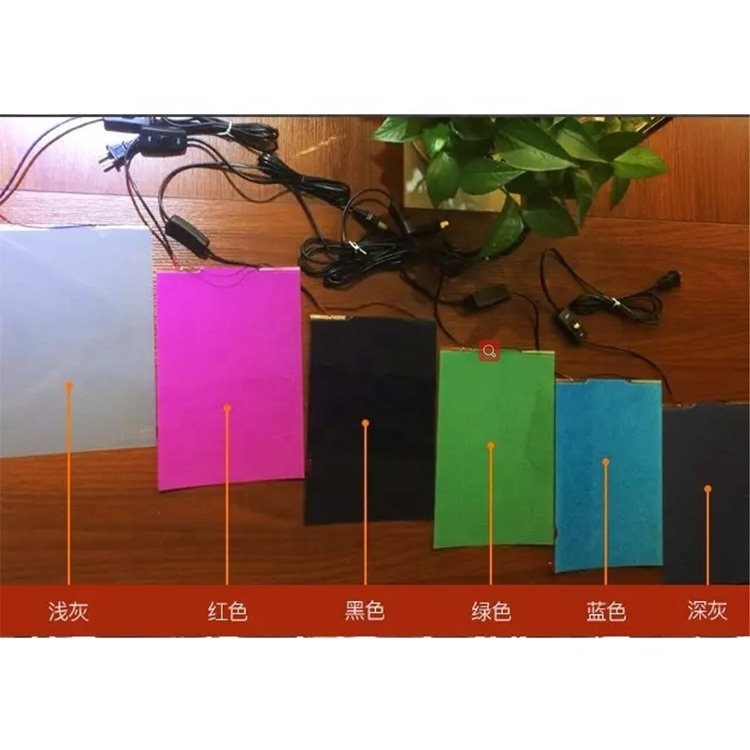

Colors:
-
F. Green Etc
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office building,or other privacy area, Partition
-
Design Style:
-
Modern
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Valuesglass
-
Model Number:
-
PDLC Film
-
Product name:
-
PDLC Film in Roll
-
Thickness:
-
0.5mm
-
Keywords:
-
PDLC Film
-
Size:
-
Customer's Request
-
Usage:
-
Commercial Glass Doors
-
Glass thickness:
-
6+6mm
-
Colors:
-
F. Green Etc
Products Description
|
|
|
|
|
Power ON
|
Power OFF
|
||||
|
2.1 Light transmittance:
|
|
Parellel light:
|
|
>=66%
|
<=1.5%
|
||||
|
|
|
Visible light:
|
Common Film
|
>=83%
|
>=55%
|
||||
|
|
|
|
High Transmittance Film
|
>=88%
|
>=57%
|
||||
|
2.2 Haze:
|
|
|
|
<=3%
|
>=90%
|
||||
|
2.3 Response time:
|
|
|
|
<10ms
|
<200ms
|
||||
|
2.4 Viewing angle:
|
|
|
|
>=150°
|
|
||||
|
2.5 Voltage:
|
|
Input:
|
|
AC220V, AC110V, DC24V, DC12V
|
|
||||
|
|
|
Operating voltage:
|
|
AC48V
|
|
||||
|
|
|
Threshold voltage:
|
|
<=20V
|
|
||||
|
2.6 Frequency:
|
|
Operating frequency:
|
|
30~400Hz
|
|
||||
|
|
|
Optimum operating frequency:
|
|
50Hz
|
|
||||
|
2.7 Power consumption:
|
|
|
|
<=5W/m2
|
|
||||
|
2.8 Continued opening time:
|
|
|
|
>80,000h
|
|
||||
|
2.9 Continued ON and OFF times:
|
|
|
|
>80,000,000
|
|
||||
|
2.10 Insulation Resistance:
|
|
|
|
>2M Ω
|
|
||||
|
2.11 Operating temperature:
|
|
|
|
Between -10℃ and 65 ℃.
|
|
||||
|
2.12 Storage temperature:
|
|
|
|
Between -20℃ and 80 ℃.
|
|
||||
|
2.13 Thickness:
|
|
|
|
0.65mm
|
|
||||
|
2.14 Max dimension:
|
|
|
Individual piece
|
<=1.5 * 3.2 meters
|
|
||||
|
|
|
|
Roll
|
0.93/1.2/1.5(W) x 20/30/50M(L)
|
|
||||
|
2.16 Adhesion for silicon glue & glass:
|
|
|
|
20g/mm
|
|
||||
|
2.17 Adhesion for PDLC film:
|
|
|
|
50g/mm
|
|
||||
