Quick Details
-
Model Number:
-
GL-GJG
-
Specification:
-
32-63mm
-
Length:
-
customization, 500 meters/Roll or customizable
-
Thickness:
-
3-5mm, 3mm-5mm
-
Standard:
-
ISO4427, EN, DIN, AS, ASTM
-

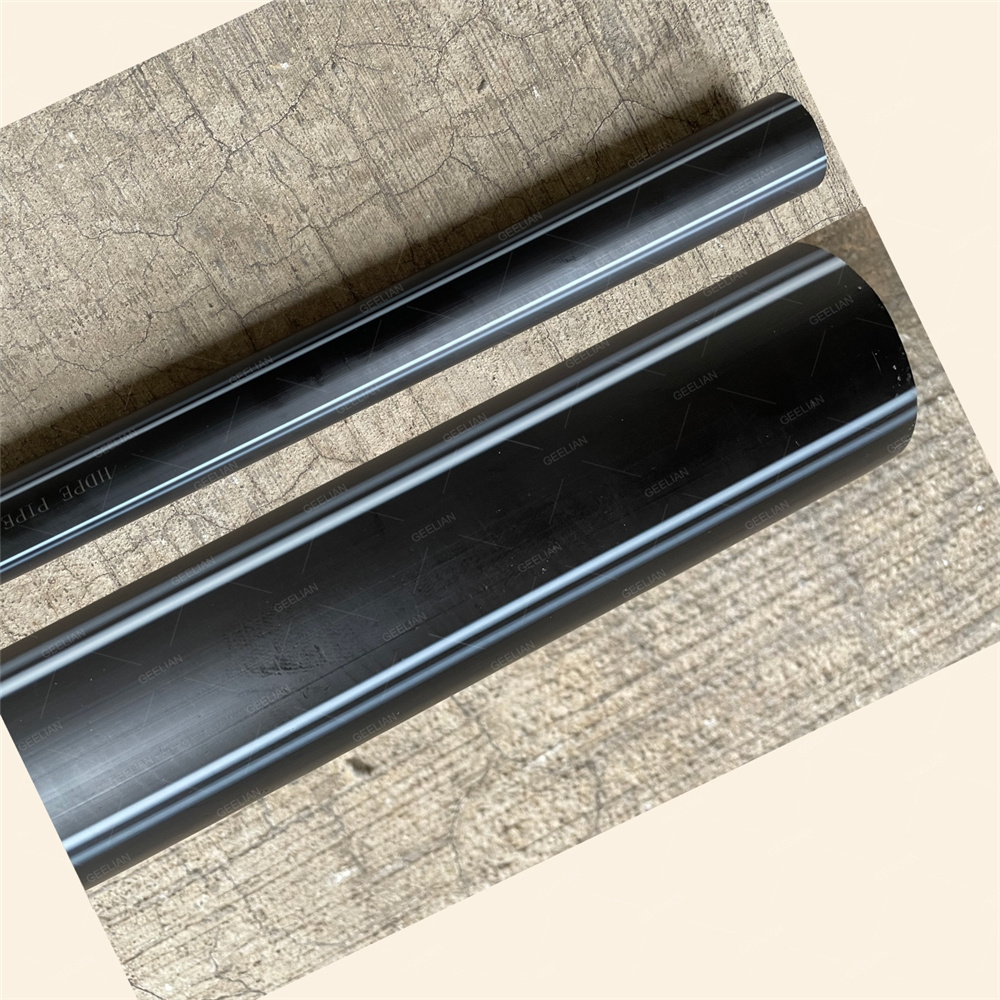

Product name:
-
Silicon core pipe
-
Color:
-
Red, black, yellow, blue,white, green etc
-
MOQ:
-
500
-
Sample:
-
Availiable
-
Life time:
-
50 years life time
-
Tempeature:
-
-40℃~60℃
-
Application:
-
Fiber Optic Cable Protection
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
China
-
Brand Name:
-
Geelian
-
Model Number:
-
GL-GJG
-
Specification:
-
32-63mm
-
Length:
-
customization, 500 meters/Roll or customizable
-
Thickness:
-
3-5mm, 3mm-5mm
-
Standard:
-
ISO4427, EN, DIN, AS, ASTM
-
Product name:
-
Silicon core pipe
-
Color:
-
Red, black, yellow, blue,white, green etc
-
MOQ:
-
500
-
Sample:
-
Availiable
-
Life time:
-
50 years life time
-
Tempeature:
-
-40℃~60℃
-
Application:
-
Fiber Optic Cable Protection
| PRODUCTS DESCRIPTION |
|
Product name
|
Price 8 Inch Corrugated Drain Culvert Pipe Prices
|
|
Material
|
HDPE
|
|
Length
|
500 meters/Roll or customizable
|
|
diameter
|
32-63mm
|
|
Color
|
Red, black, yellow, blue,white, green etc
|
|
Remarks
|
Good sealing performance, chemical corrosion resistance, low engineering cost,popular
|
|
The inner silicon core is a solid, permanent lubricant
|
|
|
Homepage
|
| Specification | Outer diameter(mm) | minimum inner diameter | Pipe thickness(mm) | ||
| standard values | allowable variation | standard values | allowable variation | ||
| Φ32/26 | 32 | 0.3 | 26 | 3 | 0.2 |
| Φ34/28 | 34 | 0.3 | 28 | 3 | 0.35 |
| Φ40/33 | 40 | 0.35 | 33 | 3.5 | 0.35 |
| Φ46/38 | 46 | 0.35 | 38 | 4 | 0.35 |
| Φ50/41 | 50 | 0.4 | 41 | 4.5 | 0.35 |
| Φ63/54 | 63 | 0.45 | 54 | 5 | 0.35 |
HDPE pipe Features:
1. The inner core of the silicon core layer is a solid, permanent lubricant;
2. The silicon core layer of the inner wall is synchronously extruded into the wall of the high-density polyethylene pipe, and uniformly distributes the inner wall of the pipe, does not peel off, detaches, and has the same life as the silicon pipe;
3. The silicon core layer of the inner wall has the same physical and mechanical properties as the high density polyethylene;
4. The frictional characteristics of the inner core silicon core layer remain unchanged, and the cable can be repeatedly extracted in the pipe;
| WORKSHOP CORNER |
| PACKING & DELIVERY |
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL OR LCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 7-30 days for batch goods.
Payment Terms
1. Payment: T/T, L/C,Western Union, MoneyGram; 30% deposits; 70% balance before delivery or against copy of BL.
2. MOQ: 100pc
| PRODUCT CATALOGUE |
| COMPANY PROFILE |
1.We are Alibaba Assessed Gold Supplier. Have strict quality and credit management system.
2.We are one company combined of trading and factory ,Focus on studying and manufacturing security and protection products ,best production capability ,best quality control, Best Service .
3.100% QC inspection Before Shippment.
4. We try best to reach competitive price on the condition of the same quality.
