Quick Details
-
Model Number:
-
N1008A
-
Material:
-
\
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PINTECH
-
Model Number:
-
N1008A
-
Material:
-
\
Bandwidth 50MHz Voltage overload protection Input impedance 2MΩ//2.5pF each side ground 1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating.
| Product Name |
N1008A (800Vp-p,50MHz) |
|
Short Description |

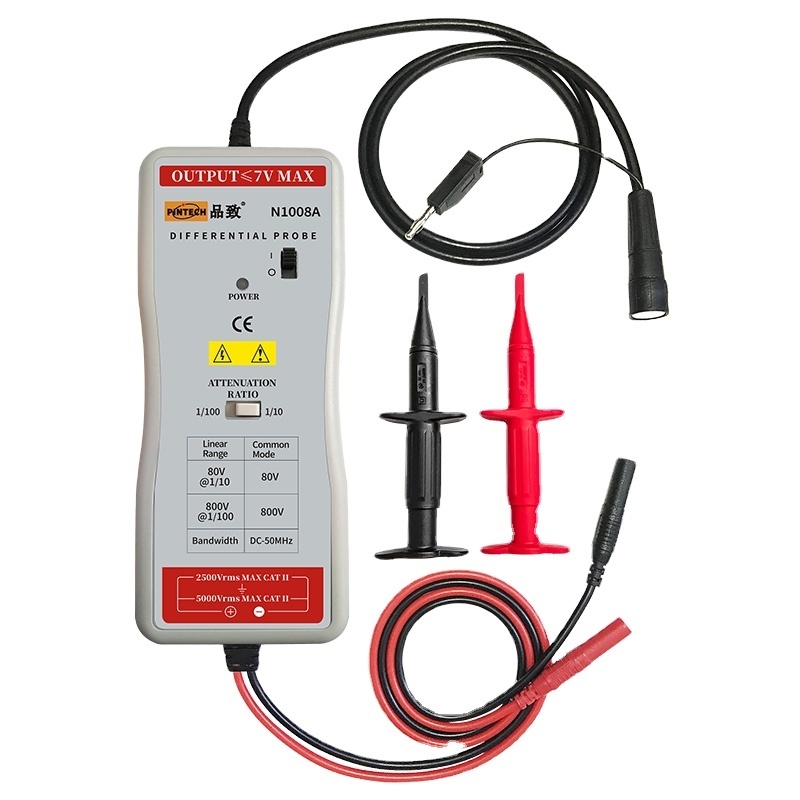

PINTECH N1008A(50MHz X100 X10 800Vp-p) |
|
Bandwidth |
DC-50MHz |
|
Accuracy |
±1% |
|
In put Impedance |
4MΩ//1.3 p F each side ground |
|
Input Voltage |
|
|
-Swing(into 50 KΩ load) |
7V |
|
-Offset(typical) |
<±5Mv |
|
-(typical) |
50Ω(for using 1M ohm input system oscilloscope) |
|
Power Supply |
|
|
Options |
power leads |
|
Length of BNC Cable |
90cm |
|
Length of Input Leads |
60cm |
|
Weight |
500g |
|
Attenuation Ratio |
1:100/10 |
|
CMRR(typical) |
-80dB@60Hz,-50dB@100KHz |
|
Max. input differential-mode voltage(Vp-p) |
|
|
Max. input and ground potential differential voltage(Vp-p) |
800V@1/100 & 1/10 |
|
(CMRR) |
CATII 1000V,CATⅢ 600V |
