JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine
JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine
JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine
JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine
JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine
JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine
JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine
JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine

JX 1850 Cnc metal channel 3d bending advertisement LED letter making ECONOMIC Channel Letter Bending Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Year:
2023
Weight (KG):
200
Machine Type:
Coils/profiles Bending chaneling Machine
Max Material Width:
150mm(5.9')
Applicable material:
stainless steel strips and aluminum strips
Machine size:
1500*700*1430MM
Material width:
≤150mm
Gas pressure:
0.6Mpa
Voltage:
220V50HZ1P
Working principle:
Auto feed, Auto Slot(Cut), Auto Bend

Quick Details

Place of Origin:
Shandong, China
Brand Name:
JX AUTO CNC Bending machine for strip steel, JX AUTO CNC Bending machine for strip steel
Core Components:
ECONOMIC Channel Letter Bending Machine
Year:
2023
Weight (KG):
200
Machine Type:
Coils/profiles Bending chaneling Machine
Max Material Width:
150mm(5.9')
Applicable material:
stainless steel strips and aluminum strips
Machine size:
1500*700*1430MM
Material width:
≤150mm
Gas pressure:
0.6Mpa
Voltage:
220V50HZ1P
Working principle:
Auto feed, Auto Slot(Cut), Auto Bend
Products Description

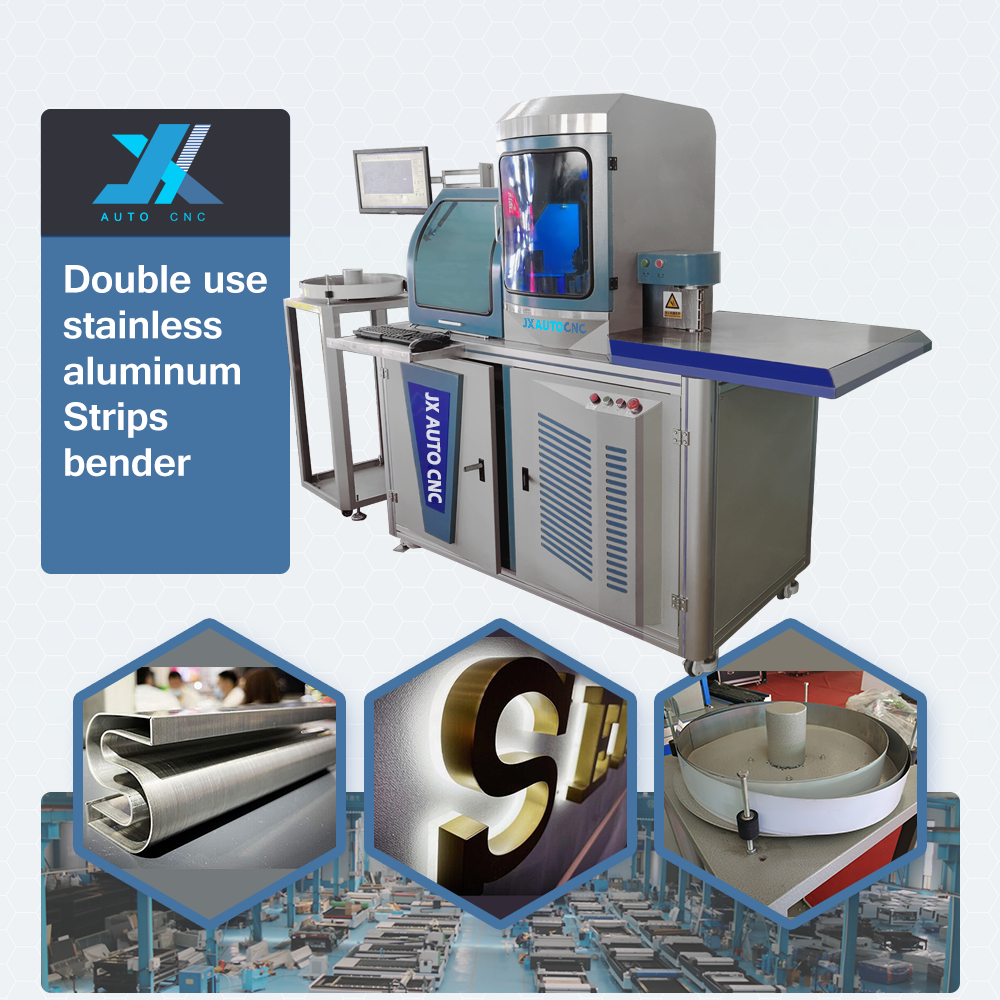

X-815 3D letter double use bender machine

(1) Two in one function ,bending stainless steel strips and aluminum strips also .
(2) Automat ic feed, automatic slot, automatic bend and automatic to adjust cutting depth.
(3)Working Principle: It controlled by the computer, can finish Letter Return/Outside in one time aft er click "Run" button.
(4) High speed.， low energy consumption.
(5) High precision. Bend the letter" return" that match perfectly to the CNC router-cut face and back
(6) Low labor cost. Our channel letter bender has a production capability equivalent to about 10-20 people.
(8) Multiple specifications of aluminum material available.
(9) CE certificate

Machine Machine Features

1. Automatic computer adjusting system, no need to adjust the slotting depth by hand.
2. Fast bending speed, one time forming, big curve arc is flapped, small curve arc is squeezed.
3. Material width is 30-150mm,thickness is 0.4-1.2mm.
4. Low power consumption,the using power less than 1500W.
5. Can read various vector files in DXF, AI, PLT format, matching with engraving files.
6. Double side slotting,the bending angle of flat sheet is from -180° to 170°.
7. Adopt high quality encoder,high reliability, long lifetime and strong anti-interference performance.
8. Special parameter requirement can be customized.
Product Paramenters
Working Principle
Auto feed, Auto Slot(Cut), Auto Bend,
Auto Adjust Cutting Depth by Software
(Brand-New Technology owned by Our Own Company)
Processing Material
Aluminum,SS,Copper,Iron
Max Material Width
150mm(5.9’)
Aluminum Thickness
≤1.5mm(0.059’)
SS Thickness
≤1.0mm(0.0393’)
Cutting Mode
Blade & Planner Cutting.
Two cutting mode switch as per material or user habit
Alu-Cut(Slot) Degree
45-135 Degree
Speed
600-1000 Meters/8 Hour
Min Bending Diameter
Alu: 12mm(0.47’); SS/Copper/Iron:4mm(0.16’)
Bending Mode
Replaceable Bender: Alu: Rolling Bending; SS/Copper/Iron:Pat Bending
Voltage
220V
Power
Max Output Power:1500W
File Format
AI,DXF,PLT
Air Compressor
0.6Mpa
Package Details
Machine Size
1500*700*1430MM
Machine Weight
385kgs
Package Size
1650*900*1700MM/2.6CBM
Machine Weight
450kgs
Details Images


The following are introduction to the main parts of the machine


Feeding System
The feeding part is clamped by rubber rollers and driven by gear belt. Fast speed can realize the continuous feeding.It is suitable for flat aluminum,aluminum profile and other materials.

High Precision Encoder
The high quality encoder used in this machine has high reliability, long life and strong anti-interference performance. With the high-speed precision motor, Its high-precision performance makes the feeding control more accurate.


Imported Milling Cutter
The milling cutter used germany imported alloy-coated tool bit, increase the using lifetime.The tip of the cutter is rounded,ensure the flat sheet bending angle is from -180°to 170°.



Bending Tool
The bending part adopts the working mode of two-axis linkage bending, which is equipped with servo motor and speed reducer. It has
fast speed, high precision, no damage to the material surface and small bending interference.

Auto Depth Adjusting System
The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.



Control system
The control card and software is original leetro control system,easy to study and operate,ensure the machine calculating size with zero error.The control card running stable with strong anti-interference ability.

Title goes here.

Available Material: Aluminum, Stainless Steel, Carbon Steel, Copper, etc.
Flat Aluminum Coil, Edge Folding Aluminum Coil, Channelume, 3D Material, Extruding Aluminum
Profile, Stainless Steel, Galvanized Iron, Copper, etc.
