Quick Details
-
Specification:
-
DN20 to DN1600mm
-
Length:
-
5.8 or 11.8 Meter/Piece
-
Thickness:
-
2.3mm to 57.3mm
-
Standard:
-
ISO, AS, EN, DIN, GOST
-
Production capacity:
-
160,000 tons/year
-
Ranking:
-
Top10 manufacturer of plastic pipe and fitting in
-
Registered capital:
-
$52,500,000
-
Brand:
-
Junxing, China Famous Trade
-
OEM service:
-
Available
-
Name:
-
ISO4427 hdpe dredging pipe hdpe floating dredge pi
-
Working condition:
-
-20℃ to 40℃
-
Working life:
-
50 years life under normal conditions
-
Applications:
-
Water supply, gas supply, geothermy, irrigation, d
-
Connection:
-
Socket fusion, butt fusion, electro fusion, flange
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
JUNXING
-
Model Number:
-
PE100
-
Specification:
-
DN20 to DN1600mm
-
Length:
-
5.8 or 11.8 Meter/Piece
-
Thickness:
-
2.3mm to 57.3mm
-
Standard:
-
ISO, AS, EN, DIN, GOST
-
Production capacity:
-
160,000 tons/year
-
Ranking:
-
Top10 manufacturer of plastic pipe and fitting in
-
Registered capital:
-
$52,500,000
-
Brand:
-
Junxing, China Famous Trade
-
OEM service:
-
Available
-
Name:
-
ISO4427 hdpe dredging pipe hdpe floating dredge pi
-
Working condition:
-
-20℃ to 40℃
-
Working life:
-
50 years life under normal conditions
-
Applications:
-
Water supply, gas supply, geothermy, irrigation, d
-
Connection:
-
Socket fusion, butt fusion, electro fusion, flange
ISO4427 hdpe dredging pipe hdpe floating dredge pipe for water supply sewer drainage sand suction dredger cutter suction dredger
Materials: PE100/PE80
Diameter: DN20 to 1600mm.
OEM/ODM: Acceptable.
Certificate: ISO, GOST, CE, OHSAS etc.
Inspection: SGS, BV and other third party inspection are accepable.
Advantages: Strength & toughness, Trouble-free installation, F lexibility, Resistance to corrosion.
Photos of production:

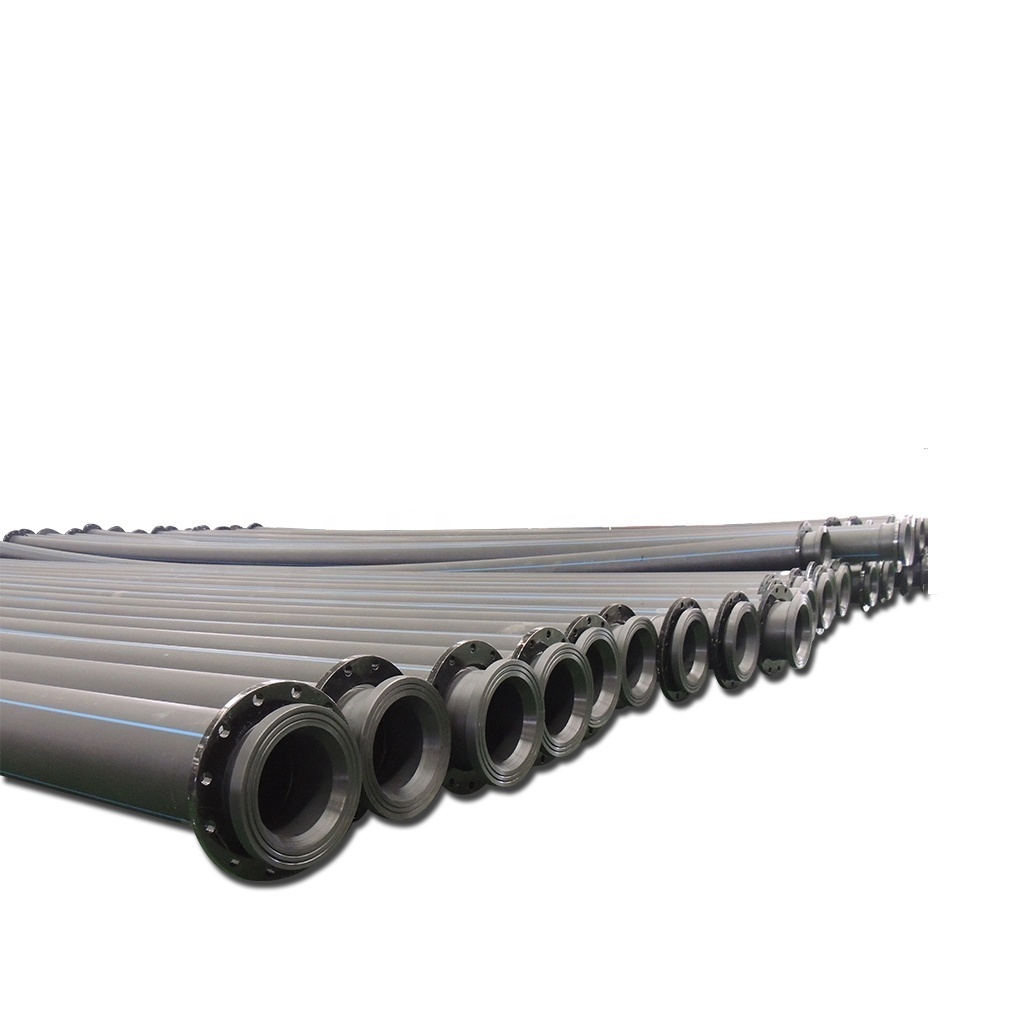

About HDPE pipe for hdpe dredge pipe floating dredge pipe :
Junxing brand HDPE dredge pipes have unique features for a long term,corrosion free abrasion resistance&low maintenance performance in the seas,lakes and all other water bodies. Our high density PE pipes are fitted with welded stub-ends&steel flanges. It's made from virgin compounded HDPE materials for high performance. Higher abrasion resistant varieties also available.
Specificaiton of HDPE pipe /
hdpe dredge pipe floating dredge pipe:
|
Nominal Diameter(mm) |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|
PN6 |
PN8 |
PN10 |
PN12.5 |
PN16 |
|
|
Thickness |
Thickness |
Thickness |
Thickness |
Thickness |
|
|
20 |
2 |
2 |
2 |
2 |
2 |
|
25 |
2 |
2 |
2.3 |
2.3 |
2.3 |
|
32 |
2 |
2.3 |
2.3 |
2.3 |
3 |
|
40 |
2.3 |
2.3 |
2.5 |
3 |
3.7 |
|
50 |
2.3 |
2.5 |
3 |
3.7 |
4.6 |
|
63 |
2.9 |
3 |
3.7 |
4.7 |
5.8 |
|
75 |
3 |
3.7 |
4.5 |
5.6 |
6.8 |
|
90 |
3.7 |
4.3 |
5.4 |
6.7 |
8.2 |
|
110 |
4.2 |
5.3 |
6.6 |
8.1 |
10 |
|
125 |
4.8 |
6 |
7.4 |
9.2 |
11.4 |
|
140 |
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
|
160 |
6.2 |
7.7 |
9.5 |
11.8 |
14.6 |
|
180 |
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
|
200 |
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
|
225 |
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
|
250 |
9.6 |
11.9 |
14.8 |
18.4 |
22.7 |
|
280 |
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
|
315 |
12.1 |
15 |
18.7 |
23.2 |
28.6 |
|
355 |
13.6 |
16.9 |
21.1 |
26.1 |
32.2 |
|
400 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
|
450 |
17.2 |
21.5 |
26.7 |
33.1 |
40.9 |
|
500 |
19.1 |
23.9 |
29.7 |
36.8 |
45.4 |
|
560 |
21.4 |
26.7 |
33.2 |
41.2 |
50.8 |
|
630 |
24.1 |
30 |
37.4 |
46.3 |
57.2 |
|
710 |
27.2 |
33.9 |
42.1 |
52.2 |
64.5 |
|
800 |
30.6 |
38.1 |
47.4 |
58.8 |
72.6 |
|
900 |
34.4 |
42.9 |
53.3 |
66.2 |
81.7 |
|
1000 |
38.2 |
47.7 |
59.3 |
72.5 |
90.2 |
|
1200 |
45.9 |
57.2 |
67.9 |
88.2 |
- |
|
1400 |
53.5 |
66.7 |
82.4 |
102.9 |
- |
|
1600 |
61.2 |
76.2 |
94.1 |
117.6 |
- |
Applications of HDPE pipe / hdpe dredge pipe floating dredge pipe :
1. Water supply system.
2. Industrial such as ducts for ventilation and air conditioning.
3. Environmental protection such as waste treatment plant pipes.
4. Agriculture such as Sprinkler piping for irrigation.
5.
Floating dredge pipe, floating sand suction pipe, floating cable casting lines ect.
6. Transport sand/mud/slurry for dredger in dredging projects or sand suction.
7. Water transportation,slurry transportation,Vaccum,ocean filth transportation.
8.
Others,such as Telecommunication cable ducting.
Pls see below or contact me for more information of HDPE pipe /
hdpe dredge pipe floating dredge pipe:
