fiberglass gridding

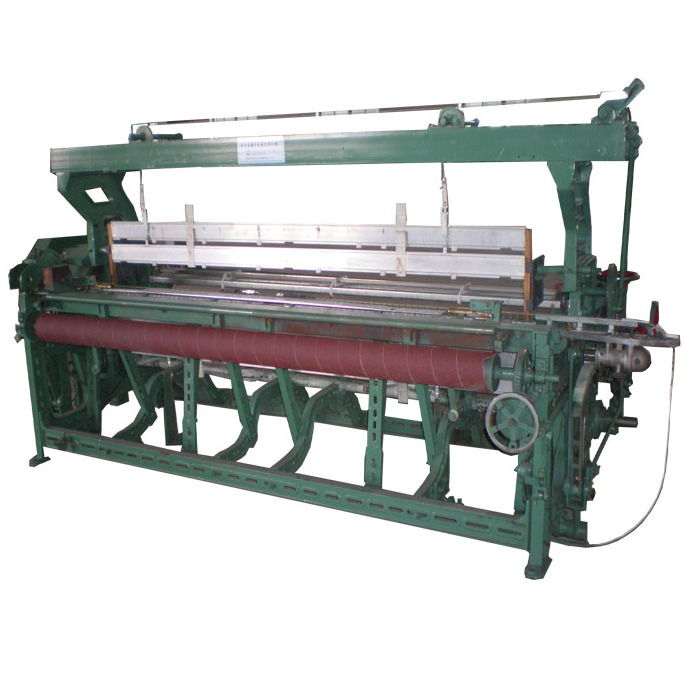

Rapier loom Fiberglass gridding mesh production line Fiberglass Mesh Weaving Machine

line including

weaving machine

re-winding machine

forming machine

Product specialty : high product efficiency,good quality,little waste material,breadth can reach 2300mm,

the machine work steadily,low noise,use to wind the gridding cloth.

Mostly technique parameter :

The width:2300mm

rotate speed:110-170R.P.M

The power:1.5kw( 8grade)720 R.P.M

exteriorsize:lengthxwidthxhigh 4850x1827x2120mm

day output:120-150m2/hour

electricity control: P.L.C

the total machine weight:1900kg

Wire re-winding nachine

apply range: fiberglass,single wire imbue fiber,stick wall cloth in-and-out,SBS waterproof wrap cloth,roving cloth without alkali,head preservation cloth,plain windowscreening

and so on tidy up request about fiberglass.

Technique character :work simpleness,technique advance,can finish longitude and axis together,with self-acting truncation machine,with electricity box,ensure the quality of longitude and axis,smooth cloth cover and equality.

Specification : the mostly machine breadth(2.3m),can product according to the clients’ request.

Yarn shelf:length4.85m,width 0.90m,high 2.0m

Ingot quantity:960

Together weight:500kg

Machine head:width 4.0m,high1.0m,length1.5m

Electricity machine:3kilowatt timing

250 type slowdown machine:1:31.5

Output:1500-2000m/h

Together weight:1500kg

Occupy room:4x12m

Fiberglass griding coating machine

The series products :use to stick wall cloth, gridding cloth and all kinds of glass cloth in-and-out, glue,drying,finalize the design,cut side or chop in the weidth and length that need.

After fabric molding,no displacement,no fixdness.coal char bake cloth machine,

mesh coating and forming machine,with temperature control machine,counter.

the day output can provide 5desk weave machine.

Mostly parameter :

Inside width: 1.2m

Oven exterior size:length 8m,width1.5m,thickness 0.70m

Weight:1500kg

Machine head: width1.8m,length 1.4m.

Electricity machine: 22kilowatt timing

80 type slow-down machine

Lead wind machine:2.2 kilowatt

Machine trail:width1.4m,length1.5m

Output:500-800m/h

Occupy room:3x18m

Mesh slitting machine

Thickness: 1mm

Minimum Cutting width: 20mm

Speed: 1000-1500mm/h

Power: 2.2KW

Width: 1200mm( or order according to requirement)

Weight:500kg

Including: feeding parts, slitting parts and recoiler

Noted: the machine can also slitting steel sheet
