Quick Details
-
Brand Name:
-
SONOR
-
Model Number:
-
FQS-U30G
-
Operating Temperature:
-
120°C
-
Control Type:
-
Paddle
-
Pipe connector:
-
1" to 6" Threads
-
water flow switch:
-
paddle water flow switch
-
Certification:
-
Y
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1-100L/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SONOR
-
Model Number:
-
FQS-U30G
-
Operating Temperature:
-
120°C
-
Control Type:
-
Paddle
-
Pipe connector:
-
1" to 6" Threads
-
water flow switch:
-
paddle water flow switch
-
Certification:
-
Y
ail:
liquid flow switch,
paddle flow switch,
magnetic water flow switch

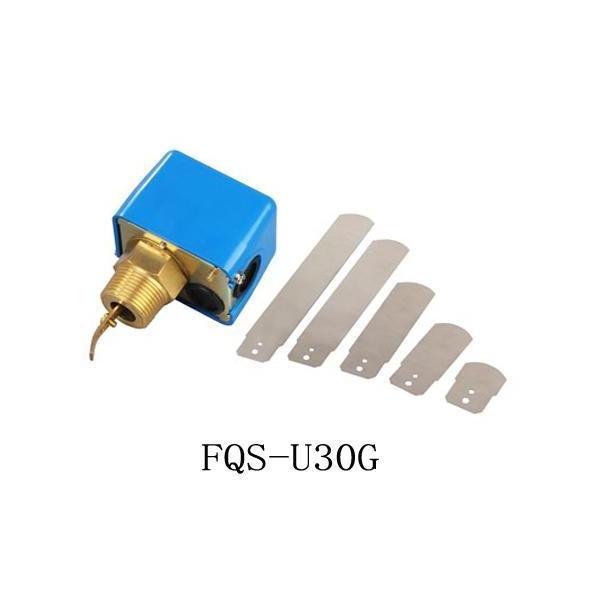

Product name: Water Flow Switch FQS-U30G
Product description:
• For use on liquid lines such as water, ethylene glycol, or any non-corrosive fluid in chillers, pumps, condensers, boilers, etc.
• With S.P.D.T. contact mechanism.
• Paddle consists of three segments that can be removed or trimmed for use in 1 to 6" pipe.
Specification
Electrical ratings
|
Rated Voltage(V) |
Power Cosφ |
125V AC |
250V AC |
|
|
Rated Amps(A) |
||||
|
Non-Inductive current |
1 |
15 |
15 |
|
|
Induction current |
Rated current |
0.75 |
3.5 |
2.5 |
|
Locked Rotor current |
0.45 |
21 |
15 |
|
|
Pipe Size |
Paddle Size |
#Adjustment range (L/min) |
|||
|
Min. |
Max. |
||||
|
Flow Decrease |
Flow Increase |
Flow Decrease |
Flow Increase |
||
|
1" |
1" |
18 |
28 |
45 |
55 |
|
1-1/4" |
43 |
53 |
100 |
120 |
|
|
1-1/2" |
63 |
78 |
135 |
162 |
|
|
2" |
1"+2" |
50 |
65 |
150 |
180 |
|
1" |
151 |
181 |
220 |
264 |
|
|
2-1/2" |
1"+2" |
105 |
126 |
355 |
426 |
|
1" |
356 |
427 |
360 |
432 |
|
|
3" |
1"+2"+3" |
100 |
120 |
225 |
270 |
|
1"+2" |
226 |
271 |
480 |
576 |
|
|
1" |
481 |
577 |
510 |
612 |
|
|
4" |
1"+2"+3" |
200 |
240 |
385 |
462 |
|
1"+2" |
386 |
463 |
820 |
984 |
|
|
1" |
821 |
985 |
870 |
1044 |
|
|
5" |
1"+2"+3" |
350 |
420 |
594 |
713 |
|
1"+2" |
595 |
714 |
1265 |
1518 |
|
|
1" |
1266 |
1519 |
1342 |
1610 |
|
|
6" |
1"+2"+3" |
530 |
636 |
836 |
1003 |
|
1"+2" |
837 |
1004 |
1780 |
2136 |
|
|
1" |
1781 |
2137 |
1890 |
2268 |
|
# Flow decrease ... Flow amount at which the switch operates on flow decrease.
Flow increase ... Flow amount at which the switch operates on flow increase.
|
Type No. |
Paddle Size |
Connection |
Max. Working Pressure |
Fluid Temp. |
Max. Flow Velocity |
Wt. |
|
|
Size |
Style |
||||||
|
FQS–U30G |
3" |
1" |
R |
0.98{10} MPa{kgf/cm2} |
5-80°C |
2m/s |
0.6 kg |
