Quick Details
-
Certification:
-
-
-
Product name:
-
Magnetic levitation generator
-
Rated Voltage(v)::
-
220V/380V/420V or customized
-
Rated rotated speed(r/m)::
-
100 170 150 RPM or customsized
-
Top net weight(kg)::
-
100KGS
-
start Torque( N*M):::
-
14.3Nm
-
Shell Material::
-
Carbon Steel
-
Factory Direct Sale::
-
YES
-
OEM ODM Service::
-
YES
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ALLRUN
-
Model Number:
-
ARD-10KW
-
Certification:
-
-
-
Product name:
-
Magnetic levitation generator
-
Rated Voltage(v)::
-
220V/380V/420V or customized
-
Rated rotated speed(r/m)::
-
100 170 150 RPM or customsized
-
Top net weight(kg)::
-
100KGS
-
start Torque( N*M):::
-
14.3Nm
-
Shell Material::
-
Carbon Steel
-
Factory Direct Sale::
-
YES
-
OEM ODM Service::
-
YES
Cheap price LOW torque 1KW 2KW 3KW 5kw 10kw 5kw disc coreless generator free energy Magnetic levitation generator
Main Features of 10 kw Magnetic levitation generator:
|
Model |
ARD-10kw |
|
Rated Power(w) |
10kw |
|
Max Power(w) |
20kw |
|
Rated Voltage ( v) |
220v380V/420V ( can adjust for your requirement) |
|
Rated rotated speed(r/m) |
133r/m |
|
Top net weight(kg) |
120kg |
|
Output Current |
AC |
|
started Torque(N*M): |
14.4 Nm |
|
generator |
3 phase permanent magnet synchronous generator |
|
Insulation Class: |
F |
|
Service Life : |
More Than 25 years |
|
Bearing |
HRB or for your order |
|
Shaft Material |
Iron |
|
Shell Material |
Carbon Steel |
|
Permanent Magnet Material |
Rare Earth NdFeB |
|
Protection Grade |
IP55 |
|
Lubrication |
Lubrication Grease |
|
Working temperature |
-40℃ - 80 ℃ |
Corelless, direct drive, low RPM Magnetic levitation generator
Low start up speed due to low cogging and resistive torque design
High standard, quality components for use in harsh and extreme environments for vertiall wind turbines
High efficiency and Low mechanical resistance energy loss
Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure
High strength from the specially desy selecign structure and fully heat treatment Aluminium
Generator is designed using speciallted material and treated to resist corrosion and oxidation
Designed for reliable and long operational lifetime under long-term full output
Designed for 25-year operation life
Patent protected design
So it has been widely used in the following area
1.Driven by Wind Power --------Wind turbine
2.Driven by Water Power ------- Hydro generator
3.Driven by Belt with Motors
4.Driven by Motor
5.Dirven by test plant
6.Dirven by yourselves creation
7.Driven the permanent magnet generator and make it rotate then it can generate power

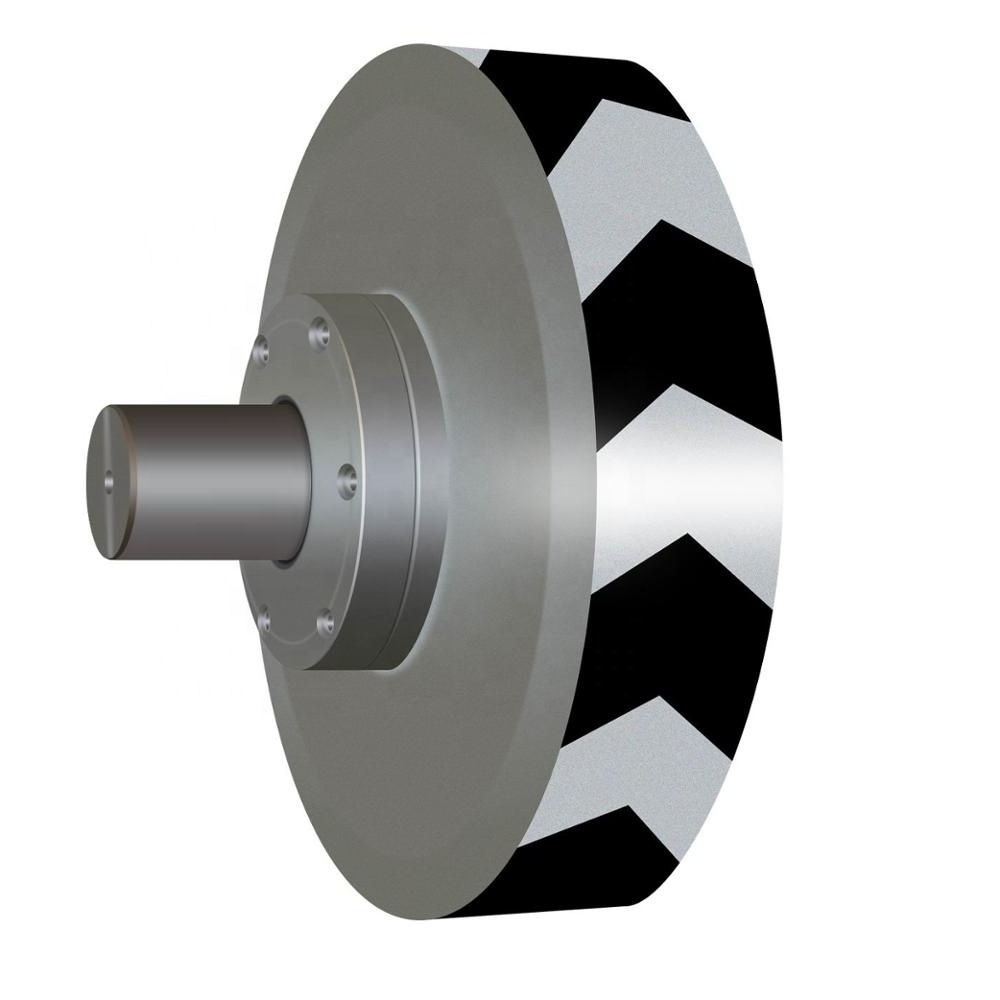

Main photoes of 10 kw permanent magnet motor for rererence :
Standard packing for 10 kw Magnetic levitation generator
OTHER PRODUCTS PRODUCED IN OUR COMPANY
Different size on grid off grid vertical and horizon style wind turbine
Different size Mono Poly solar panels
Different size both off grid and on grid solar panel system
