Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Industrial
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ADTO
-
Model Number:
-
ADTO STEEL PLANK
-
Surface:
-
pre-galvanized
-
Processing:
-
antiskip and Perforated
-
Support:
-
plain/box stiffener
-
Certification:
-
ISO9001
-
Length:
-
Adjustable
-
Size:
-
210/225/240/250
-
Thickness:
-
1.0mm-1.8mm
-
Package:
-
packed by steel strip
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects, Cross Categories Consolidation
-
Application:
-
Hotel
-
Design Style:
-
Industrial
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ADTO
-
Model Number:
-
ADTO STEEL PLANK
-
Surface:
-
pre-galvanized
-
Processing:
-
antiskip and Perforated
-
Support:
-
plain/box stiffener
-
Certification:
-
ISO9001
-
Length:
-
Adjustable
-
Size:
-
210/225/240/250
-
Thickness:
-
1.0mm-1.8mm
-
Package:
-
packed by steel strip

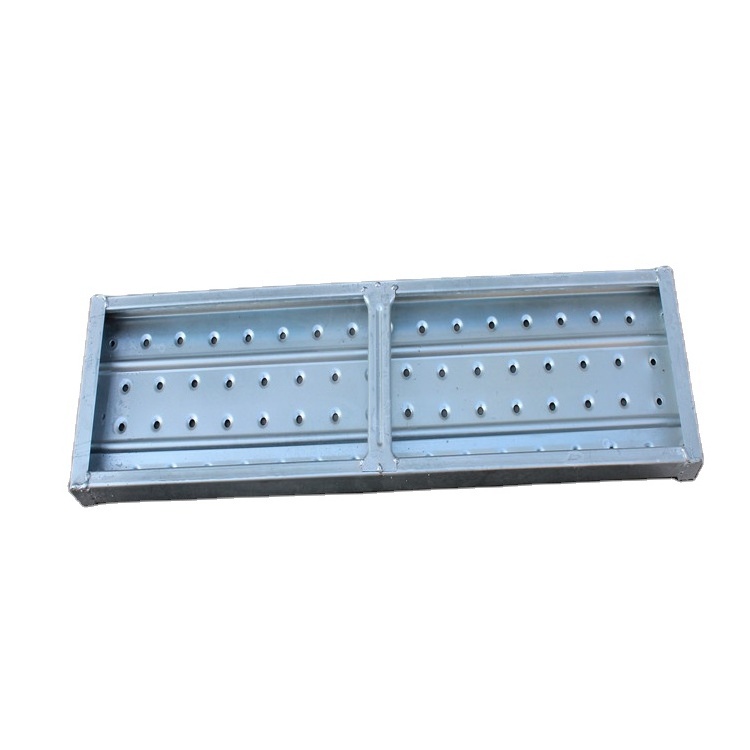

Q345 scaffolding material perforated steel plank, steel plank scaffolding walking board
Specifications
1) A larger capacity
When the scaffolding geometry and structure is compliant with the relevant requirements, the general single-tube column scaffold bears capacity of up to 15kN ~ 35kN (1.5tf ~ 3.5tf, design value).
2) Easy disassembly, erection and flexible
Easy to adjust the length of the tube, fastener connection is simple, and thus can adapt to all kinds of plane, elevation of buildings and structures with the scaffold.
3) To compare the economy
Processing is simple, a relatively low investment costs; if well-designed scaffolding geometry, focus on improving working capital utilization rate of steel, the material consumption can be achieved better economic results. Fastening steel frame construction steel per square meter equivalent to about 15 kg.
Details
|
Size (mm) |
Weight (kg/pc) |
Size (mm) |
Weight (kg/pc) |
|
WALK BOARDS |
CATWALK |
||
|
210 x 45 x 1.2 x 4000 |
13.60 |
500 x 50 x 1.2 x 1829 |
15.50 |
|
210 x 45 x 1.2 x 3000 |
10.26 |
480 x 45 x 1.2 x 1829 |
13.50 |
|
210 x 45 x 1.2 x 2000 |
6.93 |
450 x 45 x 1.2 x 1829 |
13.00 |
|
210 x 45 x 1.2 x 1000 |
3.59 |
450 x 38 x 1.2 x 1829 |
12.50 |
|
240 x 45 x 1.2 x 4000 |
14.87 |
420 x 45 x 1.2 x 1829 |
12.50 |
|
240 x 45 x 1.2 x 3000 |
11.23 |
500 x 50 x 1.2 x 1219 |
11.00 |
|
240 x 45 x 1.2 x 2000 |
7.59 |
480 x 45 x 1.2 x 1219 |
10.00 |
|
240 x 45 x 1.2 x 1000 |
3.94 |
450 x 45 x 1.2 x 1219 |
9.50 |
|
250 x 50 x 1.2 x 4000 |
15.67 |
450 x 38 x 1.2 x 1219 |
9.00 |
|
250 x 50 x 1.2 x 3000 |
11.84 |
420 x 45 x 1.2 x 1219 |
9.00 |
|
250 x 50 x 1.2 x 2000 |
8.00 |
330 x 50 x 1.2 x 1829 |
11.50 |
|
250 x 50 x 1.2 x 1000 |
4.15 |
330 x 50 x 1.2 x 1219 |
8.50 |
|
GALVANIZED SCAFFOLDING PIPE |
SCAFFOLDING COUPLER |
||
|
48.3 x 4.0 x 6000 |
26.22 |
Double Coupler |
Swivel Coupler |
|
48.3 x 3.6 x 6000 |
23.81 |
Sleeve Coupler |
Inner Joint Pin |
|
48.3 x 3.2 x 6000 |
21.35 |
Putlog Coupler |
Girder Coupler |
|
48.3 x 3.0 x 6000 |
20.11 |
Limpet Coupler |
Ladder Clamp |
|
48.6 x 2.4 x 6000 |
16.41 |
Steel Prop |
Base Jack |
Product Showing
Application of Steel Plank
