Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KELEVER or OEM
-
Model Number:
-
HP00038
-
Product name:
-
Explosion Proof Button
-
Material:
-
Polyamide
-
Mounting Hole Size:
-
30mm
-
Operation type:
-
Latching
-
Head shape:
-
Flat Round
-
Application:
-
Zone 1 and Zone 2
-
Mechanical life:
-
1000000 Times
-
Standard:
-
IEC60079 EN60079
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP66
-
Max. Current:
-
16A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KELEVER or OEM
-
Model Number:
-
HP00038
-
Product name:
-
Explosion Proof Button
-
Material:
-
Polyamide
-
Mounting Hole Size:
-
30mm
-
Operation type:
-
Latching
-
Head shape:
-
Flat Round
-
Application:
-
Zone 1 and Zone 2
-
Mechanical life:
-
1000000 Times
-
Standard:
-
IEC60079 EN60079
-
Certification:
-
CE
Product Description

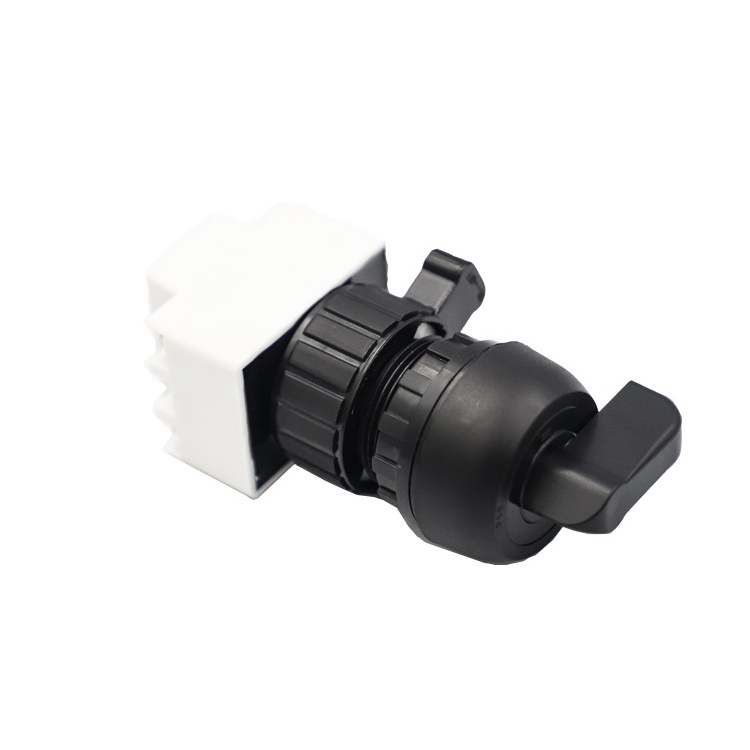

2Positon 3Postion Atex Explosion-proof and anti-corrosion selector switch
Applications
1.It is suitable for zone 1 and zone 2 of explosive gas environment and IIA, IIb and IIC explosive gas environment;
2.It is suitable for 20, zone 21 and zone 22 of combustible dust environment;
2.It is suitable for 20, zone 21 and zone 22 of combustible dust environment;
3.Suitable for T1-T6 temperature group;
4.It iswidely used in oil exploitation, oil refining, chemical industry, military industry and other dangerous environments, offshore oilplatforms, oil tankers and other places.
Characteristic
Characteristic
1. The shell is made of high-quality imported engineering plastics by injection molding;
2. Internal springanti-aging treatment, link screws and elastic pad to resist vibration and relax special design;
3. The opening diameter is 30mm,and the installation thickness is 1-6mm, which is specially designed for explosive environment.
Specifications
Specifications
|
Product name
|
Explosion-proof and anti-corrosion button switch
|
|
Ex mark
|
Ex Ⅱ2G Ex de ⅡC
|
|
Material
|
Polyamide
|
|
Application
|
Zone 1 and Zone 2,Zone21 and Zone22
|
|
Mounting Hole Size
|
30mm
|
|
Head shape
|
Flat Round
|
|
Operation type
|
Momentary/Latching
|
|
Mechanical life
|
1000000 Times
|
|
Standard
|
IEC60079 EN60079
|
Model and Size
