Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
XM
-
Model Number:
-
IVG-G6S-20X
-
APP:
-
ICsee App
-
IR Distance:
-
10m
-
Technology:
-
NetWork P2P
-
Power Supply:
-
DC 12V
-
Night vision:
-
Auto IR-CUT
-
Video Compression:
-
H. 265
-
Connectivity:
-
Network Wired
-
Resolution:
-
3MP
-
Lens:
-
4.7mm -94.06mm
Quick Details
-
Special Features:
-
Face detection, NIGHT VISION, Motion Detection
-
Function:
-
NIGHT VISION
-
Customized support:
-
OEM, ODM
-
Place of Origin:
-
China
-
Brand Name:
-
XM
-
Model Number:
-
IVG-G6S-20X
-
APP:
-
ICsee App
-
IR Distance:
-
10m
-
Technology:
-
NetWork P2P
-
Power Supply:
-
DC 12V
-
Night vision:
-
Auto IR-CUT
-
Video Compression:
-
H. 265
-
Connectivity:
-
Network Wired
-
Resolution:
-
3MP
-
Lens:
-
4.7mm -94.06mm
Product Usage
Product Overview

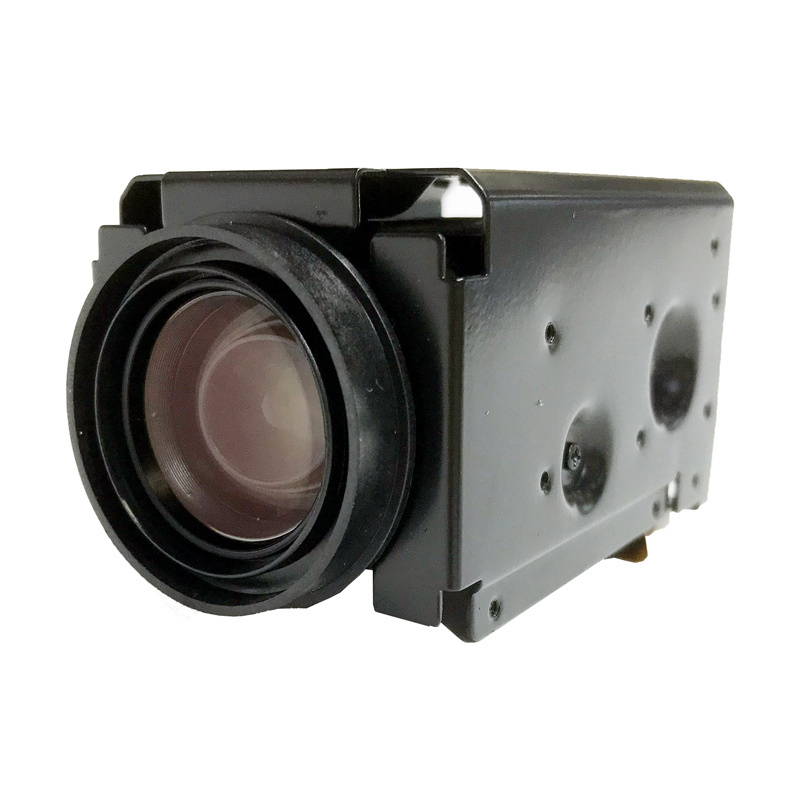

SONY starlight high performance CMOS sensor Optical zoom 20X,
f=4.7mm -94.06mm
Auto gather, auto exposal, auto white balance etc...
Support auto iris, electronic shutter, IR-CUT filter switch, apply for different environments
Auto gather, auto exposal, auto white balance etc...
Support auto iris, electronic shutter, IR-CUT filter switch, apply for different environments
|
Model
|
IVG-G6S-20X
|
|
Sensor
|
1/2.8" SONY CMOS
IMX335
|
|
Video Standard
|
PAL/NTSC
|
|
Image output
|
6MP 3072*2048@20fps
|
|
Min. Illumination
|
Color: 0.0001Lux@F1.6, B/W: 0.0001Lux@F1.6
|
|
Electronic Shutter
|
1/1 ~ 1/30000s
|
|
Day/Night
|
Support IR-CUT
|
|
Scan System
|
Row by row
|
|
Synchronous
|
Internal synchronous
|
|
Video Output
|
Digital signal (Y/Cb/Cr 4:2:2 via LVDS)
|
|
S/N Ratio
|
>50dB
|
|
Iris Control
|
Auto
|
|
Backlight compensation
|
Open/Close
|
|
White Balance
|
Auto
|
|
Slow Shutter
|
Support
|
|
Slow Exposal
|
Support
|
|
Exposal Mode
|
Auto
|
|
Privacy Masking
|
Support
|
|
WDR
|
Support
|
|
Gain Setting
|
Support
|
|
Menu
|
Flip / Mirror
|
|
Gain Control
|
Auto
|
|
Sharpness Adjustment
|
Support
|
|
Focusing
|
Auto/Manual/One-time auto-focus
|
|
Noise Reduction Level
|
0/1/2/3/4/5
|
|
Zoom Speed
|
2S
|
|
Focus Control
|
Manual/Auto
|
|
Lens Initialization
|
Built-in
|
|
Optical Zoom
|
20X, 4.7 to 94.06mm（F1.6 to F2.7）
|
|
Min.Focus distance
|
100mm ~1000mm (Close focus ~ Far focus)
|
|
Digital Zoom
|
0x
|
|
Horizontal Angle of View
|
Level: 55.4~2.90
|
|
Network
|
1*RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc...
|
|
Function
|
Support WEB config, OSD, real-time video transfer, record and pop up by motion detect and alarm I/O, download/playback, JPEG snapshot, CMS, MYEYE and SDK for second development
|
|
Storage Environment
|
（-20°C ~+70°C/20﹪to 95﹪RH）
|
|
Working Environment
|
（-10°C ~ +60°C/20﹪ to 80﹪RH）
|
|
Power Supply
|
DC 9V-12V(suggest 12V)
|
|
Power Consumption
|
MAX:6W
|
|
Dimension(mm)
|
87.5mm x 50mm x 60mm
|
|
Weight
|
286g
|
Packing&Shipping
1.Focused module--contains
'IVG-G6S Module' + 'IR-cut' + '4.7-94.06mm Lens' without cable
2.with 12V cable--contains one focused module + 1PCS 12V Cable
2.with 12V cable--contains one focused module + 1PCS 12V Cable
Product Description
20X Digital Zoom
If you need view more details, press and hold the screen with both hands to Zoom in/out and see more details, digital zoom is photo zoom instead of optical zoom.
Motion Detection & E-mail Alert
You can set up the area you want to control. When it is triggered, it will send message to your email.
You can get the first hand information, no matter when and where you are.
You can get the first hand information, no matter when and where you are.
Ai Humanoid Detection
Smart Ai Detection function, support mixing line, area, two-way flow detection, for human form, easy setting in App.
The Camera could distinguish human beings and other things in distance about 7 meters, it will just only push alarm on the phone when it detects human in human detection mode. And in normal Motion detection mode, it could detect any movement.
The Camera could distinguish human beings and other things in distance about 7 meters, it will just only push alarm on the phone when it detects human in human detection mode. And in normal Motion detection mode, it could detect any movement.
Face Detection
Note: The camera can only be used with our NVR for face detection function.
P2P Remote Access/Multi-User
Share the same Vision with your families , let all of you protect and pay more attention to your house. P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet.
