Quick Details
-
Brand Name:
-
FRONT
-
Model Number:
-
FN- C20
-
Model:
-
FN-C20
-
Brand:
-
FRONT
-
Max binding length:
-
340mm
-
Max Binding thickness:
-
60mm
-
mechanical running speed:
-
200-300 books/h
-
display:
-
4.3" Touch screen
-
power:
-
220v(110v)50hz(60hz),1.9kw
-
machine weight:
-
220kgs
-
measurement:
-
1000*590*1300
Quick Details
-
Type:
-
Glue Binding Machine
-
Power:
-
Electricity
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FRONT
-
Model Number:
-
FN- C20
-
Model:
-
FN-C20
-
Brand:
-
FRONT
-
Max binding length:
-
340mm
-
Max Binding thickness:
-
60mm
-
mechanical running speed:
-
200-300 books/h
-
display:
-
4.3" Touch screen
-
power:
-
220v(110v)50hz(60hz),1.9kw
-
machine weight:
-
220kgs
-
measurement:
-
1000*590*1300

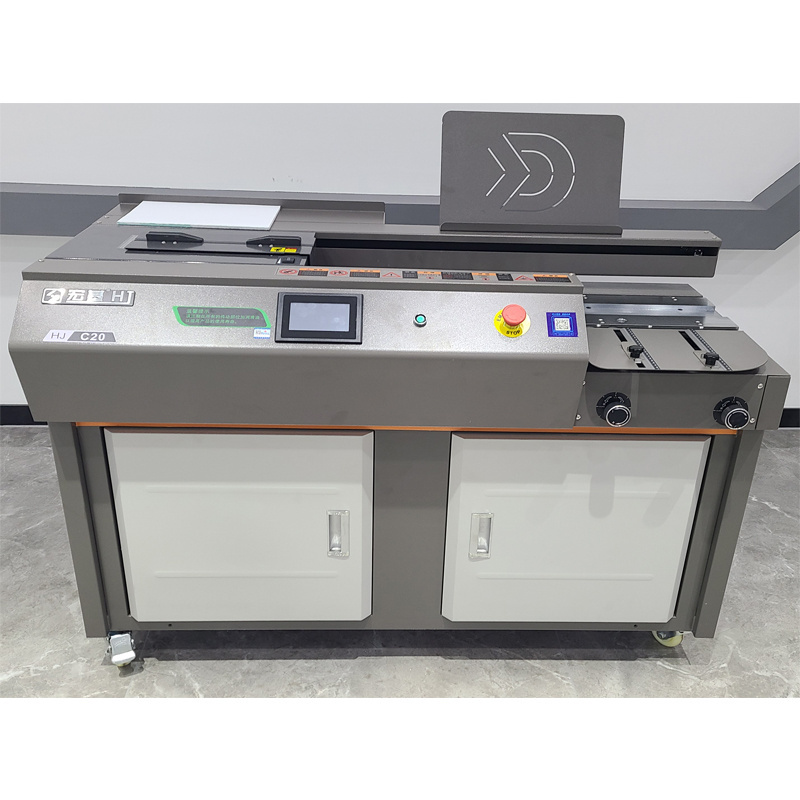

C20-Low price and high quality perfect binding machine
Main features:
1. Strengthen the overall frame structure, all solid steel frame structure, more robust and durable
2. The new patented side glue technology, the glue binding effect is more perfect
3. Enlarged cast aluminum glue tank, double glue wheel gluing structure, suitable for batch glue assembly
4. 12-tooth tungsten steel sun milling cutter, matched with two slotting cutters, more durable
5. Digital control technology for external adjustment of the clamping table
Clear and intuitive digital display, adjust the spine shaping effect
6. Step up structural patent technology
Vertical lifting gear, rack-and-pinion clamping surface structure, good plastic binding book shape
7. Book block and cover adjustment structure
Align and adjust the inner pages of the book and the cover, which is convenient and quick
8. Industrial aesthetic appearance design, classic fashion appearance patent
Product Description
|
Model
|
C20
|
C50
|
C70
|
||
|
Max Length(mm)
|
340（A4）
|
340(A4)
|
420(A3)
|
||
|
Max thinckness(mm)
|
60
|
60
|
60
|
||
|
Speed(book/hr)
|
200-300
|
200~300
|
200~300
|
||
|
Warming up(min)
|
25
|
25
|
25
|
||
|
Gluing Roller
|
1 rubber wheel
|
1 rubber wheel
|
1 rubber wheel
|
||
|
Side Gluing
|
YES
|
YES
|
YES
|
||
|
Display
|
4.3"Touch Screen
Auto thickness measurement
|
7"Touch Screen
Auto thickness measurement
|
7"Touch Screen
Auto thickness measurement
|
||
|
Fume extractor
|
NO
|
NO
|
NO
|
||
|
Clamp table digital display
|
YES
|
YES
|
YES
|
||
|
|
|
|
|
||
|
Voltage
|
220(110V) 50HZ(60HZ)
|
|
|
||
|
Power(W)
|
1.9KW
|
1.9KW
|
1.9KW
|
||
|
Machine Size (mm)
|
1000x590x1300
|
1000x590x1300
|
1000x590x1650
|
||
|
N.W: (Kg)
|
220
|
230
|
280
|
||
Packing & Delivery
FAQ
Q1: Are you a manufacturer ?
Yes.We are a professional manufacture of paper cutter and glue binder for 20 years.
Q2: Can you custom voltage?
Yes,we can do 220V 50HZ,220V 60HZ,110V 60HZ for all the machine.
And 380V 50HZ for hydraulic cutter.
Q3:What's your package?
Export non-fumigation wodden case
Q4:How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc
Q5:What's the delivery time?
Within 15 days after get the payment
Yes.We are a professional manufacture of paper cutter and glue binder for 20 years.
Q2: Can you custom voltage?
Yes,we can do 220V 50HZ,220V 60HZ,110V 60HZ for all the machine.
And 380V 50HZ for hydraulic cutter.
Q3:What's your package?
Export non-fumigation wodden case
Q4:How do you ship the finished products?
By Sea
By Plane
By courier, TNT , DHL, Fedex, UPS Etc
Q5:What's the delivery time?
Within 15 days after get the payment
Q6: Is your machine warranted?
Our machine is guaranteed for 13 months, and if there is any problem with the machine during the warranty period, we will provide after-sales service.
Our machine is guaranteed for 13 months, and if there is any problem with the machine during the warranty period, we will provide after-sales service.
