3X5X1/2 XPS Tile Backer Board Insulation Thermal Panel

3X5X1/2 XPS Tile Backer Board Insulation Thermal Panel

FOB Reference Price: Get Latest Price

≥2 Pieces

US $3.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: zhejiang

Brand Name:: TYCO

Model Number:: TYCO-XTB

compressive strength:: more than 300KPA

Material:: xps foam board+fiberglass mesh+cement

Thickness:: 6mm/10mm/12mm/20mm/30mm/50mm

Certificate:: CE,ISO,SINTEF

brand:: TYCO OR OEM

Colors:: Blue&Black&Others

Width:: 600-1220mm

Temperature Range:: 0 ~ 75 Degree

Advantage:: waterproof,fireproof,insulation

Quick Details

Project Solution Capability:: graphic design, total solution for projects, Others

Application:: Office Building

Design Style:: Modern

Place of Origin:: zhejiang

Brand Name:: TYCO

Model Number:: TYCO-XTB

compressive strength:: more than 300KPA

Material:: xps foam board+fiberglass mesh+cement

Thickness:: 6mm/10mm/12mm/20mm/30mm/50mm

Certificate:: CE,ISO,SINTEF

brand:: TYCO OR OEM

Colors:: Blue&Black&Others

Width:: 600-1220mm

Temperature Range:: 0 ~ 75 Degree

Advantage:: waterproof,fireproof,insulation

Details Images

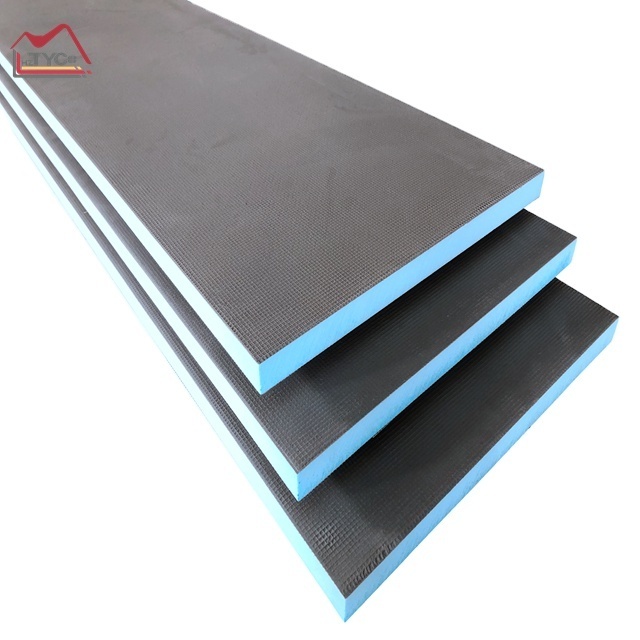

XPS TILE BACKER BOARD

They are widely used in the under floor heating system as a structural tile backer boards. Wet Room Tile Backer Board also can be used in the floor, wall and ceiling by acting as a very efficient moisture and thermal barrier.

Characteristics:

* Waterproof and dimensionally stable
* Low weight, one board(1200*600*10mm) is around 1.8KG
* Easy to cut(by knife or Saw)
* Excellent for wet rooms
* Excellent sound insulation(12mm board, 20 db)
* Environment friendly(free of CFC and HCFC)
* Easy to be tiled

Technical Data:

Raw Material	xps foam board,fiberglass mesh,cement coating
Density	32~35kg/cubic meter
Compressive strenght	250-700kpa
Thermal conductivity	0.028~0.03W/M*K
Color	grey surface,blue inside
Function	heat insulation, waterproof, fireproof, soundproof
Package	carton/pallet
Delivery time	10-30 days after deposit

Available Sizes:

Lenght	width	thickness
2440	600mm	10/12/20/30/40/50mm
2440	1220	10/12/20/30/40/50mm
3'	5'	1/2''/1''/1 1/2''
4'	8'	1''1 1/2''
Other sizes could be produced accordingly
