Quick Details
-
Product name:
-
Ultrasonic Generator
-
Keyword:
-
Ultrasonic Cleaning Generator
-
Power:
-
2400W
-
Frequency:
-
20khz to 40khz Adjust
-
Input Voltage:
-
110V/120V/220V/230V240V Optional
-
Application:
-
Industrial Ultrasonic Cleaning Machine
-
(50W/60W) Transducers Matched QTY:
-
40-48pcs
-
Usage:
-
Ultrasonic Wave Vibration Generator
-
Model:
-
OKS-UCG2400
Quick Details
-
Weight (KG):
-
15
-
Place of Origin:
-
Beijing
-
Brand Name:
-
OKSULTRASONIC
-
Product name:
-
Ultrasonic Generator
-
Keyword:
-
Ultrasonic Cleaning Generator
-
Power:
-
2400W
-
Frequency:
-
20khz to 40khz Adjust
-
Input Voltage:
-
110V/120V/220V/230V240V Optional
-
Application:
-
Industrial Ultrasonic Cleaning Machine
-
(50W/60W) Transducers Matched QTY:
-
40-48pcs
-
Usage:
-
Ultrasonic Wave Vibration Generator
-
Model:
-
OKS-UCG2400

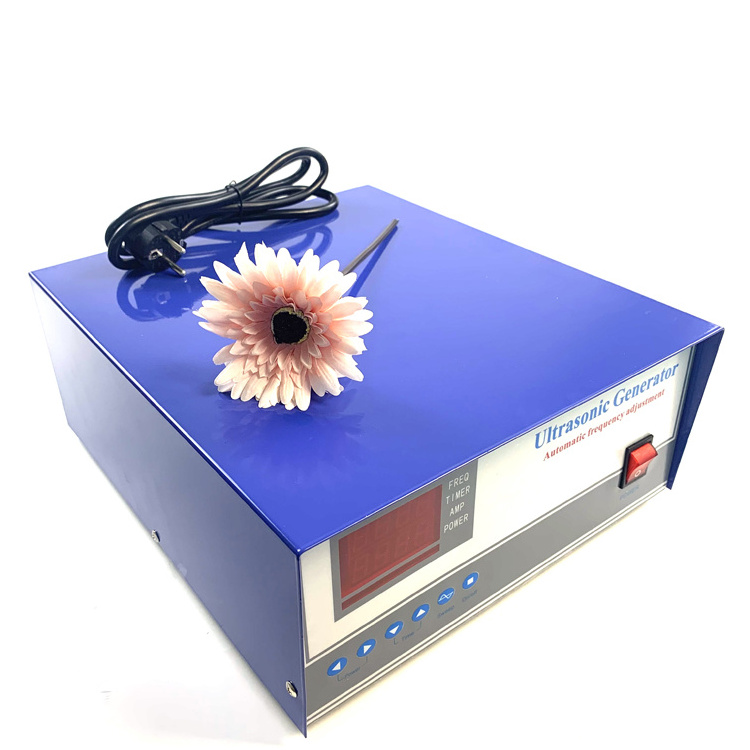

28KHZ or 40KHZ 2400W High Quality Ultrasonic Sound Generator For Submersible Ultrasonic Transducer Pack
Large function ultrasonic generator, digital display ultrasonic generator. New type, power from 0 to 3000 watts, power adjustable, frequency from 20kHz to 40KHz adjustable ultrasonic generator. The ultrasonic generator can be shared by different transducers. Reasonable structure, moisture-proof, anti impact, anti burning tube, simple operation. Never used an ultrasonic cleaning machine, people who don't know the frequency and power
As long as people have a little electrician knowledge, they will. With the development of modern electronic technology, especially microprocessor (up) and signal processor (DSP), the function of ultrasonic generator is more and more powerful.
Before leaving the factory, the ultrasonic generator will adjust the frequency and the corresponding basic current according to the customer's requirements. In principle, the customer does not need to adjust it. However, in some cases, it is affected by the external environment such as environmental humidity, tank water depth, and tank water temperature. You still need to adjust the current appropriately. At this time, you can pick up the phone and our technicians will assist you to get it done. It can be done with simple operations.
The ultrasonic generator produced by our company can be replaced free of charge within three months if there is a problem, the warranty is one year, and technical support services are provided. The price is good and the quality is high, with many years of production experience, mature technology, and thoughtful maintenance services. Ultrasonic generator frequency range: 20khz-28khz-40khz-68khz-80khz-120khz, etc., power range 50w-3000w, welcome to buy.
1. Ultrasonic generator is the core component of ultrasonic cleaning system, which is essential.
2. The shell color of ultrasonic generator is white.
3. Ultrasonic generator (with shell) power range: small 300W, large 3000W, of which 300w-3000w range can be optional.
4. The frequency of the ultrasonic generator is adjustable, but it needs to be adjusted by opening the casing; the power is adjustable, timing and frequency sweeping.
5. After replacing the generator of any vibration system, it is necessary to turn on the debugging. The debugging method is simple and can be operated under the guidance. What is not debugged is not necessarily effective.
Frequency range of ultrasonic generator:
The frequency is 20kHz / 28kHz / 40KHz, that is, the frequency in the range of 20khz-45khz can be adjusted on one computer. 68khz-80khz-120khz and other high frequency machine, generally need a separate generator to achieve, please consult our company for details.
Large power range:
300w-3000w, single ultrasonic generator, high power 3000W, with 50 60W vibrator.
Ultrasonic generators can meet a variety of precision cleaning requirements in the industrial field. Whether it is connected to the cleaning tank alone or used in a large automatic cleaning line, it can provide fast, uniform and high-quality cleaning results. The generator can have 5 frequency options.
Its distinctive features are:
1.Dust-proof structure assembly, lower environmental requirements
2.Imported power devices, strong output signal
3. With frequency sweep function, ultrasonic cavitation is uniform
4Stable output frequency, fast recovery from disturbance
|
Type |
Ultrasonic power( W ) |
Frequency (Khz)
|
(50W/60W) Transducers Matched QTY |
(100W) Transducers Matched QTY |
Input Voltage |
|
OKS-UCG PCB -50 |
50 |
28khz/40khz (fixed one of them) |
1 |
Not recommended |
110V/120V/220V/230V240V Optional |
|
OKS-UCG PCB 100 |
100 |
28khz/40khz(choose one of them) |
2 |
Not recommended |
110V/120V/220V/230V240V Optional |
|
OKS-UCG PCB 150 |
150 |
28khz/40khz( choose one of them) |
3 |
Not recommended |
110V/120V/220V/230V240V Optional |
|
OKS-UCG PCB 200 |
200 |
20khz to 40khz Adjust |
4-5 |
2 |
110V/120V/220V/230V240V Optional |
|
OKS-UCG PCB 300 |
300 |
20khz to 40khz Adjust |
5-6 |
3 |
110V/120V/220V/230V240V Optional |
|
OKS-UCG PCB 400 |
400 |
20khz to 40khz Adjust |
7-8 |
4 |
110V/120V/220V/230V240V Optional |
|
OKS-UCG PCB 500 |
500 |
20khz to 40khz Adjust |
8-10 |
5 |
110V/120V/220V/230V240V Optional |
|
OKS-UCG PCB 600 |
600 |
20khz to 40khz Adjust |
10-12 |
6 |
110V/120V/220V/230V240V Optional |
|
OKS- UCG 300 |
300 |
20khz to 40khz Adjust |
5-6 |
3 |
110V/120V/220V/230V240V Optional |
|
OKS- UCG 600 |
600 |
20khz to 40khz Adjust |
10-12 |
6 |
110V/120V/220V/230V240V Optional |
|
OKS- UCG 900 |
900 |
20khz to 40khz Adjust |
15-18 |
9 |
110V/120V/220V/230V240V Optional |
|
OKS - UCG 1000 |
1000 |
20khz to 40khz Adjust |
16-20 |
10 |
110V/120V/220V/230V240V Optional |
|
OKS- UCG 1200 |
1200 |
20khz to 40khz Adjust |
20-24 |
12 |
110V/120V/220V/230V240V Optional |
|
OKS- UCG 1500 |
1500 |
20khz to 40khz Adjust |
25-30 |
15 |
110V/120V/220V/230V240V Optional |
|
OKS- UCG 1800 |
1800 |
20khz to 40khz Adjust |
30-36 |
18 |
110V/120V/220V/230V240V Optional |
|
OKS-UCG 20 00 |
2000 |
20khz to 40khz Adjust |
33-40 |
20 |
110V/120V/220V/230V240V Optional |
28KHZ or 40KHZ 2400W High Quality Ultrasonic Sound Generator For Submersible Ultrasonic Transducer Pack
