Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HTMC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1800x820x2380
-
Power (kW):
-
2.2
-
Weight (KG):
-
1500 KG
-
Marketing Type:
-
Hot Product 2020
Quick Details
-
type:
-

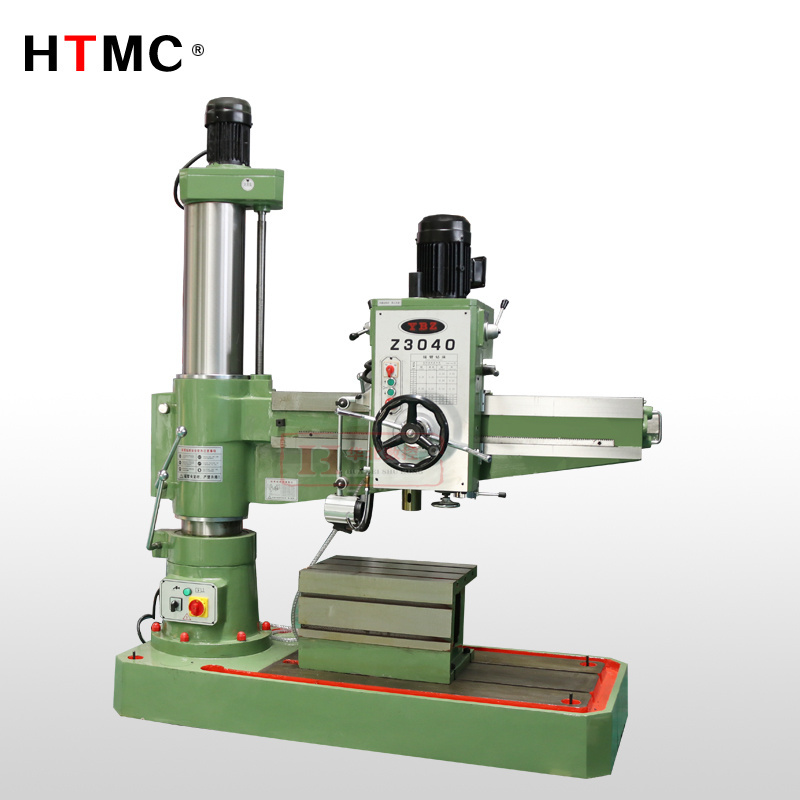

Radial Drilling Machine
-
Max. Drilling Dia. (mm):
-
40
-
Range of Spindle Speed(r.p.m):
-
75 - 1100 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HTMC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1800x820x2380
-
Power (kW):
-
2.2
-
Weight (KG):
-
1500 KG
-
Marketing Type:
-
Hot Product 2020
|
Model |
Unit |
ZQ3040X10 |
|
Very large borehole diameter |
mm |
Castiron40 Stellparts32 |
|
Main shaft to column bus |
mm |
1000 |
|
Horizontal moving distance of headstock |
mm |
650 |
|
Spindle end face to base working face |
mm |
1050~260 |
|
Spindle stroke |
mm |
200 |
|
Spindel cone hole |
|
MOSHI 4 |
|
Spindel speed (level 6) |
r/min |
75,135,240,350,590,1100 |
|
The spindel feed rate is 3 levels |
n |
0.10 0.16 0.25 |
|
Swing arm rotation angle |
. |
360 |
|
Main motor power |
kw |
2.2 |
|
Lifting motor power |
kw |
1.1 |
|
Weight |
kg |
1500 |
|
Overall size of main engine |
mm |
1800x820x2380 |
Standard attachment
|
1 |
Radial drilling machine |
1 Set |
|
2 |
Square box worktable |
1 Piece |
|
3 |
Drill chuck |
1 Piece |
|
4 |
Reducing sleeve |
1 Piece |
|
5 |
Retracting iron |
1 Piece |
|
6 |
Instructions |
1 Book |
|
7 |
Certificate |
1 Page |
