Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-5700K, 3000K/4000K/5000K/5700K
-
Lifespan (hours):
-
100000
-
Product Weight（kg）:
-
4.7
-
Type:
-
under canopy light
-
Wattage:
-
120W
-
Lamp Luminous Flux(lm):
-
19200
-
Brand Name:
-
ZGSM
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
120
-
Input Voltage(V):
-
100-277V
-
CRI (Ra>):
-
70
-
Product Name:
-

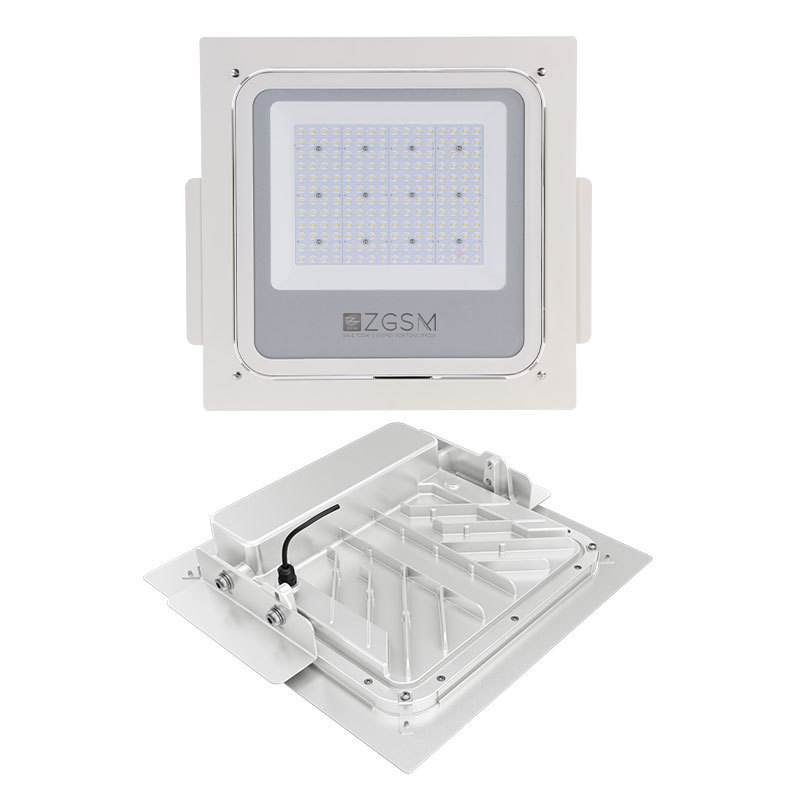

Surface Mounted Led Canopy Light
-
Power:
-
80W/100W/120W/150W
-
LED Chip:
-
Lumileds 3030
-
LED Driver:
-
Inventronics
-
Installation:
-
Surface mounting /Recessed mounting /Bracket mounting
-
Keyword:
-
Explosive-proof Canopy Light Fixtures
-
Certification:
-
CE ROHS ATEX
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Light Source:
-
LED
-
Application:
-
HotelTheme ParkSports StadiumsGardenLighting Contr, Gas Station .Parking Garage . Supermarket
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-5700K, 3000K/4000K/5000K/5700K
-
Lifespan (hours):
-
100000
-
Product Weight（kg）:
-
4.7
-
Type:
-
under canopy light
-
Wattage:
-
120W
-
Lamp Luminous Flux(lm):
-
19200
-
Brand Name:
-
ZGSM
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
120
-
Input Voltage(V):
-
100-277V
-
CRI (Ra>):
-
70
-
Product Name:
-
Surface Mounted Led Canopy Light
-
Power:
-
80W/100W/120W/150W
-
LED Chip:
-
Lumileds 3030
-
LED Driver:
-
Inventronics
-
Installation:
-
Surface mounting /Recessed mounting /Bracket mounting
-
Keyword:
-
Explosive-proof Canopy Light Fixtures
-
Certification:
-
CE ROHS ATEX
Products Description
|
Model No
|
ZGSM-GS04-80
|
ZGSM-GS04-100
|
ZGSM-GS04-120
|
ZGSM-GS04-150
|
|||
|
Nominal Wattage
|
80W
|
100W
|
120W
|
150W
|
|||
|
Efficiency(±5%)
|
165 lm /w
|
160 lm /w
|
160lm /w
|
155 lm /w
|
|||
|
Lumen(±5%)
|
13200 lm
|
16000 lm
|
19200 lm
|
23250 lm
|
|||
|
Nominal Voltage
|
AC 100-240V /277V | 50 /60Hz
|
|
|
|
|||
|
LED
|
Lumileds
|
|
|
|
|||
|
Driver
|
Inventronics (Default) /Other brands on request
|
|
|
|
|||
|
Power Factor (PF)
|
>0.95
|
|
|
|
|||
|
THD
|
＜15
|
|
|
|
|||
|
SPD
|
10KV (Build-in Driver) /Extra 10KV SPD (Available on request)
|
|
|
|
|||
|
Optics
|
60°, 90° or 120°
|
|
|
|
|||
|
Standard Deviation of Color Matching
|
＜5 SDCM
|
|
|
|
|||
|
CRI
|
Ra>70 (Default) /Ra>80
|
|
|
|
|||
|
CCT
|
3000K, 4000K, 5000K, 5700K
|
|
|
|
|||
|
Body Material
|
High pressure die-cast aluminum
|
|
|
|
|||
|
Housing Color
|
White
|
|
|
|
|||
|
Cover Material
|
Tempered glass
|
|
|
|
|||
|
Lens Material
|
UV-resistant Polycarbonate
|
|
|
|
|||
|
Working Environment
|
-40°C ~ +50°C, 10%～90%RH
|
|
|
|
|||
|
Lifespan L70 at 25 °C
|
>100, 000 h
|
|
|
|
|||
|
Mounting Type
|
Surface mounting /Recessed mounting /Bracket mounting
|
|
|
|
|||
|
Mounting Location
|
Wall /Ceiling
|
|
|
|
|||
|
Dimmable
|
1-10V Dimming (Default) /Timer Dimming
|
|
|
|
|||
|
Protection Class
|
Class I (Default) /Class II
|
|
|
|
|||
|
Standards
|
CE, RoHS, CB, LM79, LM80, TM-21, ATEX, IP66, IK10
|
|
|
|
|||
|
Available on request
|
Motion sensor, NTC, OLC, DALI Dimming
|
|
|
|
|||
