Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TOPS
-
Model Number:
-
E6013,E7018,E6010,E6011,E7016
-
Operating Current:
-
40-240
-
Application:
-
welding low-carbon
-
Product Name:
-
best prices of 6013,7018 and stainless steel 316 welding electrodes
-
Usages:
-
Welding Tool
-
Model:
-
AWS E6011 E6013 E7018
-
Certification:
-
ISO9001
-
Color:
-
Gray Green
-
Type:
-
Welding Electrode E6013 7018
-
Standard:
-
AWS A5.12
-
Packing:
-
5kg/box
-
Keyword:
-
6013 Welding Electrode
-
Advantage:
-
Easy Restrike Arc
Quick Details
-
Material:
-
STEEL ALLOY
-
Welding Current:
-
40-70,50-80,80-120
-
Operating Temperature:
-
2700
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TOPS
-
Model Number:
-
E6013,E7018,E6010,E6011,E7016
-
Operating Current:
-
40-240
-
Application:
-
welding low-carbon
-
Product Name:
-
best prices of 6013,7018 and stainless steel 316 welding electrodes
-
Usages:
-
Welding Tool
-
Model:
-
AWS E6011 E6013 E7018
-
Certification:
-
ISO9001
-
Color:
-
Gray Green
-
Type:
-
Welding Electrode E6013 7018
-
Standard:
-
AWS A5.12
-
Packing:
-
5kg/box
-
Keyword:
-
6013 Welding Electrode
-
Advantage:
-
Easy Restrike Arc

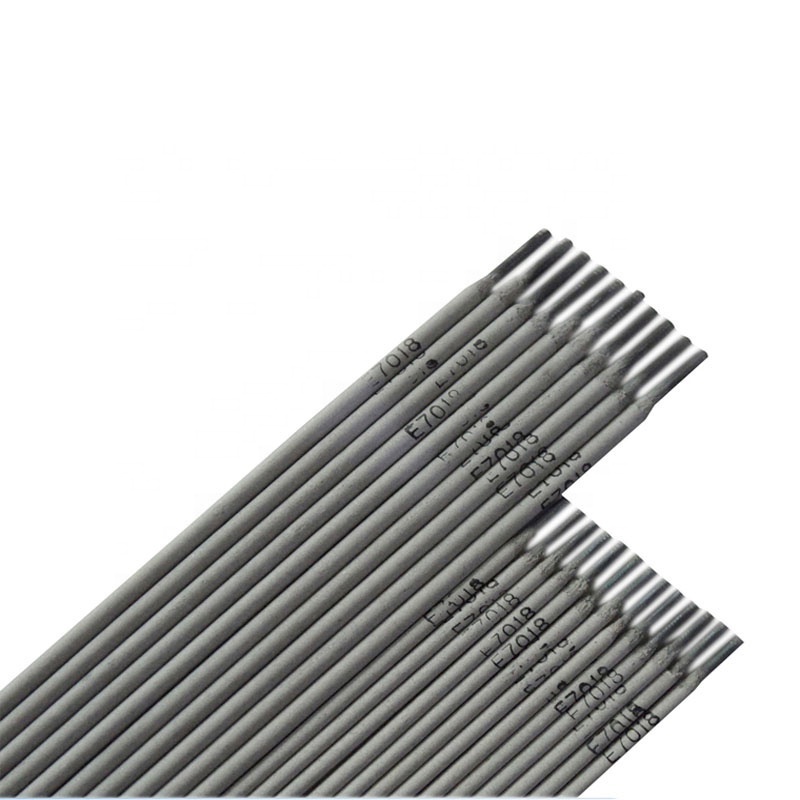

Best prices of 6013,7018 and stainless steel 316 welding electrodes with deferents sizes
Remark:the price always change,before you decide order,please contact me.
Description:
AWS E6013 is a low-carbon steel electrode with a high titaniume coating and can be used on AC. or DC . It has excellent welding technological properties . The arc is stable . The spatter is small. The slag viscosity is moderate. It can be used freely . The slag is easy to clean . The welded seam is smooth and fine and easy to restrike the arc.
Application:
Suitable for welding sheet metal structure made of low-carbon steel , such as ships, vehicles, building, and general machinery.
Detail package is following:
WELDING ELECTRODES STANDARD: AWS E6013
Size: 2.5MM X 300MM
Size: 3.2MM X 350MM
Size: 4.0MM X 400MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
ADVANTAGE
• All-position electrode for the welding of mild steel.
• Excellent choice for sheet metal lap and fillet welds.
• Easy restrike and easy slag removal.
•Manufactured under a quality system certified to ISO 9001 requirements.
Chemical Composition of Wire(%):
| C | Mn | Si | S | P |
| ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
| Test Item | σ b (MPa) | σ c (MPa) | δ s (%) | AKV(J) |
| Guarantee Value | ≥420 | ≥330 | ≥17 | - |
Recommended Welding Current:
| Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Current Range(A) | 40-70 | 50-80 | 80-120 | 150-190 | 180-240 |
