Quick Details
-
Color:
-
Red
-
Driving type:
-
4X4
-
Wheel base:
-
2088
-
Tyre spec., front /rear:
-
8.3-24/14.9-30
-
Steering Type:
-
Hydraulic Steering
-
Brake:
-
Oil immersed, disk type
-
Bore x stroke (mm):
-
110x135
-
Engine Model:
-
SL2108DKT-1
Quick Details
-
Brand Name:
-
CHINA
-
Place of Origin:
-
Shanghai, China
-
Engine Brand:
-
CHINA
-
Color:
-
Red
-
Driving type:
-
4X4
-
Wheel base:
-
2088
-
Tyre spec., front /rear:
-
8.3-24/14.9-30
-
Steering Type:
-
Hydraulic Steering
-
Brake:
-
Oil immersed, disk type
-
Bore x stroke (mm):
-
110x135
-
Engine Model:
-
SL2108DKT-1

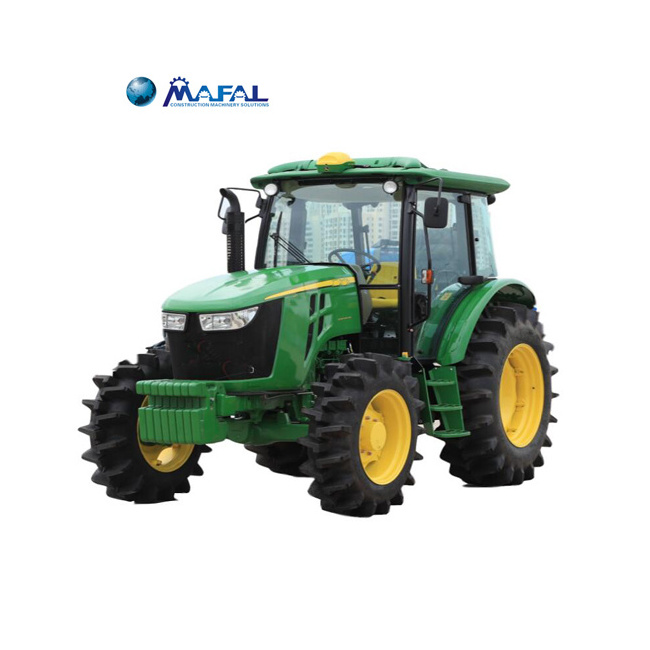

New and old John 4x4 compact tractor with loader and backhoe
The John Dee tractor is equipped with a variable power automatic converter and double-action clutches. It is directly started by electricity. Its hydraulic system has a multipurpose three-valve distributor, which provides hydraulic power output both in the front and in the rear. Besides, it is furnished with a steering hydraulic booster and a re-amounted independent PTO device with double standard rotational speed. The driver’s major cab is fully sealed and vibration-absorbing, and at customer’s demand, an air conditioner can be installed. The tractor can be used together with many kinds of farm machinery and implements, such as plowing, raking, planting, rotational plowing, and harvesting mechanisms. It can also become a bulldozer by installing a push-type blade. Besides, Optional parts such as protection frame and ridge can be supplied on the demand of the customers.
|
Features |
|
cylin d e r ,water-cooled,turbo-charged,air-air inter - cooler |
|
Rated power |
kw |
SL2108DKT-3,35hp |
|
Rated speed |
r/min |
2200 |
|
Displacement |
cc |
4400 |
|
Transmission System |
||
|
clutch |
|
12-inch,dry,double-action,independent control |
|
Gears(Forward/Reverse) |
|
12/4 |
|
Range of speed(Front) |
km/h |
2.34-30.55 |
|
Range of speed(Rear) |
km/h |
5.04-14.27 |
|
Overall Dimension |
||
|
Wheelbase |
mm |
2688.5 |
|
Front tread |
mm |
1200-1500 |
|
Rear tread |
mm |
1262-1662 |
|
Min ground clearance |
mm |
465 |
|
Steering radius |
m |
7.0 |
|
Min operable mass |
kg |
4600 |
|
Standard tire size |
inch |
5.00-35/11.2-24 |
|
Lifting force(taken 610mm behind the lower suspension point) |
kN |
28 |
|
PTO power |
kw/s |
19/108 |
|
Rated PTO revolution speed |
r/min |
540/1000 |
|
Tilling depth control method |
|
Integrated draft and position control and float contro l |
|
Rated traction force |
kN |
6 |
|
Electrical system voltage |
V |
12 |
|
Overall Dimension (LXWXH) |
mm |
2800×1530×2060 |
