Quick Details
-
Place of Origin:
-
CHINA
-
Cab seats:
-
2+4
-
Tyre No.:
-
6
-
Water tank volume:
-
5000L
-
Dimensions:
-
8430*2500*3660
-
POWER:
-
190
-
Transmission:
-
6 forward gear, 1reverse
-
Displacement(ml):
-
5193
-
Tyre specification:
-
9.00-20
-
Axle No.:
-
2
-
Drive type:
-
4*2
Quick Details
-
Drive Wheel:
-
4X2
-
Condition:
-
New
-
Emission Standard:
-
Euro 4
-
Place of Origin:
-
CHINA
-
Cab seats:
-
2+4
-
Tyre No.:
-
6
-
Water tank volume:
-
5000L
-
Dimensions:
-
8430*2500*3660
-
POWER:
-
190
-
Transmission:
-
6 forward gear, 1reverse
-
Displacement(ml):
-
5193
-
Tyre specification:
-
9.00-20
-
Axle No.:
-
2
-
Drive type:
-
4*2
|
Product model and name |

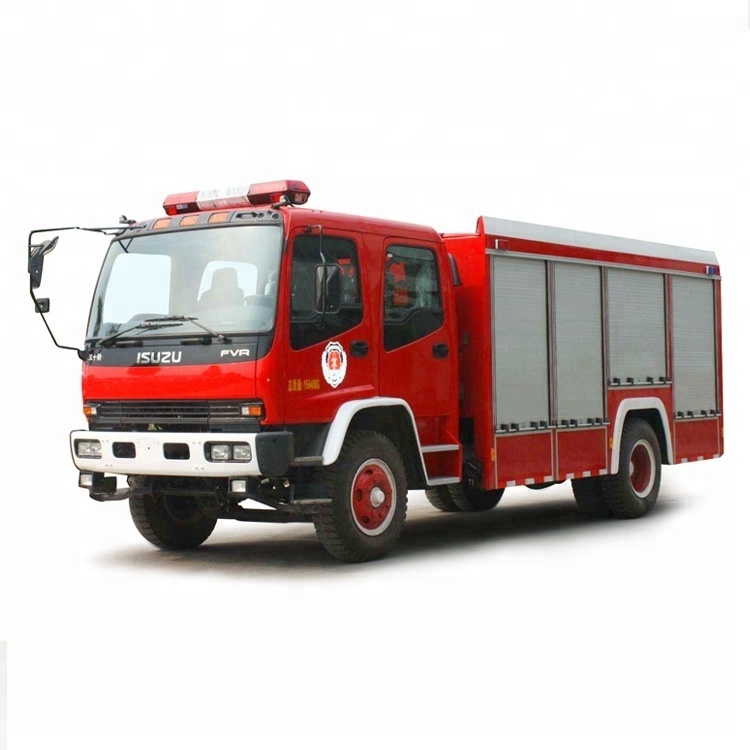

JDF5152GXFPM60/A Foam Fire Truck |
|
|
Gross weight(Kg) |
Payload(Kg) |
Curb weight(Kg) |
|
14950 |
6100 |
8400 |
|
Overall dimension(mm) |
Cab seats |
Drive type |
|
8430×2500×3660 |
2+4 |
4x2 |
|
Wheelbase(mm) |
Max speed(Km/h) |
Axle No. |
|
4700 |
85 |
2 |
|
Chassis model |
Tyre specification |
Tyre No. |
|
QL11609AFRY |
9.00-20 |
6 |
|
Fuel type |
Emission standard |
Transmission |
|
Diesel |
Euro 4 |
6 forward gear, 1reverse |
|
Engine model |
Displacement(ml) |
Horsepower(HP) |
|
4HK1-TCG40 |
5193 |
190 |
|
Cab |
double row.cab can be tippable forwardly with power steering,Air condition and central locking, electric Windows and USB sound with radio. |
|
|
Foam and powder fire truck performance |
||
|
Water tank volume |
Foam tank volume |
Fire monitor |
|
5000L |
1000L |
Model:PL32. |
|
water and foam tank dual purpose fire monitor. |
Foam range:≥50m/1.0MPa |
Water range:≥55m/1.0MPa |
|
Fire pump |
Model: CB10/40. Flow rate:40L/S. Pressure: 1.0MPa. Water pump drive type: sandwich type power take-off Water and powder tank combination fire truck can spray water and powder at the same time.Adopted the independent passengers room and has 6 seats.Both dry powder and valves are made by stainless steel.This truck can be used to put out all kinds of fire,especially applied to save the liquid and gas fire etc.It is the indispensable fire extinguishing equipment for the fire department. |
|
Detail picture
