Quick Details
-
Brand Name:
-
TDER
-
Fork Length:
-
1800mm
-
Fork Width:
-
180mm
-
Overall Dimensions:
-
7400x3000x3400 mm
-
Weight (KG):
-
15000 kg
-
After-sales Service Provided:
-
Overseas third-party support available
-
Color:
-
Yellow
-
Tire:
-
Pneumatic Tire
-
load center:
-
1200 mm
-
Wheel base:
-
2900 mm
-
After Warranty Service:
-
Online support
-
Certification:
-
CE/ISO9001
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Min. Lifting Height:
-
0mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TDER
-
Fork Length:
-
1800mm
-
Fork Width:
-
180mm
-
Overall Dimensions:
-
7400x3000x3400 mm
-
Weight (KG):
-
15000 kg
-
After-sales Service Provided:
-
Overseas third-party support available
-
Color:
-
Yellow
-
Tire:
-
Pneumatic Tire
-
load center:
-
1200 mm
-
Wheel base:
-
2900 mm
-
After Warranty Service:
-
Online support
-
Certification:
-
CE/ISO9001
-
Marketing Type:
-
Ordinary Product
Product parameters
|
model
|
|
unit
|
TDR100
|
TDR150
|
TDR200
|
||||
|
Rated load
|
|
kg
|
10000
|
15000
|
2000
|
||||
|
Load center distance
|
|
mm
|
800
|
800
|
800
|
||||
|
Lifting height
|
|
mm
|
3600
|
3000
|
3000
|
||||
|
Grantry tilt angle(firward/backward)
|
|
°
|
6/12
|
8/10
|
8/10
|
||||
|
Maximum travel speed
|
|
Km/h
|
28
|
28
|
28
|
||||
|
Full load grade
|
|
﹪
|
20
|
≥21
|
≥21
|
||||
|
Self weight
|
|
Kg
|
15000
|
23800
|
26000
|
||||
|
Track(front/rear)
|
|
mm
|
2400/2000
|
2380/2380
|
2380/2380
|
||||
|
Wheelbase
|
|
mm
|
2900
|
3710
|
3710
|
||||
|
Dimension(L*W*H)
|
|
mm
|
7400x3000x3400
|
9700*3040*3350
|
9700*3040*3350
|
||||
|
Full load lifting speed
|
|
mm/s
|
200
|
270
|
270
|
||||
|
Minimum turning radius
|
|
mm
|
5600
|
7800
|
7800
|
||||
|
Minimum ground clearance
|
|
mm
|
330
|
400
|
400
|
||||
|
engine
|
model
|
|
WP6G175E22
|
QSB6.7 T4F
|
6CTA8.3-C240
|
||||
|
|
manufacturer
|
|
Weichai
|
Cummins
|
Cummins
|
||||
|
|
Rated power
|
Kw
|
129kw
|
168kw
|
179kw
|
||||
|
Battery
|
Voltage
|
V
|
24
|
24
|
24
|
||||
|
|
capacity
|
Ah
|
100
|
100*2
|
100*2
|
||||
|
transmission
|
hydraulic torque converter gearbox
|
|
|
|
|
||||
|
Working system
|
Pilot operating system
|
|
|
|
|
||||
|
Tire
|
|
front
|
4*12.00R24
|
2×23.5-25-32PR
|
|
||||
|
|
|
rear
|
2*17.5-25
|
2×23.5-25-24PR
|
|
||||
|
Drive axle
|
40-wheel side deceleration bridge,four-wheel drive,Pneumatic clamp brake
|
|
|
|
|
||||
|
Fork
|
fork positionsers
|
|
|
|
|
||||
|
Cabin
|
cab with sound system, fan
|
|
|
|
|
||||

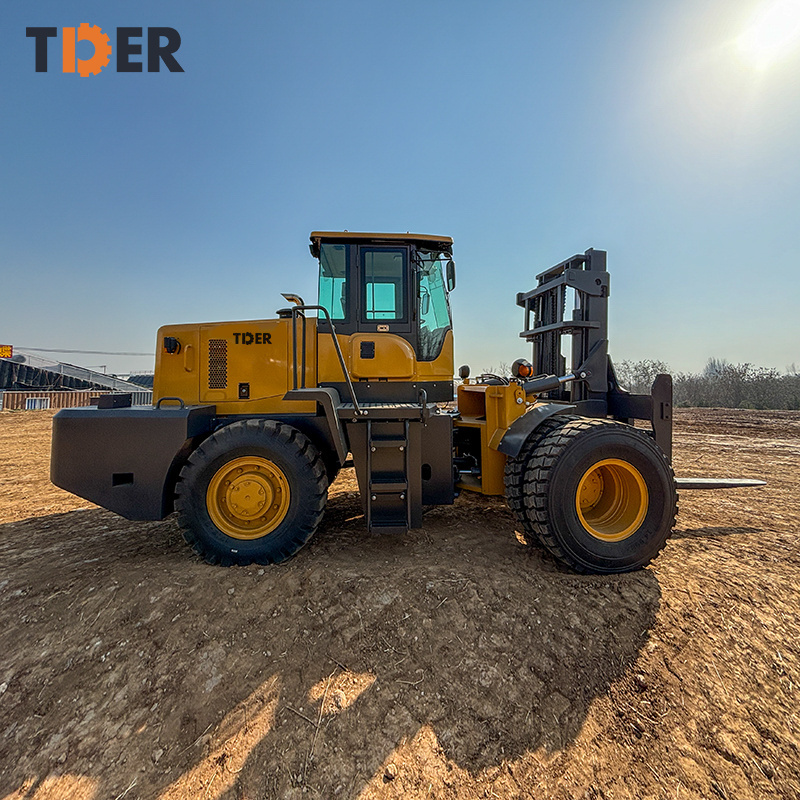

Product details
1. Adopt full hydraulic electronically controlled gearbox, full hydraulic steering and pilot technology to make the whole machine more flexible.
2. Equipped with double-axle four-wheel drive, large traction, safer and more stable.
3. The turning radius of the articulated frame is small.
4 Advanced technology, various accessories can be installed, such as: tire clips, wood grabbers, and many more.
5.The full hydraulic steering system greatly reduces operator fatigue. The horizontal cylinder steering mechanism is adopted, and the structure is reliable and compact.
6.
The vehicle is compact, with harmonious and generous proportions, luxurious professional cab, integral front windshield. Seats that can be adjusted fore and aft and height reduce the driver's fatigue to a great extent.
Product packaging
*A
ll products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing
will be carried out
for the
nude cargo.
*Ropes and triangle blocks will be used for fixing forklifts.
*We also offer wooden packing way to make the forklifts safer.
*
Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certifications
Our Factory
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer feedback
Attachments
TDER provides a variety of forklift attachments, such as paper roll clamp, soft bale clamp, rotator, push pull and so on. You can also send us a request to customize your own attachments.
Spare Parts
Why Choose Us
TDER offers customized services.
You can freely change the color, engine, LOGO and more.
"TDER makes every mechanical gear
customizable
."
