Quick Details
-
Power:
-
0.8KW
-
Min. Lifting Height:
-
1.8M
-
Table Size:
-
1280*760mm
-
Overall Dimensions:
-
1280*760*1800mm
-
Weight:
-
660 kg
-
Product name:
-
Manufacturer Aerial Work Platform
-
Key words:
-
Samll Lift Platform
-
Load capacity:
-
200kg,300kg Manufacturer Aerial Work Platform
-
Lift Drive:
-
Hydraulic and electric
-
Operation way:
-
Ground Control and platform control
-
Material:
-
Q345B Manganese Steel
-
Lifting height:
-
1.8--4.8m for Manufacturer Aerial Work Platform
-
Color:
-
Orange red for Manufacturer Aerial Work Platform
-
Platform size:
-
0.9x0.7m for Manufacturer Aerial Work Platform
-
Origin:
-
China Original
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Welift
-
Power:
-
0.8KW
-
Min. Lifting Height:
-
1.8M
-
Table Size:
-
1280*760mm
-
Overall Dimensions:
-
1280*760*1800mm
-
Weight:
-
660 kg
-
Product name:
-
Manufacturer Aerial Work Platform
-
Key words:
-
Samll Lift Platform
-
Load capacity:
-
200kg,300kg Manufacturer Aerial Work Platform
-
Lift Drive:
-
Hydraulic and electric
-
Operation way:
-
Ground Control and platform control
-
Material:
-
Q345B Manganese Steel
-
Lifting height:
-
1.8--4.8m for Manufacturer Aerial Work Platform
-
Color:
-
Orange red for Manufacturer Aerial Work Platform
-
Platform size:
-
0.9x0.7m for Manufacturer Aerial Work Platform
-
Origin:
-
China Original
Products Description

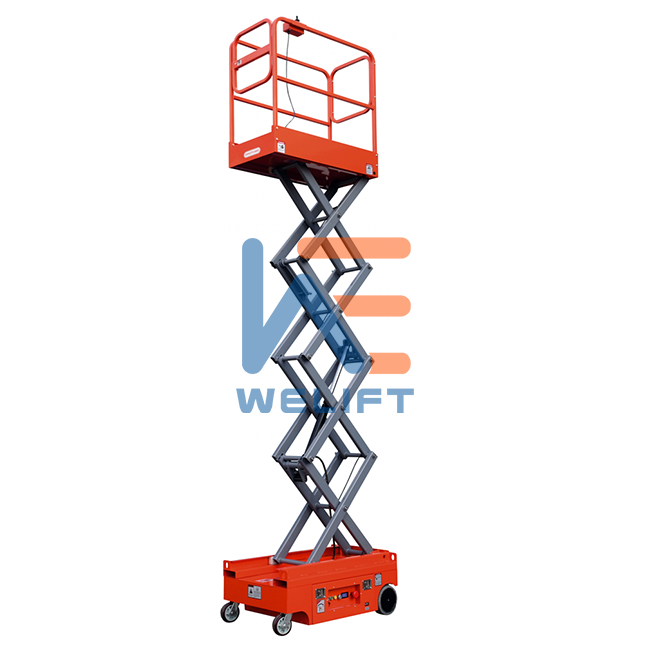

6m 300kg mini battery charger scissor lift self propelled hydraulic scissor lift man lift
6m 300kg mini battery charger scissor lift self propelled hydraulic scissor lift man lift
Mini semi-electric and full-electric scissor lift , load can reach 200kg& 300kg. The lifting height can reach 1.8 meters, 3.0
meters, 3.9 meters, and 4.8 meters etc.
The product has the characteristics of small size, stable structure, low failure rate, reliable operation, safe and efficient,
simple and convenient maintenance, etc., and can easily enter and exit elevators and narrow passages.
meters, 3.9 meters, and 4.8 meters etc.
The product has the characteristics of small size, stable structure, low failure rate, reliable operation, safe and efficient,
simple and convenient maintenance, etc., and can easily enter and exit elevators and narrow passages.
Product Paramenters
|
Specifications
|
GTJZ0.3-1.8
|
GTJZ0.3-3
|
GTJZ0.3-3.9
|
GTJZ0.3-4.8
|
|||
|
Max platform height (mm)
|
1800
|
3000
|
3900
|
4800
|
|||
|
Max working height (mm)
|
3800
|
5000
|
5900
|
6800
|
|||
|
Min distance to the ground (mm)
|
60
|
|
|
|
|||
|
Max load(kg)
|
300/200
|
|
|
|
|||
|
Platform size (mm)
|
1280*760
|
|
|
|
|||
|
Battery (v/Ah)
|
2*12/80
|
|
|
|
|||
|
Charger( v/A)
|
24/18
|
|
|
|
|||
|
Overall Length (mm)
|
1280
|
|
|
|
|||
|
Overall Width (mm)
|
760
|
|
|
|
|||
|
Overall Height (mm)
|
1640
|
1720
|
1800
|
1880
|
|||
|
Overall Net Weight (kg)
|
600
|
630
|
660
|
690
|
|||
|
Driving Wheel size(mm)
|
230x80
|
|
|
|
|||
|
Lifting motor(v/kw)
|
24/0.8
|
|
|
|
|||
|
Driving motor(v/kw)
|
2*24/0.4
|
|
|
|
|||
|
Max driving speed(fall) (km/h)
|
4
|
|
|
|
|||
|
Max drving speed(rise) (km/h)
|
1.5
|
|
|
|
|||
|
Min turning radius(mm)
|
1500
|
|
|
|
|||
|
Max Gradeability (%)
|
15-20
|
|
|
|
|||
4m 6m 5.8m 320kg Battery Power Hydraulic Manlift Mini Electric Lifting Equipment Mini Platform Lifts
Guardrail and extension platform
Control panel
Scissor lift system
Pre-Sale Service
We offer free comprehensive and detailed technology consultancy at construction sites, along with referential programs for construction equipment to help you choose the most suitable product program.
In-Sale Service
During the sale, we provide free guidance for installation and debugging, along with complimentary training on operation, care, and maintenance.
After-Sale Service
You can rely on our after-sales support with a one-year warranty service covering the entire machine, as well as lifetime maintenance. Our dedicated team regularly conducts market visits to assist you with maintenance and repairs.
Quick Responses
Rest assured that we have a complete service network, enabling us to promptly address any issues you may encounter, ensuring a quick resolution.
Parts Supply
We boast a comprehensive parts supply network, ensuring sufficient reserves and timely delivery of parts to keep your equipment running smoothly.
