Quick Details
-
Engine Brand:
-
KAMA
-
Place of Origin:
-
ZHE
-
Brand Name:
-
map
-
Dimension(L*W*H):
-
127*74*108CM
-
Drum diameter:
-
600mm, 426mm
-
Product name:
-
Hydraulic Road Roller
-
Keywords:
-
Drum Roller
-
Fuel type:
-
Diesel
-
Drum size:
-
600*426mm
-
Static line load:
-
45N/CM
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
5.5 KW
-
Weight:
-
0.8 TON
-
Engine Brand:
-
KAMA
-
Place of Origin:
-
ZHE
-
Brand Name:
-
map
-
Dimension(L*W*H):
-
127*74*108CM
-
Drum diameter:
-
600mm, 426mm
-
Product name:
-
Hydraulic Road Roller
-
Keywords:
-
Drum Roller
-
Fuel type:
-
Diesel
-
Drum size:
-
600*426mm
-
Static line load:
-
45N/CM
-
After-sales Service Provided:
-
Video technical support

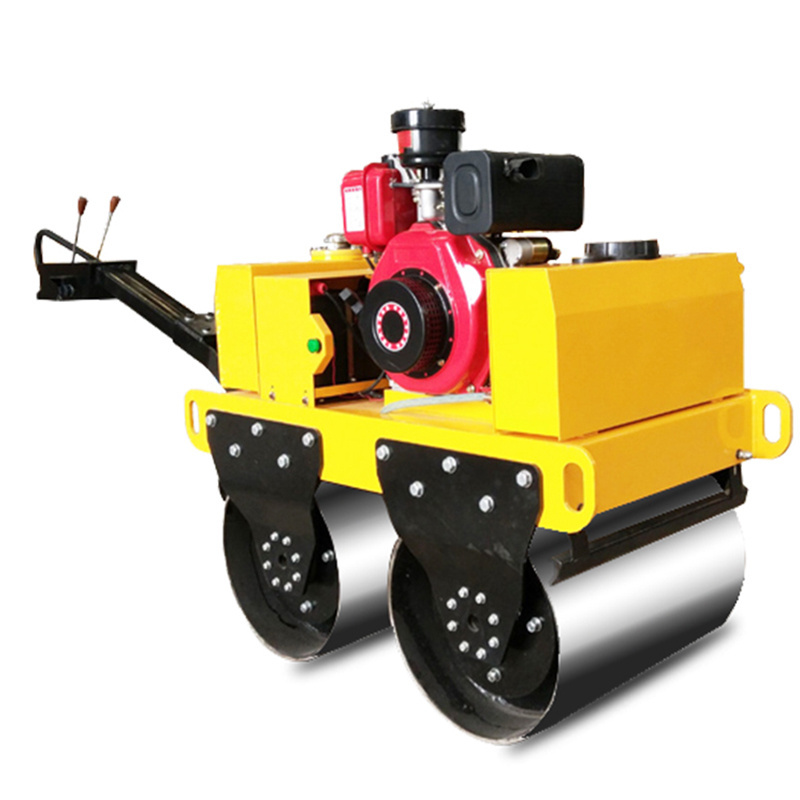

Road roller is used for the maintenance of municipal and highway pacement,and also for the compaction operation of the groove foundation,the pipe ditch backfilling,the construction and square construction,and the roller compacting lawn and so on.
1.The machine is equipped with the brand power,brand-name quality assurance,superior performance,easy to start.
2.The machine is selected of domestic brand-name Hydraulic variable pump and quantitative motor,before and after working ,easy to operate .
3.It has Hydraulic steering,steering light and flexible.
4.It has completed control function,to fully control the machine running at any time.
5.It uses the Japanese-made Nsk(seiko)bearings ,to ensure the machine's performance.
6.It has streamlined body design,more beautiful and generous.
7.The machine's surface is treated by spray.
8. The product has passed CE certification.
| Model | SVH-14 | SVH-30/30C | SVH-700/700C | SVH-50/50C/50CS |
| Weight (KG) | 140 | 330 | 550 | 540/540/570 |
| Packing size(mm) | 1100*550*850 | 1050*850*1200 | 1200*920*1920 | 1600*850*1900 |
| Power(kw) | 4.1 | 4.1/3.1 | 9.7/4.4 | 6.7/4.4/5.7 |
| Fuel capacity(L) | 3.6 | 3.6/1.9 | 6.5/2.7 | 5.9/2.7/6.5 |
| Fuel type | gasoline | gasoline/diesel | gasoline/diesel | gasoline/diesel/diesel |
| The vibration frequency(HZ) | 70 | 70 | 70 | 70 |
| Climbing ability | 30% | 30% | 30% | 30% |
| Speed(KM/h) | 3.8 | 3.8 | 3.8 | 3.8 |
| Linear static pressure(N/CM) | 30 | 45 | 45 | 45 |
| Type | walking single drum roller | walking single drum roller | walking single drum roller | walk-behind dual-drum roller |
| Steel wheel size(mm) | 400×450 | 426×600 | 530×700 | 426×600*2 |
