Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
vatti
-
Model Number:
-
vatc
-
Size:
-
30*410,540*620,2000*1100 or customer demand
-
Color:
-
Transparent, Black
-
Edge:
-
Flat Edge
-
Properties:
-
high heat resistant, high thermal conductivity
-
Packing:
-
Wooden Crates Paper
-
Processing Technology:
-
glass ceramics
-
continuous temperatures:
-
760℃
-
Deep processing:
-
Silkscreen ,Drilling
Quick Details
-
Application:
-
Farmhouse, Office Building, Apartment, Villa
-
Usage:
-
Industrial, Building
-
Thickness:
-
3mm-5mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
vatti
-
Model Number:
-
vatc
-
Size:
-
30*410,540*620,2000*1100 or customer demand
-
Color:
-
Transparent, Black
-
Edge:
-
Flat Edge
-
Properties:
-
high heat resistant, high thermal conductivity
-
Packing:
-
Wooden Crates Paper
-
Processing Technology:
-
glass ceramics
-
continuous temperatures:
-
760℃
-
Deep processing:
-
Silkscreen ,Drilling

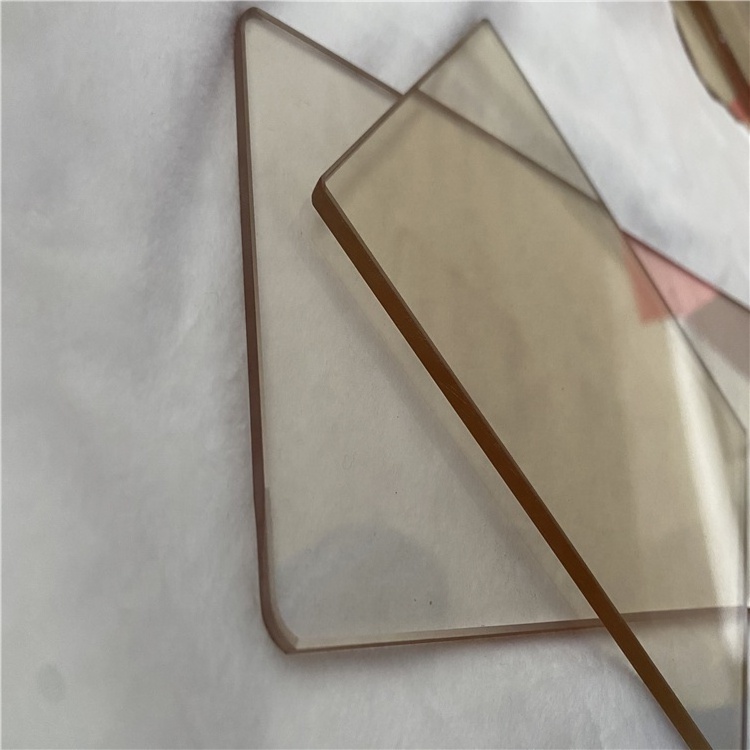

Heat-resistant Transparent Material 3mm 4MM 5MM Fireplace Glass Door, Ceramic Frit Glass:
Specification of ceramic glass
Ceramic Glass is made of a special glass-ceramic, a material with fascinating properties. This glass-ceramic has extraordinary thermal stability and resists thermal shocks of up to +700 degree C. It stands up to everyday wear and tear in the kitchen. The 4mm thick cooktop panel transmits heat very efficiently, with virtually no heat loss.
|
Mechanical Strength |
Density |
Elastic Seeks |
Bending Strength |
|
2.6g/cm³ |
93*103Mpa |
35Mpa |
|
|
Thermodynamic Performance |
Average Coefficient Of Linear Thermal Expansion |
Identical Temperature Difference |
Thermal Shock Resistance |
|
a(20-700°C)=(0±0.5)*10-6/K |
RTD≤760°C |
Tes Max≤760°C No Break |
|
|
Application Temperature and Continuous Operating Time |
Application Temperature |
Continuous Operating Time |
|
|
560°C(1040°F) |
20000H |
||
|
610°C(1130°F) |
9000H |
||
|
660°C(1220°F) |
4500H |
||
|
710°C(1310°F) |
1200H |
||
|
760°C(1400°F) |
500H |
||
|
Chemical Performance |
Acid Resistance |
Alkali Resistance |
|
|
DIN12116 HGB1 |
DIN ISO719 HGB2 |
||
|
Glass Variety |
Transparent Microcrystalline Glass, Dark brown Microcrystalline glass with ball-point. |
||
|
Machinable Shape |
Square, Circle, R-corner and any Irregular Shape |
||
|
Microcrystalline Glass App lication |
Wave Soldering, Microwave Oven, Convection Oven, Electric Radiator, Fireplaces, Induction Cooker Glass Plate. High-Performance Flood Light, Metal Halide Lamp,Infrared Dryer, and Photovoltaic Solar Equipment Shield, etc. |
||
Features:
With continuous temperatures to 700 degrees
High stability and durability
Best security against the dangers of the fire due to an unbeatable temperature resistance
Excellent view of the dancing flames and a cozy feeling of warmth guaranteed by a high transparency
Vision panels for room heaters, glass heaters, glass heating tabletops, and heat preservation board/ panels;
Cover panels for reflectors and high performance floodlights;
Cover panels in drying appliances
Fireplace Glass alway use microcrystalline glass, also called ceramic glass is made of a special glass-ceramic, is an extremely heat-resistant, transparent glass ceramic which can be produced in a wide variety of shapes and sizes to meet your specific needs.
Produce processing :
Raw material→ Melting(under 1700 centigrade) → Shaping → Annealing → Crystallization → Processing → Cutting → Polished → Silkscreen(if needed) → Printing bending(if needed) → Inspecting → Packing
Advantages of ceramic glass
1.Door for fireplace and stove
2.Vision panels for room heaters, glass heaters, glass heating tabletops, and heat preservation board/panels;
3.Cover panels for heating radiators, drying stand, towel heaters;
4.Cover panels for reflectors and high performance floodlights;
5.Cover panels in drying appliances;
6.Cover panels for kebab grill radiators
Packaging :
1,Glass film processing;External wooden packaging, Glass are to be paper or expandable polyethylene pearl Cotton (EPE) packed in strong seaworthy wooden crates.
2.Wooden crates worthy for ocean and land carriage.
Shipping :
1.30% deposit and 70% before shipping, FOB Qingdao Port.
2.Sample Order and small order will ship by DHL, TNT,FEDEX,EMS, and UPS. It will take 7-10 working days since payment arrived.
