Quick Details
-
tube type:
-
flat tube or cone
-
Max yarn diameter:
-
≤220mm
-
oiling way:
-
automatic oiling
-
winding travel:
-
120-230mm
-
winding speed:
-
≤500m/min
-
winding diameter:
-
≤280mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
spindle:
-
4spindle/group
-
friction sticks:
-
tube 80*220
-
tube type:
-
flat tube or cone
-
Max yarn diameter:
-
≤220mm
-
oiling way:
-
automatic oiling
-
winding travel:
-
120-230mm
-
winding speed:
-
≤500m/min
-
winding diameter:
-
≤280mm

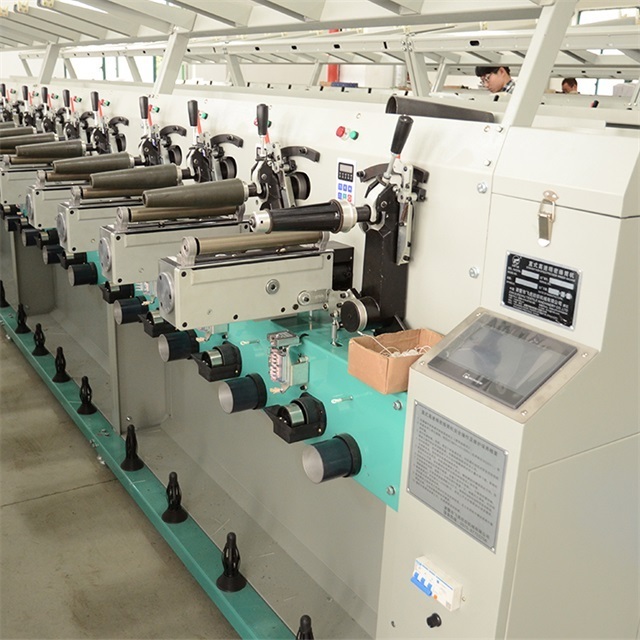

FEIHU China high speed precision winder
This series of high-speed precision winder is applicable to the winding of hank rewinding or rewinding of cotton, hemp, wool, chemical fiber and blended yarn. The machine is single-sided work, sheet metal structure; touch screen centralized control; Yarn forming adopts fully digitized, programmable, high-speed and online tension controllable automatic tracking automatic unwinding electronic yarn forming control system, removing the traditional sense Mechanical structure transmission maintenance is cumbersome and mechanical noise .
|
Product name |
FH-GS High-Speed Precision Winding Machine
|
|
Model |
Single-sided, 4spindles/group, Standard configuration is 60 spindles/set. (Optional)
|
|
Forming method |
E lectronic guide yarn.
|
|
B obbin type |
F lat bobbin or cone(according to sample bobbin of customer.)
|
|
Maximum s ilk billet diameter
|
≤300mm
|
|
Maximum winding range
|
152mm / 190m / 230mm (Optional) |
|
S ingle spindle total power
|
515W |
|
P ower supply |
190-230mm |
|
T wisting traverse |
380V 50HZ three-phase five wire system. (Optional)
|
|
Per group s ize
|
L1770m m X W700 mm X H1560 m Head chamber of machine size: L460mm X W420mm X H1200mm
|
|
Mechanical speed |
Max 1200 m/min(process speed depending on process parameters)
|
|
Oil way
|
Automatic oiling, speed adjustable
|
|
Yarn count range
|
20d--- 10 00d
|
|
Package weight |
U p to 5kg |
|
Yarn type
|
C overed yarn, ordinary filaments, elastic yarns, fine technical yarns etc.
|
