Quick Details
-
Weight:
-
Depending on size
-
Certification:
-
ISO SGS CE CCC BV ASME
-
Voltage:
-
optional
-
Efficiency:
-
85%
-
item:
-
Oil Boiler Furnace / Heat Carrier Oil Boiler for Reaction Tanks
-
color:
-
as your request
-
rated power:
-
470KW
-
Design pressure:
-
0.9Mpa
-
working pressure:
-
0.6Mpa
-
Highest working temperature:
-
320℃
-
circulation:
-
60m3/h
-
Furnace capacity:
-
0.38m3
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUTONG
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
Depending on size
-
Certification:
-
ISO SGS CE CCC BV ASME
-
Voltage:
-
optional
-
Efficiency:
-
85%
-
item:
-
Oil Boiler Furnace / Heat Carrier Oil Boiler for Reaction Tanks
-
color:
-
as your request
-
rated power:
-
470KW
-
Design pressure:
-
0.9Mpa
-
working pressure:
-
0.6Mpa
-
Highest working temperature:
-
320℃
-
circulation:
-
60m3/h
-
Furnace capacity:
-
0.38m3
Chinese Famous Brand
High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.
Big Production Ability
Leading Level R & D Department
Fast Delivery
Experienced Sales Manager
Certificate ISO9001, ASME, ISO14001, SGS, CE, BV
Excellent After-sale Service

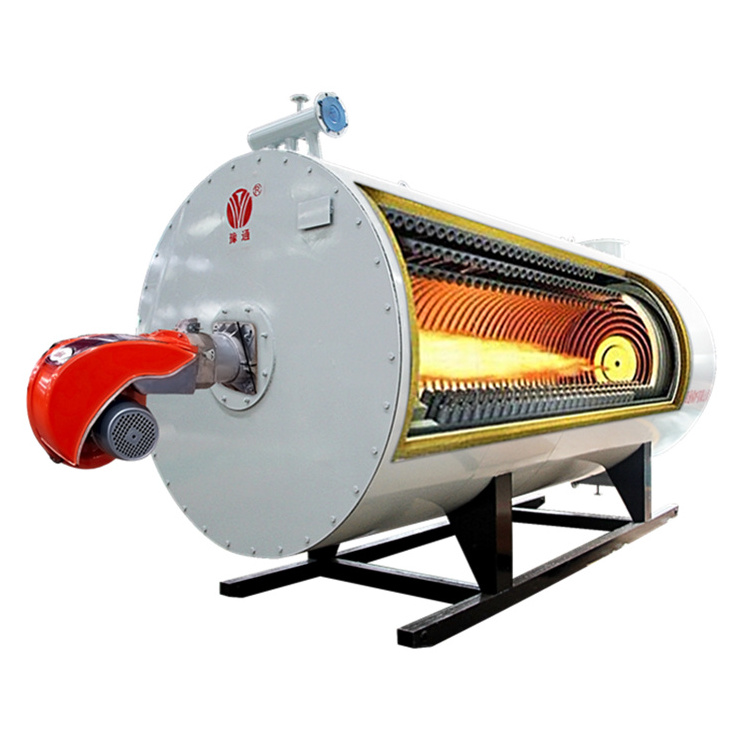

The thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.
This series boiler have advanced program control system, equipped with liquid level controller , pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.
Features of 1400kw 2900kw Oil fired Thermic Oil Boiler Furnace / Heat Carrier Oil Boiler for Reaction Tanks
1. It is convenient to be adjusted, and can supply balanced heat to satisfy the hard work required to precise temperature.
2. Less heat loss, high Thermal Efficiency.
3. Excellent Struture, advanced techniques.
4. Simple operation, serious control.
Technical Parameters of 1400kw 2900kw Oil fired Thermic Oil Boiler Furnace / Heat Carrier Oil Boiler for Reaction Tanks
|
Model |
YYW-120YC |
YYW-230YC |
YYW-350YC |
YYW-470YC |
YYW-700YC |
YYW-930YC |
YYW-1200YC |
|
|
|||||||
|
Item |
|||||||
|
Rated power(KW) |
120 |
230 |
350 |
470 |
700 |
930 |
1200 |
|
Design |
0.9 |
||||||
|
pressure(Mpa) |
|||||||
|
Rated working |
0.6 |
||||||
|
pressure(Mpa) |
|||||||
|
Highest working |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
|
temperature(C) |
|||||||
|
Furnace oil |
0.1 |
0.2 |
0.28 |
0.38 |
0.55 |
0.75 |
1 |
|
volume(m3/h) |
|||||||
|
Circulation oil |
12.5 |
32 |
40 |
60 |
80 |
100 |
100 |
|
volume(m3/h) |
|||||||
|
Pipe connection diameter(DN) |
50 |
65 |
80 |
80 |
100 |
125 |
125 |
|
Thermal Efficiency |
75 |
80 |
85 |
85 |
85 |
85 |
85 |
|
(%) |
|||||||
|
Size (m) |
1.5x1.1x1.4 |
2.0x1.2x1.5 |
2.5x1.3x1.6 |
2.7x1.6x1.9 |
3.1x1.6x1.9 |
3.8x1.7x2.0 |
3.8x1.8x2.1 |
|
Weight (t) |
2 |
2.9 |
3.7 |
4.5 |
4.9 |
5.5 |
6.5 |
The YYW Series gas oil fired thermal oil boiler is transport to Pakistan , 7 big trucks are used for this shipping. Customer uses the boiler for his textile mill.
