Auto dispenser system composed by 6 vibrators and slides systems, weights are delivered on the coating conveyor, and placed
orderly. Machine operation avoids lack of coating due to wheel weights attached to each other, also saves two workers to feed and
place the weights by hand.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Power:
-
26000
-
Dimension(L*W*H):
-
3000x300x70cm
-
Weight:
-
1000kgs
-
Name:
-
Powder coating line
-
Application:
-
Metal Parts
-
Coating material:
-
Epoxy powder
-
Kinds of coating:
-
Epoxy Coatings
-
Spraying method:
-
Automatic Gun Fixed Spraying
-
Advantage:
-
Save Labor Cost
-
Power supply:
-
380V 50Hz 3 Phase
-
Usage:
-
Fe Adhesive weights
Quick Details
-
Machine Type:
-
Powder coating
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XST
-
Voltage:
-
380V
-
Power:
-
26000
-
Dimension(L*W*H):
-
3000x300x70cm
-
Weight:
-
1000kgs
-
Name:
-
Powder coating line
-
Application:
-
Metal Parts
-
Coating material:
-
Epoxy powder
-
Kinds of coating:
-
Epoxy Coatings
-
Spraying method:
-
Automatic Gun Fixed Spraying
-
Advantage:
-
Save Labor Cost
-
Power supply:
-
380V 50Hz 3 Phase
-
Usage:
-
Fe Adhesive weights
Products Description

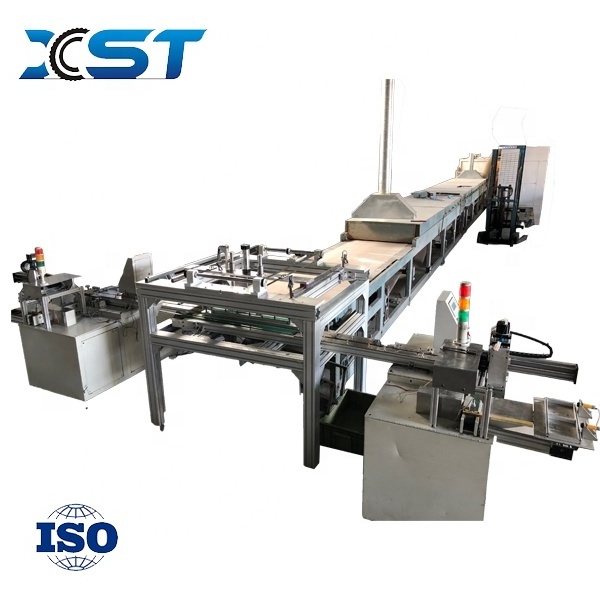

XST-C1600S Full-automatic coating line for Fe adhesive weight
This machine is special designed for manufacturing painted Fe adhesive weight, combines feeding weight buttons, painting, pasting tape, cutting tape and auto box-packing. It is a one-stop production line, wheel weights are pasted on tapes automatically, scratch free, hence the surface is very nice.
Our Advantages
Features of powder coating machine for balance weight:
* One-stop-machine, connects coating, taping and packing.
* Save labor on placing weights on the belt, producing and packing.
Certifications
|
Function
|
|
|
Loading
|
Auto
|
|
- Vibrators
|
YES
|
|
Painting
|
|
|
- Spray
|
Auto
|
|
- vulcanization
|
Auto
|
|
- Temperature Controlling
|
Auto
|
|
Auto taping
|
Auto
|
|
Auto packing
|
Auto
|
|
Estimated production rate(pcs/hr)
|
14boxes
|
|
Power(KW)
|
26
|
|
Label request
|
1 worker
|
|
Dimesion
|
16x4.3x1.6Meters
|
|
Floor space
|
80 Sqm
|
Details Images
Auto-dispenser system
Fe adhesive weight layout and packing system
Fe adhesive weight production line is connected to the coating line. After the weights are coated, they will be pasted on the adhesive tape and packed into box.
