Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MTStar
-
Model Number:
-
ASHH30-B2-022
-
Warranty:
-
1 years, 1 years
-
Product name:
-
HD Color Box Camera
-
Image Sensor:
-
Sony IMX307 CMOS Sensor
-
Effective Pixels:
-
1080P
-
Lens:
-
CS mount lens (2.8-12mm)
-
Camera Type:
-
Box Camera
-
Power Supply:
-
DC 12V
-
Color:
-
White+black
-
Technology:
-
UTC Coax
-
Certification:
-
ce
Quick Details
-
Special Features:
-
Color Mode, CS 2.8-12mm Auto Iris, Banking use camera, Cashing using Camera, AHD , TVI, CVI ,960H switch, Coax UTC function
-
Function:
-
NIGHT VISION
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MTStar
-
Model Number:
-
ASHH30-B2-022
-
Warranty:
-
1 years, 1 years
-
Product name:
-
HD Color Box Camera
-
Image Sensor:
-
Sony IMX307 CMOS Sensor
-
Effective Pixels:
-
1080P
-
Lens:
-
CS mount lens (2.8-12mm)
-
Camera Type:
-
Box Camera
-
Power Supply:
-
DC 12V
-
Color:
-
White+black
-
Technology:
-
UTC Coax
-
Certification:
-
ce
Products Description
Product Parameters
|

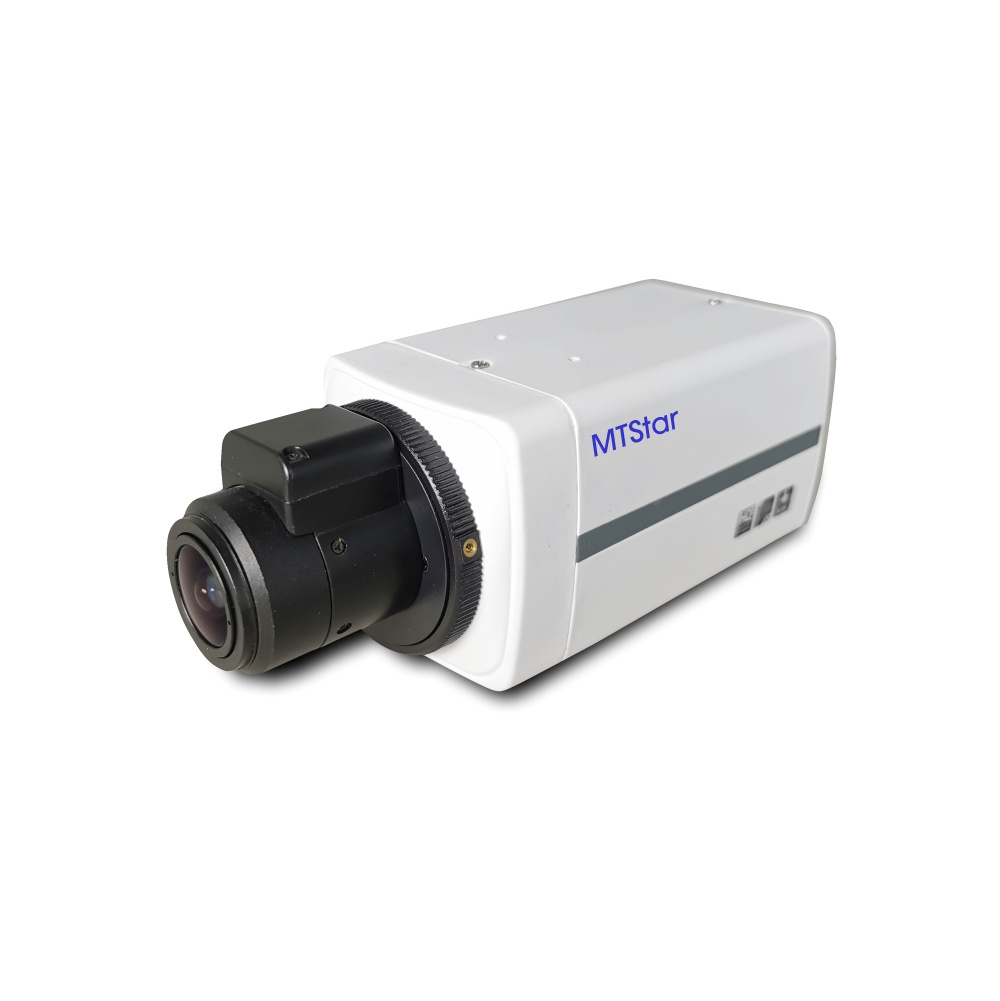

CCTV 2MP 1080P 10X Optical zoom Sony Sensor Surveillance HD SDI Camera WDR 120DB 3D-NR OSD ICR Motion Detection Box Camera
|
|
|
|
|||
|
Model No.
|
ASHH30-B2-22
|
|
|
|||
|
sensor
|
1/2.8" Progressive Scan 1080P 30FPS SONY IMX307 CMOS
|
|
|
|||
|
Resolution
|
Digital: 1920×1080P(30/25fps),
1280x720p(60/50.30/25fps), Analog: 700TVL |
|
|
|||
|
Scanning System
|
Progressive Scan
|
|
|
|||
|
Min-illumination
|
color 0.2 lux , B/W:0.01 lux
|
|
|
|||
|
Video Output
|
HD-AHD, HD-TVI , HD-CVI , 960H
|
|
|
|||
|
S/N Ratio
|
More than 90DB
|
|
|
|||
|
Communication
|
Protocol: Pelco D/P Baud Rate: 2400 to 115,200
|
|
|
|||
|
ACE&WDR
|
Off/Low/Middle/High; WDR SNR: 120Db
|
|
|
|||
|
White Balance
|
White Balance Mode: AWB/MANUAL/PUSH/AWB-EXT
Color Temperature: 1800K to 10000K MANUAL : RED GAIN/BLUE GAIN Adjustable |
|
|
|||
|
DAY&NIGHT
|
MODE: AUTO/DAY/NIGHT/CDS/EXT-H/EXT-L
|
|
|
|||
|
AGC
|
0-10 steps
|
|
|
|||
|
|
Mode: Sharpness/Color Gain/DIS/Gamma
Flip: OFF/H/V/H-V Flip Shading: ON/OF Gamma: LCD/CRT/USER[0.45 to 0.75] |
|
|
|||
|
Backlight
|
Mode: OFF/BLC/WDR/HLC
|
|
|
|||
|
DNR
|
LOW/MIDDLE/HIGH
|
|
|
|||
|
Intelligence MOTION DET
|
ON/OFF
|
|
|
|||
|
DEFOG
|
OFF/1-3
|
|
|
|||
|
IR STROGE SIGNAL
|
Shutter Strobe
|
|
|
|||
|
AE MODE
|
Mode: AUTO(Nomal/Deblur)/MANUAL/Flickeress
AGC LIMIT: 0-10 Shutterpeed(60HzSystem): 1/30,1/60,1/120,1/250,1/700, 1/1000,1/1600,1/2500,1/5000,1/7000,1/10000,1/30000 Shutterpeed(50HzSystem): 1/25, 1/50,1/100,1/250,1/700, 1/1000,1/1600,1/2500,1/5000,1/7000,1/10000,1/30000 Digital Slow Shutter: OFF/X2 to x32 |
|
|
|||
|
Language
|
Chinese/English/Janpanese/Korean
|
|
|
|||
|
Power(Max.) supply
|
DC12V±10%<2.5W(≤170mA)
|
|
|
|||
|
EX-SDI distance
|
BNC 75-3 up to 500m
|
|
|
|||
|
Size
|
60mm*60mm*125mm
|
|
|
|||
