Quick Details
-
Use:
-
FTTX
-
Warranty Time:
-
5 Years
-
Wavelength:
-
1310/1550nm
-
Dynamic Range:
-
22/20dB
-
Measure distances:
-
0-60km
-
Application:
-
fiber optic otdr for ftth fiber testing
-
Type of Fiber:
-
9/125um Single-mode optical fiber
-
Type of Connectors:
-
FC/PC/ (FC/APC Connector can be customized)
-
Peak Value of laser:
-
>=30mW
-
UOM of Measurement:
-
Meter, Feet, Mile
-
Dead Zone of Reflection Event:
-
2m
Quick Details
-
Type:
-
OTDR
-
Model Number:
-
TM290 mini OTDR
-
Place of Origin:
-
Guangdong, China
-
Use:
-
FTTX
-
Warranty Time:
-
5 Years
-
Wavelength:
-
1310/1550nm
-
Dynamic Range:
-
22/20dB
-
Measure distances:
-
0-60km
-
Application:
-
fiber optic otdr for ftth fiber testing
-
Type of Fiber:
-
9/125um Single-mode optical fiber
-
Type of Connectors:
-
FC/PC/ (FC/APC Connector can be customized)
-
Peak Value of laser:
-
>=30mW
-
UOM of Measurement:
-
Meter, Feet, Mile
-
Dead Zone of Reflection Event:
-
2m
Product Description

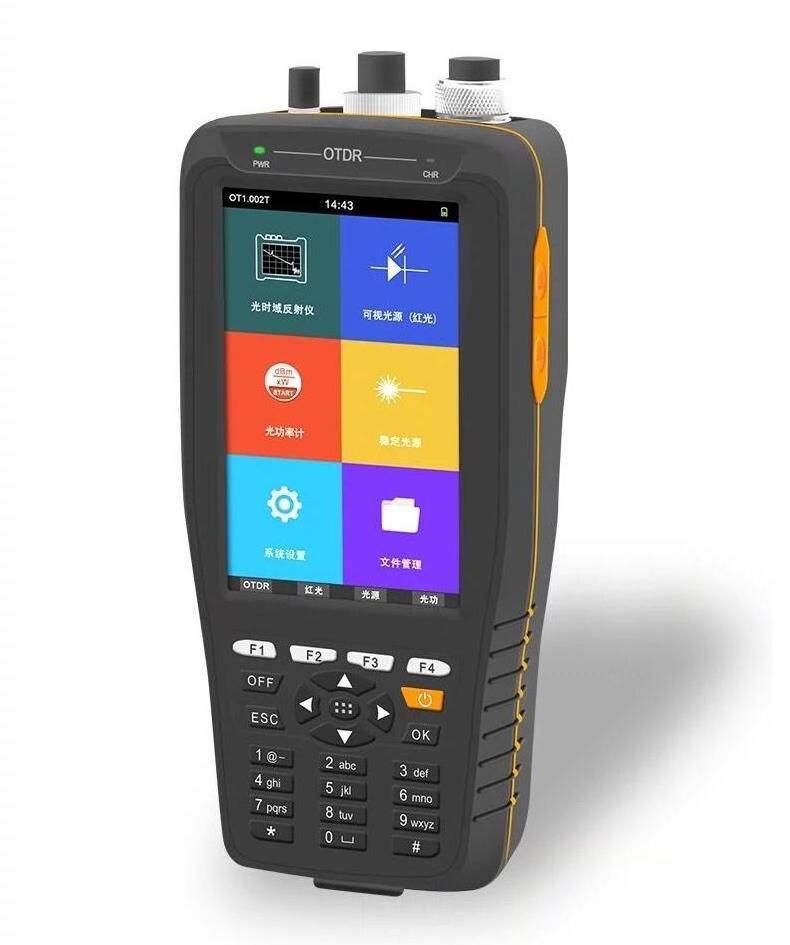

New Touch Screen TM290 Smart OTDR 1310 1550nm TM290 Optical Time Domain Reflectometer
The TM290 mini OTDR is a cutting-edge, handheld OTDR designed for portable fiber fault detection. It excels at rapidly identifying fault locations and fault types in optical fibers, thanks to its advanced OTDR technology and robust software analysis tools.
Simplify your fiber fault detection tasks with the TM290 smart OTDR. It combines portability with performance, providing reliable results in various field conditions. Choose excellence, chooseTM290 mini OTDR for your optical fiber fault detection needs.
Standard accessories
5. Softcase
*1
Optional Accessories
1. SC connector for OTDR Port
2. ST connector for OTDR Port
3. SC/ST Connector for OPM port
Specification
|
item
|
Optical Time Domain Reflectometer
|
|
Model Number
|
TM290 mini OTDR
|
|
Type
|
OTDR
|
|
Place of Origin
|
Guangdong, China
|
|
Use
|
FTTX
|
|
Warranty Time
|
5 Years
|
|
Network
|
Wired LAN, GPRS, wifi, 4g, 3G
|
|
OTDR
|
|
|
Wavelength
|
1310/1550nm
|
|
Dynamic Range
|
22/20dB
|
|
Measure distances
|
0-60km
|
|
Fiber type
|
SM
|
|
Type of Fiber
|
9/125um Single-mode optical fiber
|
|
Type of Connectors
|
FC/PC/ (FC/APC Connector can be customized)
|
|
Peak Value of laser
|
>=30mW
|
|
UOM of Measurement
|
Meter, Feet, Mile
|
|
Dead Zone of Reflection Event
|
2m
|
|
Dead Zone of attenuation Event
|
12m
|
|
Accuracy Distance (Reflection Event)
|
About +_(1m+2 *10(-4)* distance)
|
|
Number of test records saved
|
200
|
|
Power Supply
|
7.4V Li-ion Battery 4400mAH
|
|
Battery working time
|
>=5,000 times of measurements
|
|
Temperature
|
Operate: -5~50, Store: -10~60
|
|
Humidity
|
0~85% (Non-condensing)
|
|
Weight(g)
|
300
|
|
Visual Fault Locator
|
|
|
Wavelength
|
650nm
|
|
VFL Output Power
|
>=10mW
|
|
Mode
|
CW，1Hz，2Hz
|
|
Fiber type
|
SM/MM
|
|
Optical Power Meter
|
|
|
Measurement range dBm
|
-70~+10 dBm/ -50~+26 dBm
|
|
Wavelength range(nm)
|
800~1650
|
|
Calibrated wavelength
|
850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm(other wavelength will be on request)
|
|
Detector
|
InGaAs
|
|
Accuracy
|
<±3% (-10dBm、22°C)
|
|
Resolution
|
Linearity: 0.1%, Non-linearity: 0.01dBm
|
|
connector
|
Changeable FC/PC SC/PC, (ST as Optional)
|
|
Optical Light Source
|
|
|
Emitter
|
FP-LD
|
|
wavelength (nm)
|
1310/1550nm
|
|
Connector
|
FC/PC(SC/ST as optional)
|
|
Output power
|
≥-5dBm
|
|
Output stability(dBm)
|
±0.04@20°C@15min
|
|
Modulation
|
CW/270Hz/1KHz/2KHz
|
|
Fiber type
|
SM
|
Packing & Delivery
Single handheld otdr per gift box
